2.

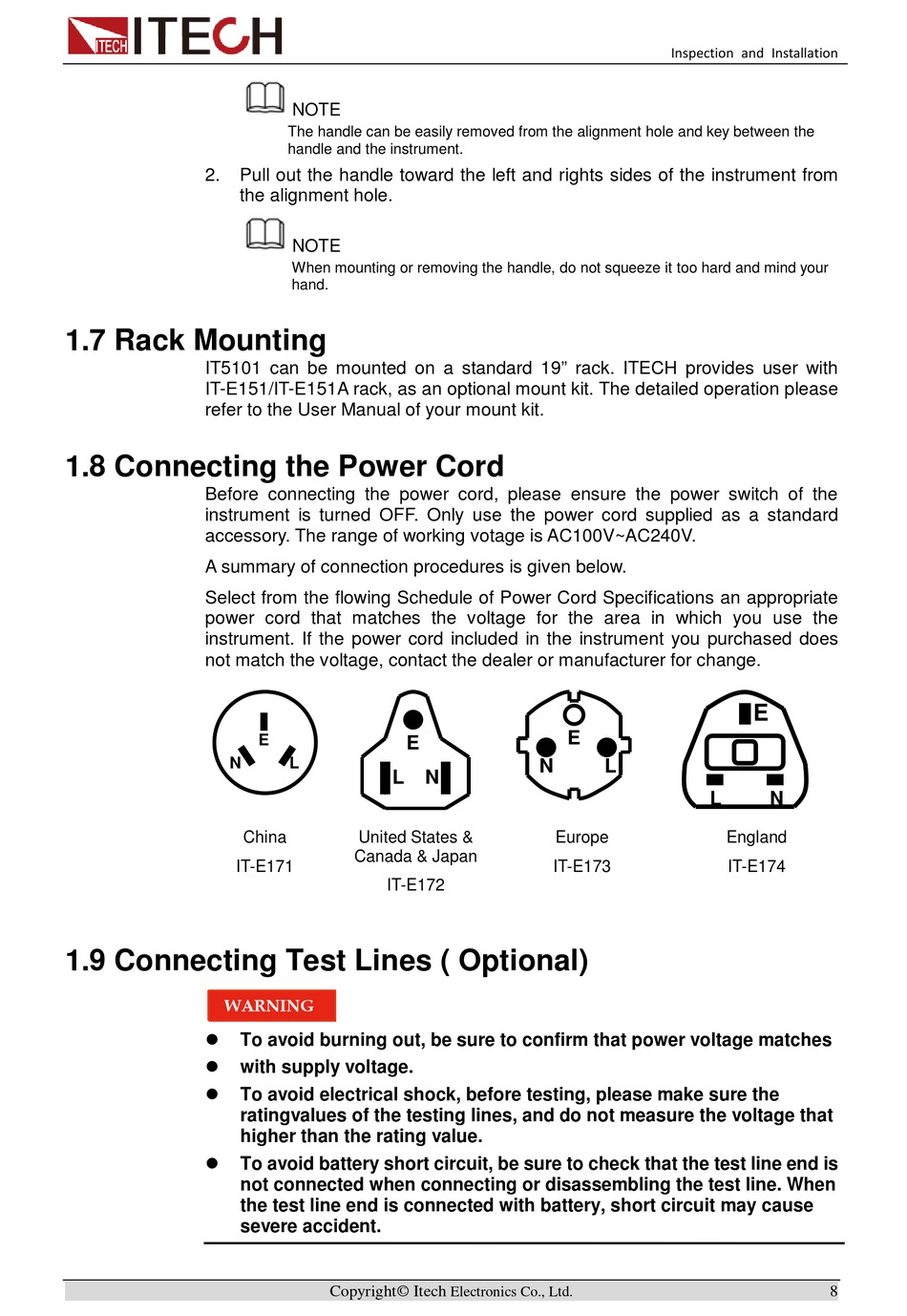

1.7 Rack Mounting

IT5101 can be mounted on a standard 19" rack. ITECH provides user with
IT-E151/IT-E151A rack, as an optional mount kit. The detailed operation please
refer to the User Manual of your mount kit.

1.8 Connecting the Power Cord

Before connecting the power cord, please ensure the power switch of the
instrument is turned OFF. Only use the power cord supplied as a standard
accessory. The range of working votage is AC100V~AC240V.
A summary of connection procedures is given below.
Select from the flowing Schedule of Power Cord Specifications an appropriate
power cord that matches the voltage for the area in which you use the
instrument. If the power cord included in the instrument you purchased does
not match the voltage, contact the dealer or manufacturer for change.
N

1.9 Connecting Test Lines ( Optional)





NOTE
The handle can be easily removed from the alignment hole and key between the
handle and the instrument.
Pull out the handle toward the left and rights sides of the instrument from
the alignment hole.
NOTE
When mounting or removing the handle, do not squeeze it too hard and mind your
hand.
E
E
L
L N
China United States &
Canada & Japan
IT-E171
IT-E172
To avoid burning out, be sure to confirm that power voltage matches
with supply voltage.
To avoid electrical shock, before testing, please make sure the
ratingvalues of the testing lines, and do not measure the voltage that
higher than the rating value.
To avoid battery short circuit, be sure to check that the test line end is
not connected when connecting or disassembling the test line. When
the test line end is connected with battery, short circuit may cause
severe accident.
Copyright© Itech
E
N L
Europe
IT-E173
Electronics Co., Ltd.
Inspection and Installation
E
L N
England
IT-E174
