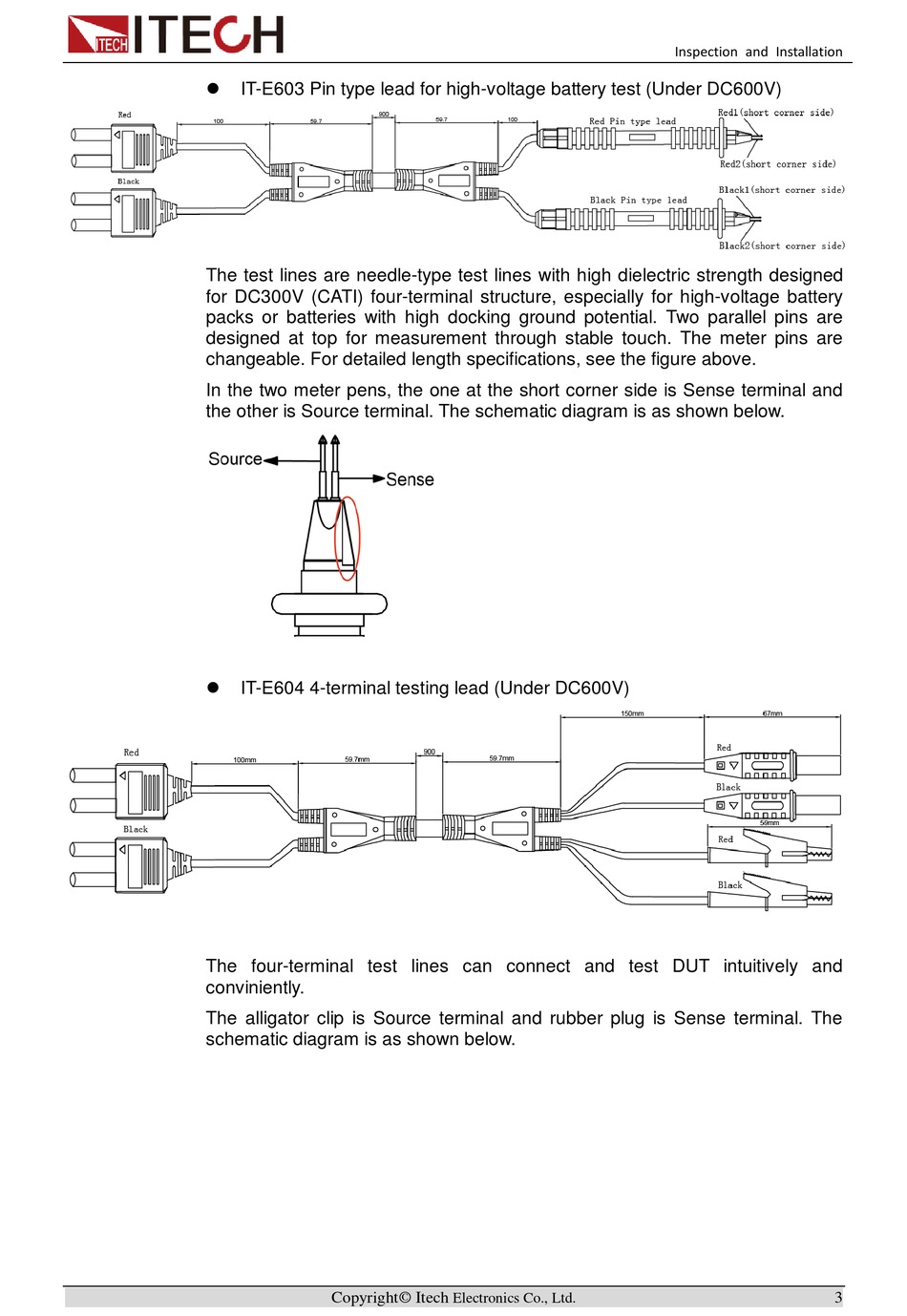

IT-E603 Pin type lead for high-voltage battery test (Under DC600V)
The test lines are needle-type test lines with high dielectric strength designed
for DC300V (CATI) four-terminal structure, especially for high-voltage battery
packs or batteries with high docking ground potential. Two parallel pins are
designed at top for measurement through stable touch. The meter pins are
changeable. For detailed length specifications, see the figure above.
In the two meter pens, the one at the short corner side is Sense terminal and
the other is Source terminal. The schematic diagram is as shown below.

IT-E604 4-terminal testing lead (Under DC600V)
The four-terminal test lines can connect and test DUT intuitively and
conviniently.
The alligator clip is Source terminal and rubber plug is Sense terminal. The
schematic diagram is as shown below.
