configuration items related to current measurement.
3. Press corresponding soft key of [Other Set] to set Filter, Average, Trigger
functions and Statistics On/Off.
4. Press Up/down key to select "Trig Source" and select corresponding trigger
source. Press [Enter] for confirmation.
5. Press Down key to select "Trig Delay" and set Delay Function On/off. Select
On and press [Enter] for confirmation.
6. Press Down key to select "Delay Time" and set delay time through knob.
Press [Enter] for confirmation.
7. After setting, press [Esc] to return to Measurement interface; when you
directly press [Esc] to return but fail to press the [Enter] key for confirmation,
the setting fails.

3.11Statistics On/Off Setting

In measurement, the user can conveniently turn on Statistic function in
Measurement Configuration menu. When this function is enabled, each trigger
of measurement will be recorded as one piece of statistic data For detailed
statistic information, refer to Statistic Function. When the trigger source is set at
Auto (auto measurement by the instrument) auto Statistic function will not be
enabled so that the user needs to press [Trig] key to trigger Statistic
measurement. If Statistic function is off, even if the [Start] is pressed, statistics
still fails.
1. Press [Meter] key. Display current measurement status.
2. Press corresponding soft key of [Config] and select corresponding
configuration items related to current measurement.

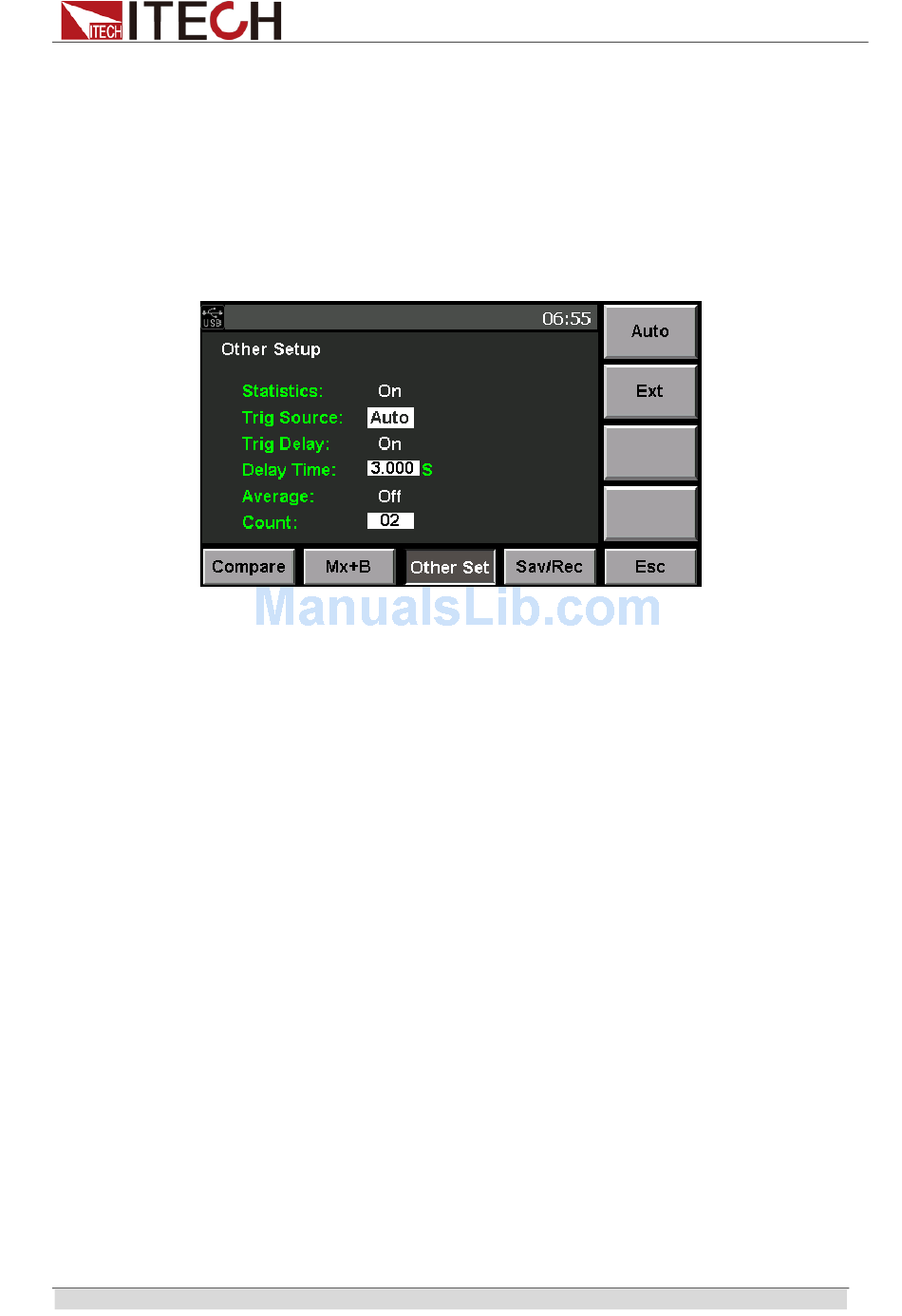

3. Press corresponding soft key of [Other Set] to set Average and Trigger
functions and Statistics On/Off.
4. Press Up/down key to select "Statistics" to turn on/off this function.
