4. Press Up/down key to select configuration item to be set and press
corresponding soft key for setting. Press [Enter] to confirm the set values.
Otherwise, the set value will not be effective.
After setting, press [Esc] to return to Measurement interface; when you
directly press [Esc] to return but fail to press the [Enter] key for confirmation,
the setting fails.

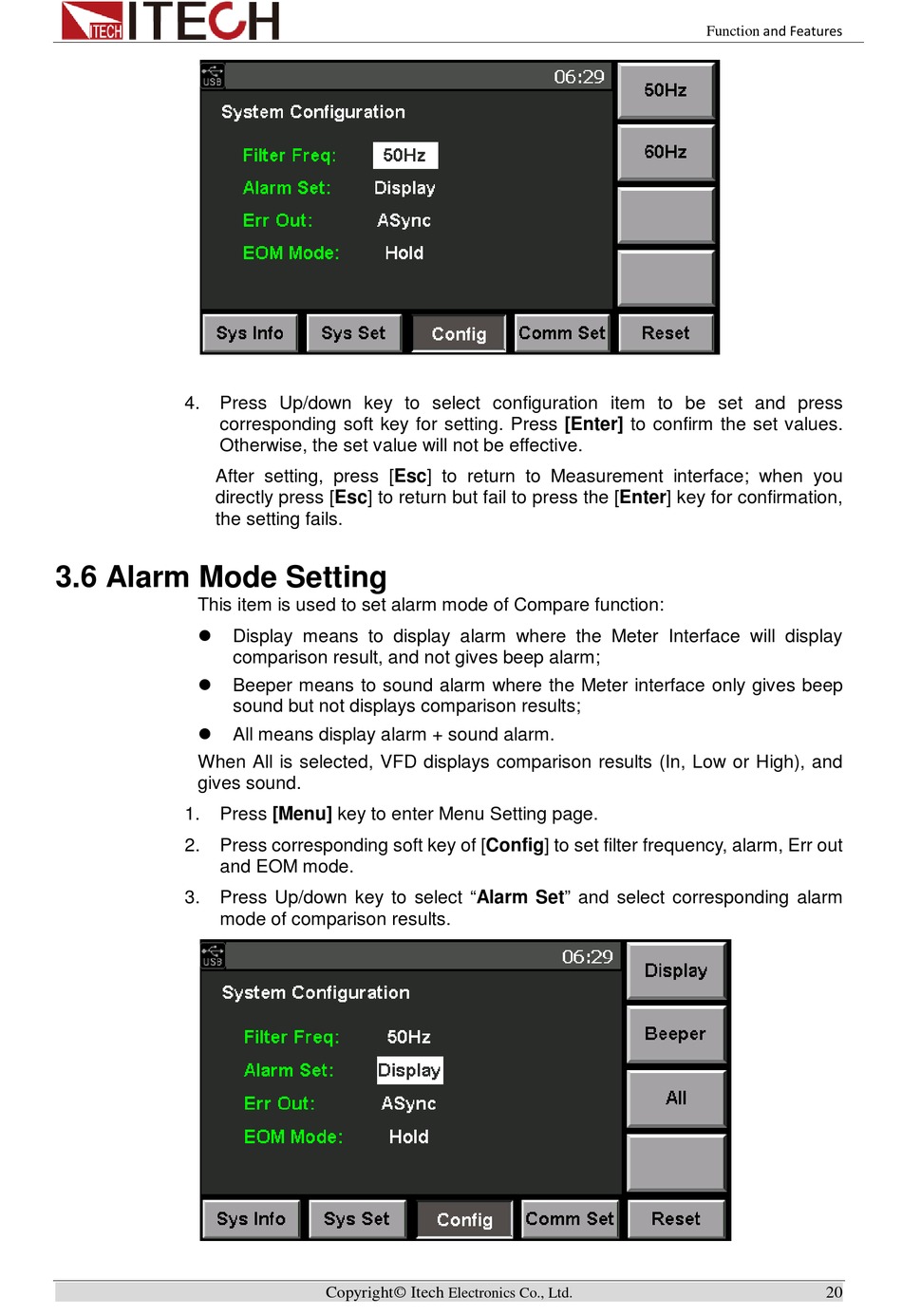

3.6 Alarm Mode Setting

This item is used to set alarm mode of Compare function:



When All is selected, VFD displays comparison results (In, Low or High), and
gives sound.
1. Press [Menu] key to enter Menu Setting page.
2. Press corresponding soft key of [Config] to set filter frequency, alarm, Err out
and EOM mode.
3. Press Up/down key to select "Alarm Set" and select corresponding alarm
mode of comparison results.
Display means to display alarm where the Meter Interface will display
comparison result, and not gives beep alarm;
Beeper means to sound alarm where the Meter interface only gives beep
sound but not displays comparison results;
All means display alarm + sound alarm.
