1.5 Adjusting the Handle

The instrument is equipped with a handle for user to easily carry and place it.

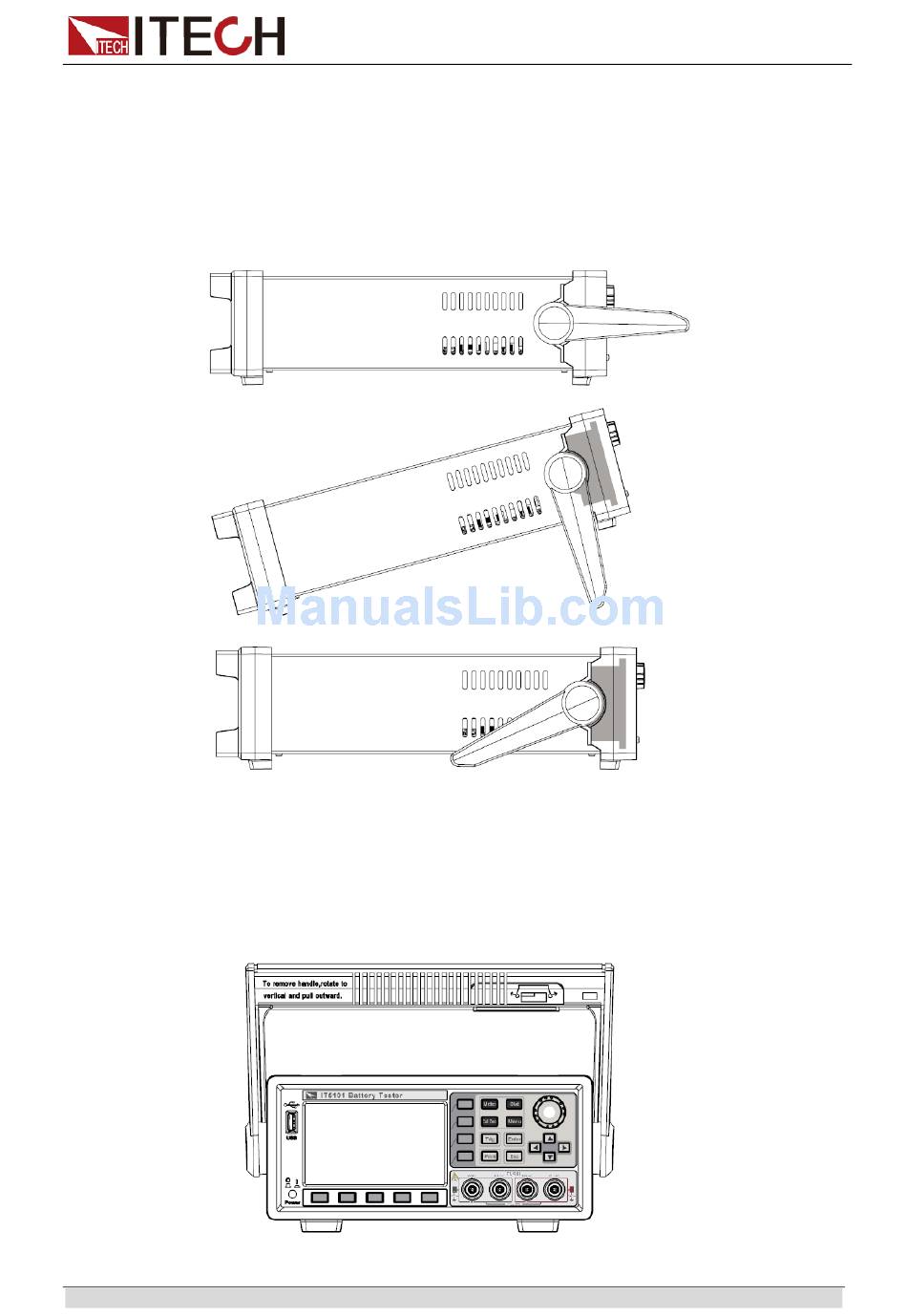

The handle can be adjusted in three manners as shown in the figure below. To
adjust the handle, first pull out the handle gently toward the left and right sides
of the instrument, and then rotate it slowly to its alignment keys.

1.6 Removing the Handle

To mount the instrument on a rack, first remove the handle from the instrument.
The handle can be removed following the procedures below:
1.
Rotate the handle to the position as shown in the following figure.
