The test lines are not standard accessories of the instrument and are for
individual sales. Please select them based on actual usage. This
instrument has a socket terminal for resistance measurement that is
independent from four terminals For details, refer to test line introduction in
"1.1 Verifying the Shipment"
1. Before connecting the test lines, be sure that the instrument Power is
in Off position.
2. Please check that the top of four-terminal test line is not connected.

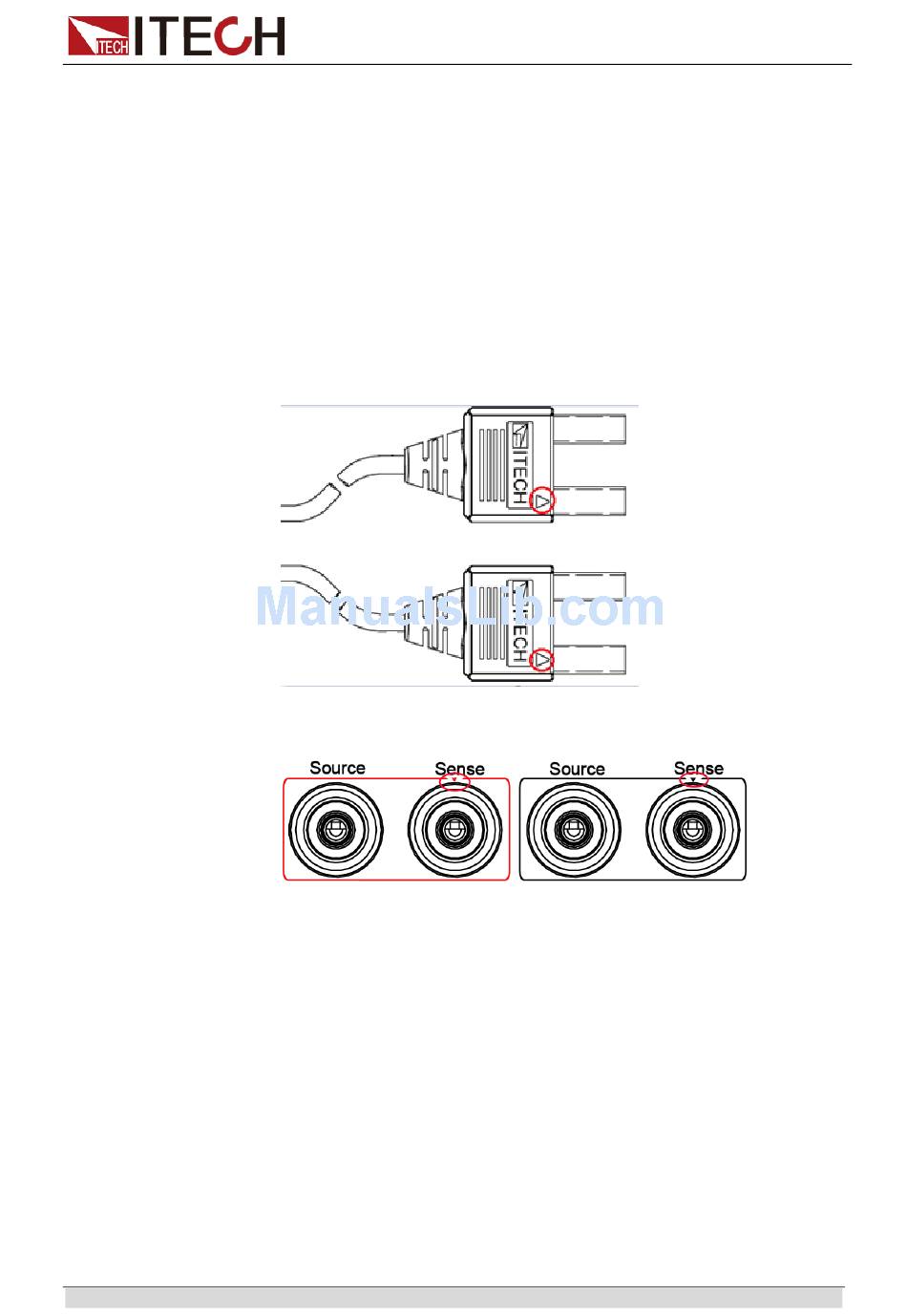

3. Connect the 4-terminal test line to the input terminal.
Connect the red test line to the red terminal, and the black test line to
the black terminal. Match the red sense
▲ symbol of red test line, and the black sense▼ symbol to the ▲
the
symbol of black test line.
Red
Black
4. Connect the other side to the DUT terminal based on current test line
type.
