IT8500 USER MANUAL

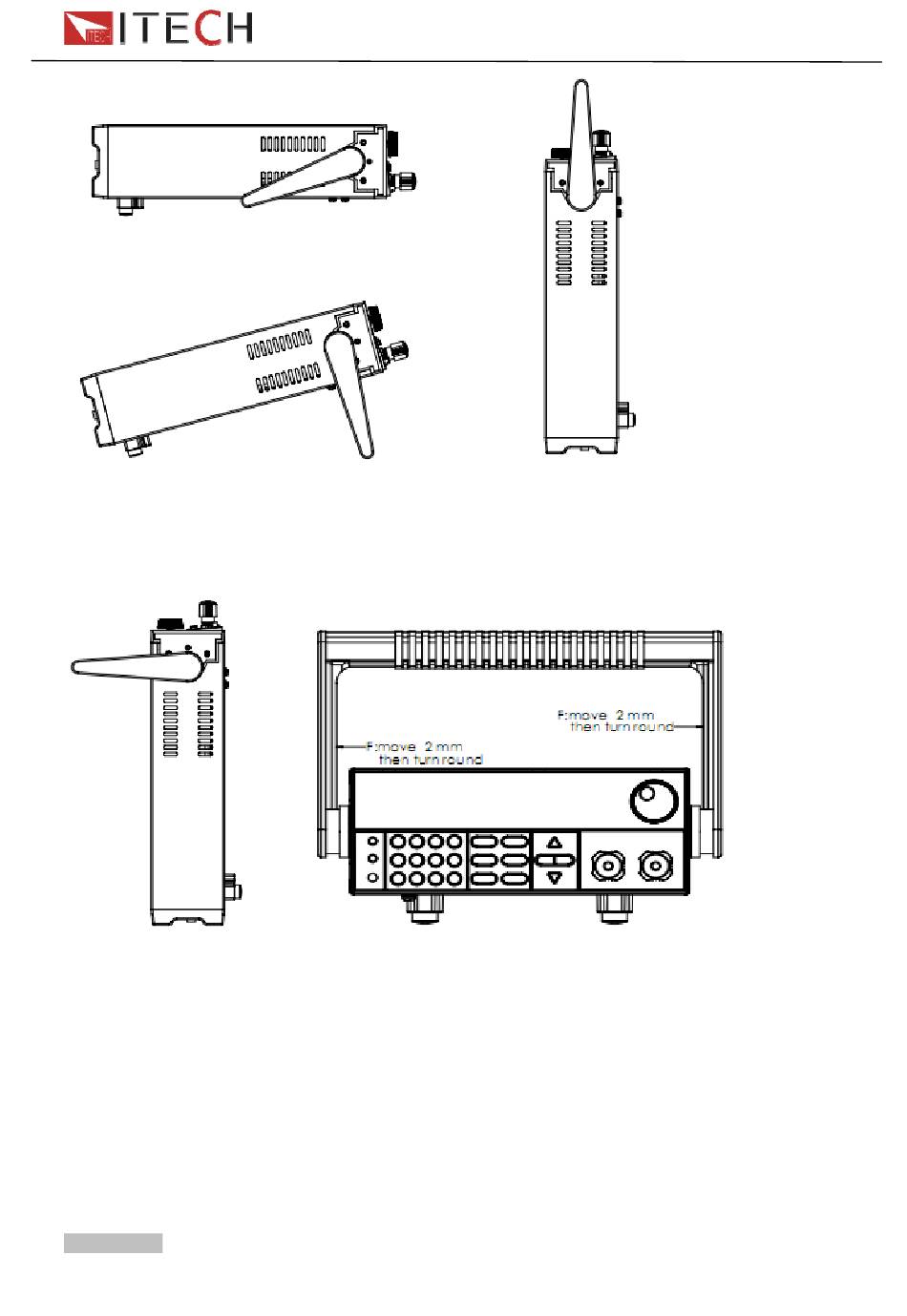

The handle may be removed if desired. The way to remove the handle:
Move the handle to depart it from the load's side by 2mm and then rotate the handle to
the position as below pictures, remove it.

1.3.3 Rack mounting

Model IT8511+/IT8512+/IT8512B+/IT8512C+/IT8513C+can be mounted into a standard
19-inch rack. Rack mount kits are available as Option IT-E151. The electronic load can
be mounted in a standard 19-inch rack panel or enclosures using an Option IT-E15C1
rack mount kit. A rack mount kit for joining two half-rack units is also available by using
Option IT-E151.
Before you install IT-E151, you should first remove the handle as described in 1.3.2
Then tear the tags on both sides.
User Manual
12
