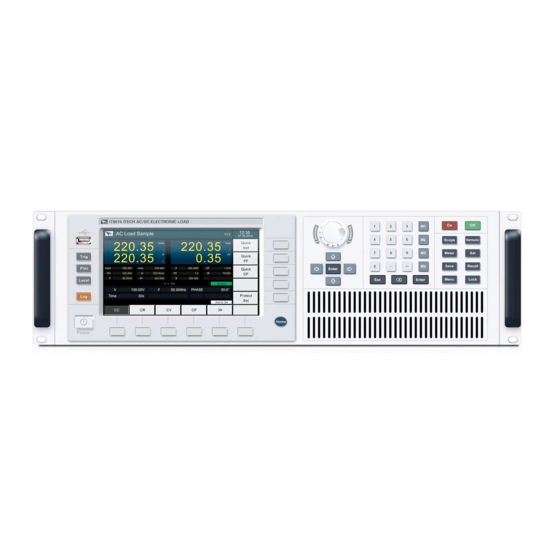

Programmable ac/dc electronic load
Hide thumbs Also See for IT8600 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
ООО "Техэнком"
Контрольно-измерительные приборы и оборудование
www.tehencom.com
Programmable AC/DC
Electronic Load
Programming Guide for IT8600
Series
Model: IT8615/IT8615L/IT8616/IT8617
/IT8624/IT8625/IT8626/IT8627/IT8628
Version: V2.2
