Back side:
IT-E602: wiring area for zeroing by IT-E601 testing lines. The test line has
alligator clips. Directly clamp the clips to connect Source and Sense terminals.

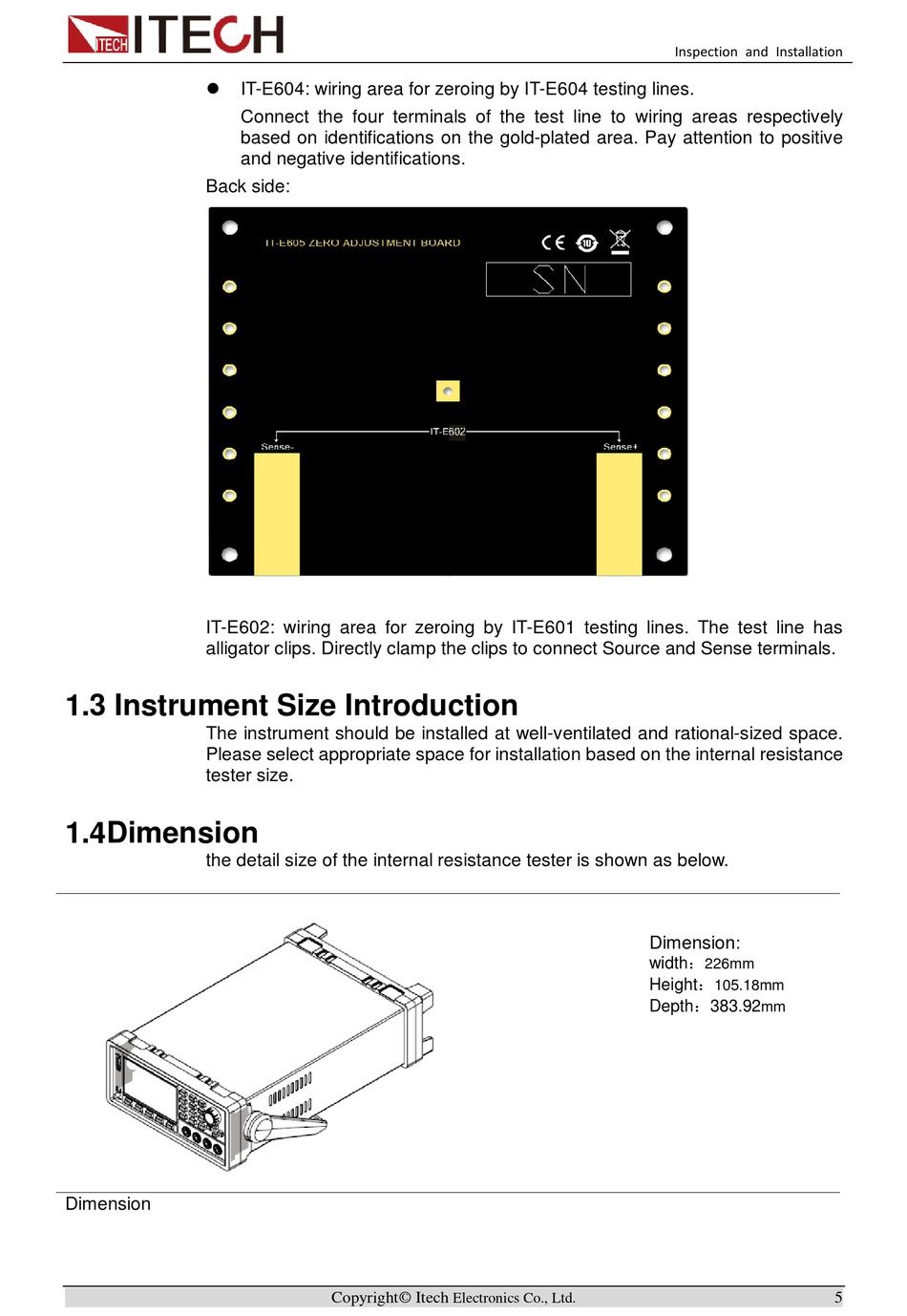

1.3 Instrument Size Introduction

The instrument should be installed at well-ventilated and rational-sized space.
Please select appropriate space for installation based on the internal resistance
tester size.

1.4Dimension

the detail size of the internal resistance tester is shown as below.
Dimension
IT-E604: wiring area for zeroing by IT-E604 testing lines.
Connect the four terminals of the test line to wiring areas respectively
based on identifications on the gold-plated area. Pay attention to positive
and negative identifications.
Copyright© Itech
Electronics Co., Ltd.
Inspection and Installation
Dimension
:
width：
226mm
Height：
105.18mm
Depth：383.92
mm
