2. Press corresponding soft key of [Config] and select corresponding
configuration items related to current measurement.
3. Press corresponding soft key of [Mx+B] for related settings of Calculate
function. As shown below.





4. Press Up/down key to select configuration item to be set and press
corresponding soft key for setting. Set values through knob. Press [Enter] to
confirm the set values. Otherwise, the setting will not be effective.
After setting, press [Esc] to return to Measurement interface; when you
directly press [Esc] to return but fail to press the [Enter] key for confirmation,
the setting fails.

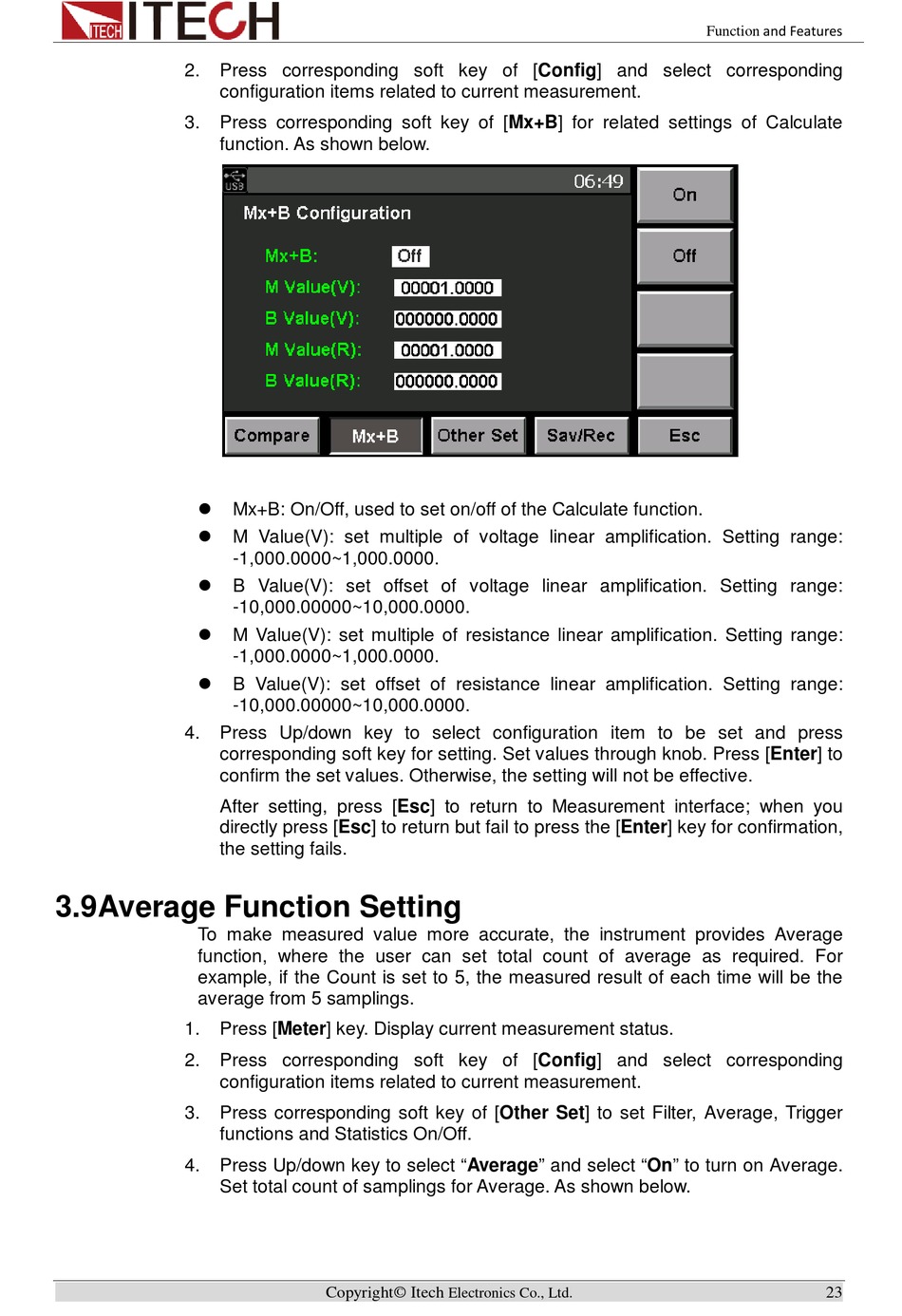

3.9Average Function Setting

To make measured value more accurate, the instrument provides Average
function, where the user can set total count of average as required. For
example, if the Count is set to 5, the measured result of each time will be the
average from 5 samplings.
1. Press [Meter] key. Display current measurement status.
2. Press corresponding soft key of [Config] and select corresponding
configuration items related to current measurement.
3. Press corresponding soft key of [Other Set] to set Filter, Average, Trigger
functions and Statistics On/Off.
4. Press Up/down key to select "Average" and select "On" to turn on Average.
Set total count of samplings for Average. As shown below.
Mx+B: On/Off, used to set on/off of the Calculate function.
M Value(V): set multiple of voltage linear amplification. Setting range:
-1,000.0000~1,000.0000.
B Value(V): set offset of voltage linear amplification. Setting range:
-10,000.00000~10,000.0000.
M Value(V): set multiple of resistance linear amplification. Setting range:
-1,000.0000~1,000.0000.
B Value(V): set offset of resistance linear amplification. Setting range:
-10,000.00000~10,000.0000.
