5. Press Up/down key to select configuration item to be set and press
corresponding soft key for setting. Set values through knob. Press [Enter] to
confirm the set values. Otherwise, the setting will not be effective.
After setting, press [Esc] to return to Measurement interface; when you
directly press [Esc] to return but fail to press the [Enter] key for confirmation,
the setting fails.

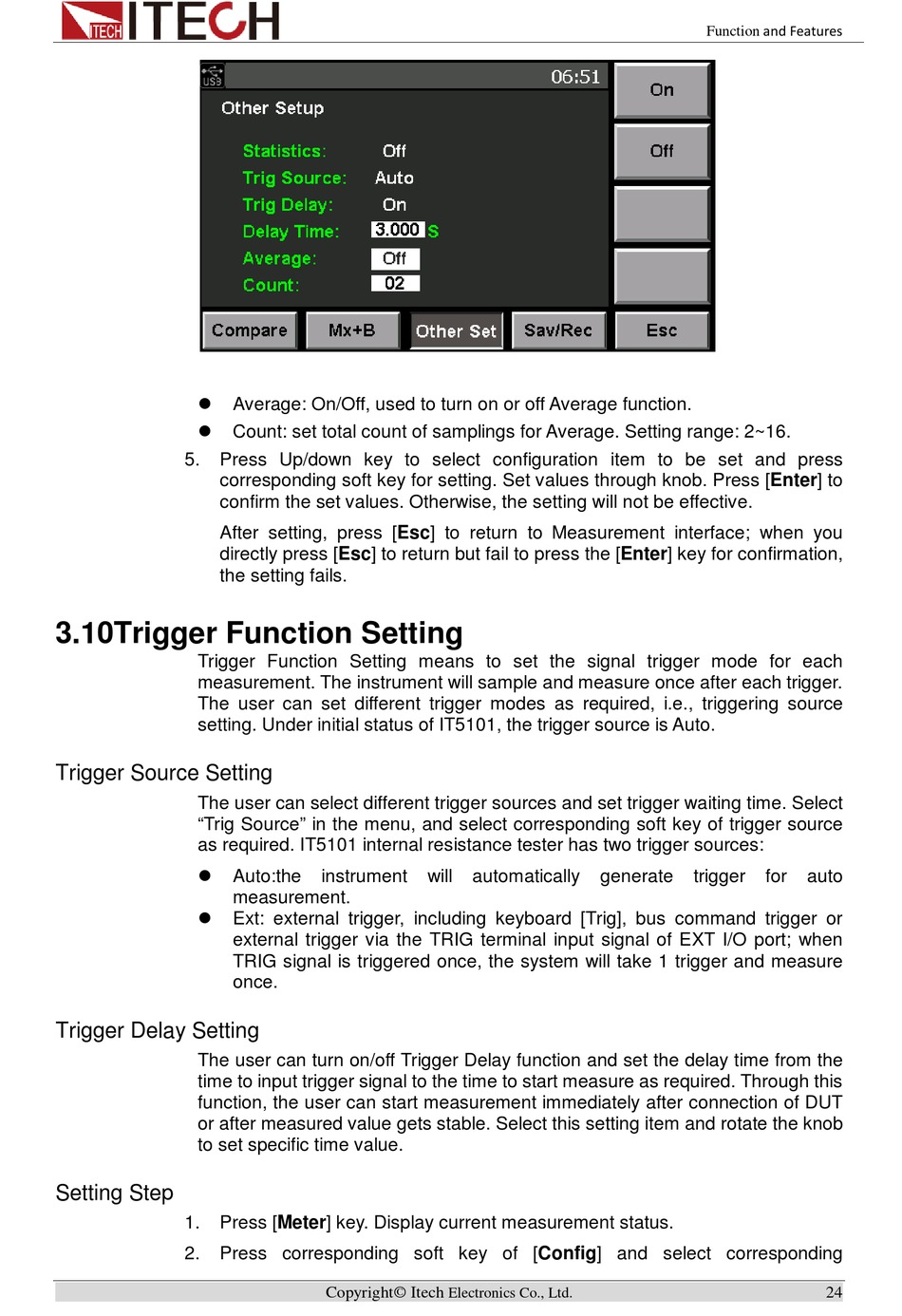

3.10Trigger Function Setting

Trigger Function Setting means to set the signal trigger mode for each
measurement. The instrument will sample and measure once after each trigger.
The user can set different trigger modes as required, i.e., triggering source
setting. Under initial status of IT5101, the trigger source is Auto.
Trigger Source Setting
The user can select different trigger sources and set trigger waiting time. Select
"Trig Source" in the menu, and select corresponding soft key of trigger source
as required. IT5101 internal resistance tester has two trigger sources:


Trigger Delay Setting
The user can turn on/off Trigger Delay function and set the delay time from the
time to input trigger signal to the time to start measure as required. Through this
function, the user can start measurement immediately after connection of DUT
or after measured value gets stable. Select this setting item and rotate the knob
to set specific time value.
Setting Step
1. Press [Meter] key. Display current measurement status.
2. Press corresponding soft key of [Config] and select corresponding
Average: On/Off, used to turn on or off Average function.
Count: set total count of samplings for Average. Setting range: 2~16.
Auto : the instrument
measurement.
Ext: external trigger, including keyboard [Trig], bus command trigger or
external trigger via the TRIG terminal input signal of EXT I/O port; when
TRIG signal is triggered once, the system will take 1 trigger and measure
once.
