PA SS
This signal indicates when both resistance and voltage judgment results are IN
(ΩV mode).
It transitions to Low (ON) when both the resistance and voltage judgment
results are IN.
In the Ω and V modes, this signal is the same as R-IN and V-IN outputs,
respectively.
____________
F A I L
This signal transitions to Low (ON) when P A S S




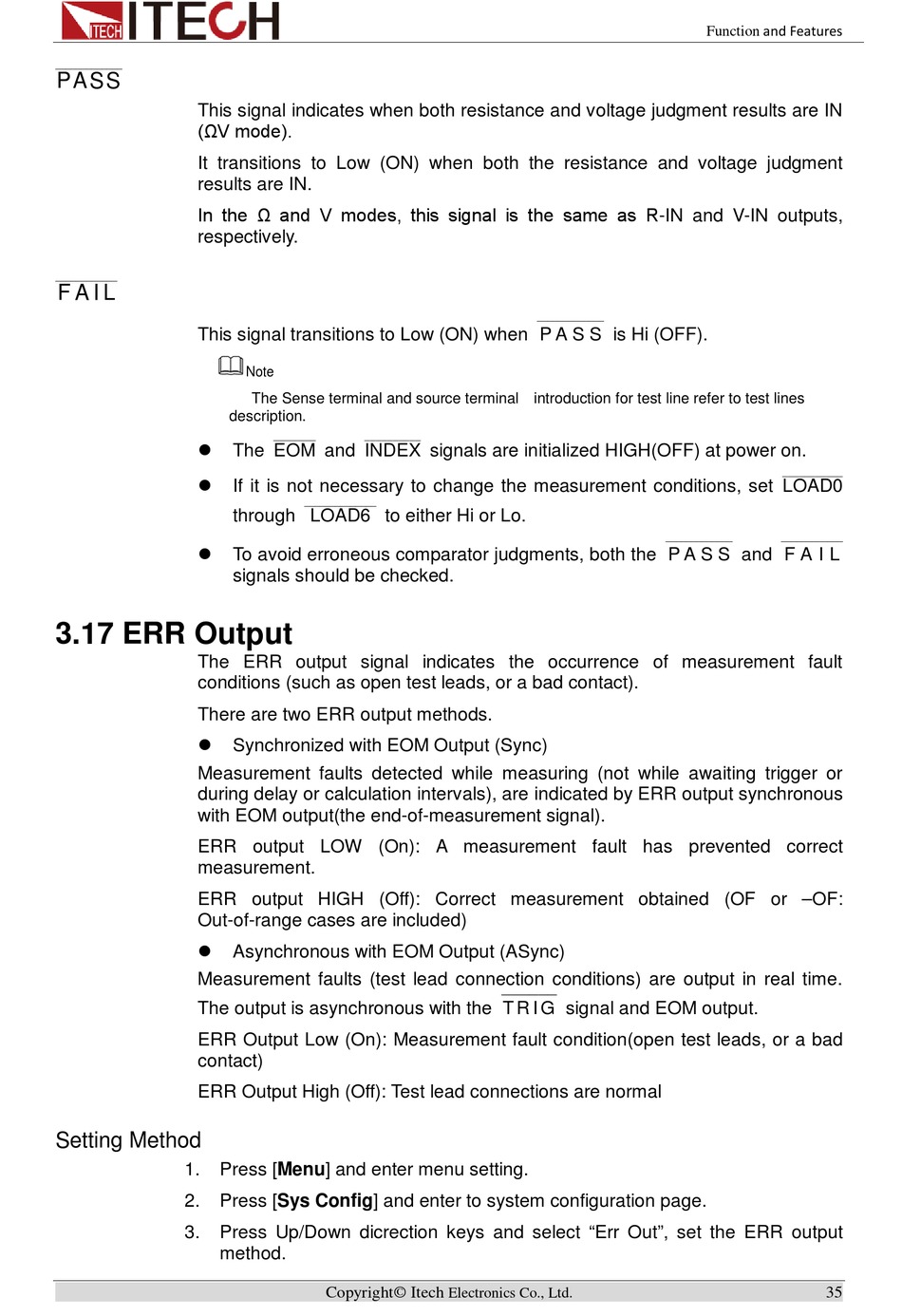

3.17 ERR Output

The ERR output signal indicates the occurrence of measurement fault
conditions (such as open test leads, or a bad contact).
There are two ERR output methods.

Measurement faults detected while measuring (not while awaiting trigger or
during delay or calculation intervals), are indicated by ERR output synchronous
with EOM output(the end-of-measurement signal).
ERR output LOW (On): A measurement fault has prevented correct
measurement.
ERR output HIGH (Off): Correct measurement obtained (OF or –OF:
Out-of-range cases are included)

Measurement faults (test lead connection conditions) are output in real time.
The output is asynchronous with the T R I G
ERR Output Low (On): Measurement fault condition(open test leads, or a bad
contact)
ERR Output High (Off): Test lead connections are normal
Setting Method
1. Press [Menu] and enter menu setting.
2. Press [Sys Config] and enter to system configuration page.
3. Press Up/Down dicrection keys and select "Err Out", set the ERR output
method.
Note
The Sense terminal and source terminal introduction for test line refer to test lines
description.
________ __________
The EOM and INDEX
If it is not necessary to change the measurement conditions, set LOAD0
______________
through LOAD6 to either Hi or Lo.
To avoid erroneous comparator judgments, both the P A S S
signals should be checked.
Synchronized with EOM Output (Sync)
Asynchronous with EOM Output (ASync)
Copyright© Itech
_____________
signals are initialized HIGH(OFF) at power on.
——————
signal and EOM output.
Electronics Co., Ltd.
Function and Features
is Hi (OFF).
_____________ ____________
and F A I L
___________
