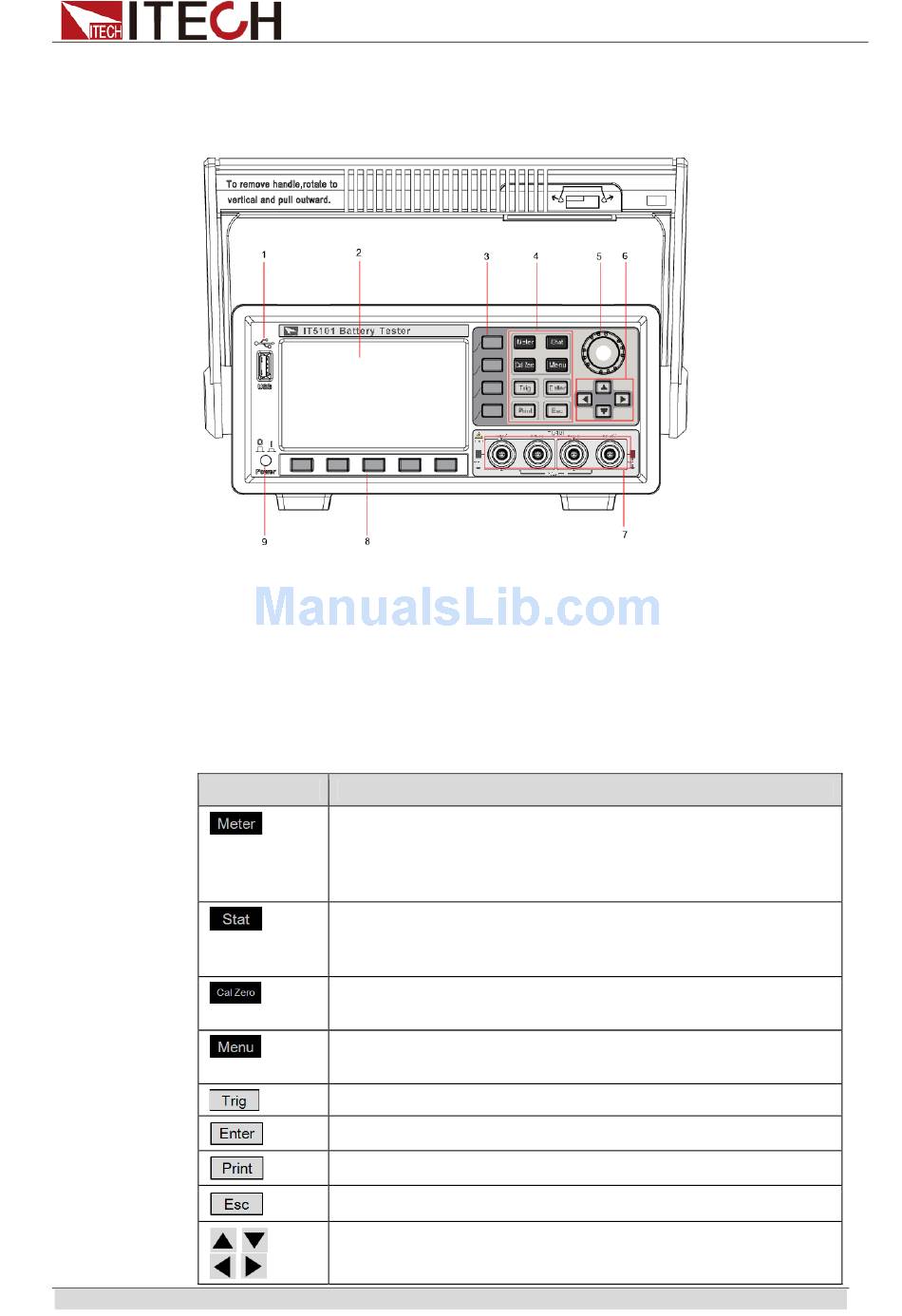

2.3 Front Panel Introduction
Schematic Diagram of Front Panel of IT5101 series internal resistance tester is as
follow.
1 USB Interface
2 Display
3 Menu Keys
4 Function Keys
5 Setting knob
2.4 Introduction to keyboard
The functions of keys on the front panel of the IT5101 series internal resistance
tester are shown in the following table.
Key tag
Name and function
Basic Measurement key When this key is pressed, the
measurement value of voltage and resistance will be
displayed, and also displayed the config menu of
measurement.
Statistics key. When this key is pressed, the statistic
parameters (average, standard deviation) of measurement
data will be displayed.
Zero key. When this key is pressed, zeroing information will
be displayed.
Menu
key,
used
parameters.
Used for manual trigger.
Enter key, used for confirming and saving the settings.
Used for saving screen images
Cancel/Return key
Up/Down key and Left/Right key
Copyright© Itech
Electronics Co., Ltd.
6 Arrow keys
7 Source terminals & Sense terminals
8 Menu Keys
9
Power Key
for
setting
relevant
