Key Sound Set (>Beeper)
This item can set the buzzer state.On option indicates that when you push
buttons,the buzzer will sound.OFF option indicates that the buzzer function is
disabled.Factory default is On option.
Adjust Screen Brightness
The user can adjust current screen brightness as required. Select "Sys Set" in
the menu and set Brightness value from 0-9, representing different brightness.
The larger is the value, the brighter is the screen.
Set System Date and Time
Set system date and time through this menu.
Extend Range (special for IT5101E)
The internal resistance tester of IT5101E Model has only two small ranges: 3Ω
and 300mΩ. However, the user can extend the range to make it consistent with
that of IT5101 Model. To extend range, select "Sys Set" in the menu and input
key in "Extend Range" setting item. Press [Enter] to extend range.
Range Extend is controlled by a key. To extend range, the user must ask for the
key from ITECH.

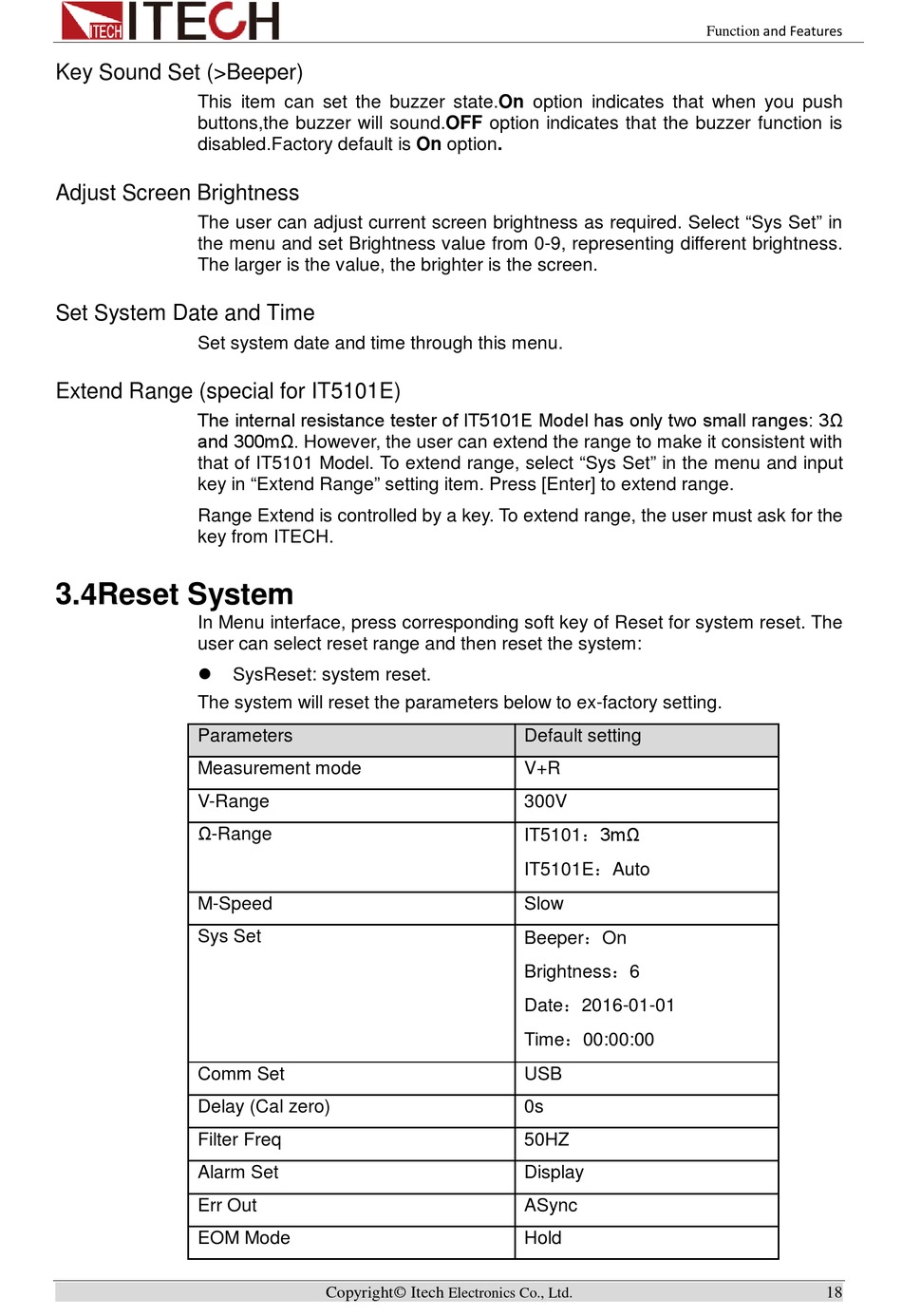

3.4Reset System

In Menu interface, press corresponding soft key of Reset for system reset. The
user can select reset range and then reset the system:

The system will reset the parameters below to ex-factory setting.
Parameters
Measurement mode
V-Range
Ω-Range
M-Speed
Sys Set
Comm Set
Delay (Cal zero)
Filter Freq
Alarm Set
Err Out
EOM Mode
SysReset: system reset.
Copyright© Itech
Default setting
V+R
300V
IT5101：3mΩ
IT5101E：Auto
Slow
Beeper：On
Brightness：6
Date：2016-01-01
Time：00:00:00
USB
0s
50HZ
Display
ASync
Hold
Electronics Co., Ltd.
Function and Features
18
