Fan Mounting
Insert the Fan Assembly in the wall opening. Rotate the Fan Blade by hand and check to make sure that
there is a minimum of 1/8" Blade clearance all the way around the Shroud orifice. Shift the Fan around in
the wall opening, if needed, to achieve at least 1/8" clearance all the way around. Now the Fan is ready to
be attached to the wall.
Rotate Blade
Step 1:

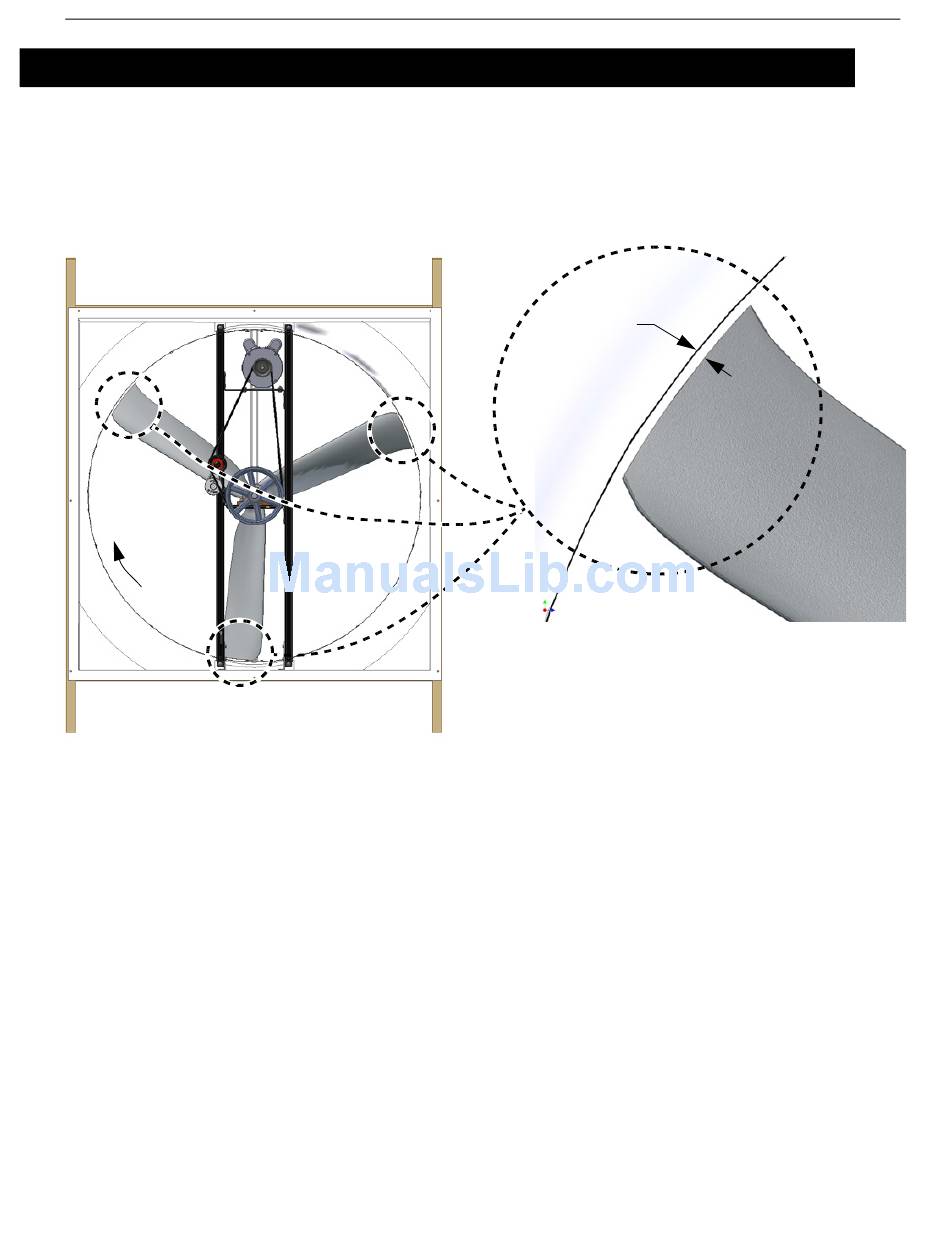

Set the Fan in the Framed
Opening. Rotate Fan Blade and
Check for 1/8" Blade Tip
Clearance
MV1864P
Note: Fan shown without components for clarity.
Mimimum 1/8" Tip
Clearance
