Removing the Doors

To avoid damaging the Fan Doors it is best to remove them before attaching the Cone. Unhook the Door Springs from the Door
and leave them attached to the Fan so they are not lost (Figure 4, Step 1). Remove the Door Clip and Washer and open up the
Doors (Step 2). You can discard the Door Clip and Washer. Lift one Door up so it will clear the Bottom Pivot Bracket (Step
3), and Pull the Door out (Step 4). Set the Door aside. Repeat the same process to remove the second Door.
Step 1:
Unhook the Door
Springs
Lift the Door up to Clear the Bottom
Pivot Bracket
Step 3:
Lift up the Door
MV1864P
1
Step 2:
2
3
Key Description
1 Door Spring
2 Door
3 Bottom Pivot Bracket
4 Door Clip
5 Washer

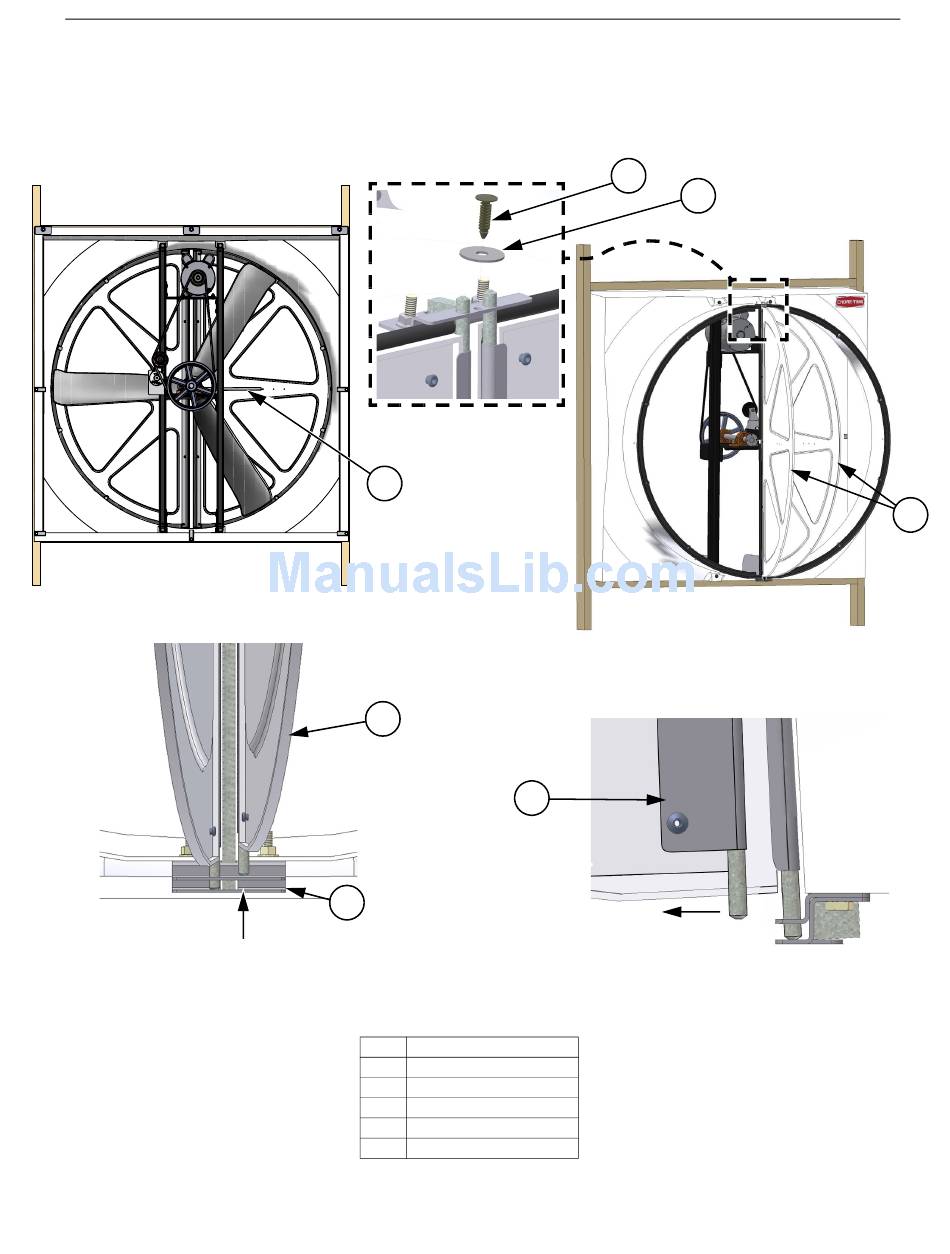

Figure 4. Removing the Doors
Remove and Discard
4
5
Remove Door Clip and Open the Doors
2
Pull the Door to Clear the Bottom Pivot Bracket
Step 4:
Pull the Door out
Installation
Remove and Discard
5
2
