14", 18", & 24" Hooded Fan Operator's Manual
The installation procedure is similar for the 14", 18", & 24" Hooded Fans,
unless otherwise noted. The primary difference is the size of opening required.
See Figure 1.
Build wall framing as specified in Figure 1. The required wall opening for each
fan is included in the chart below.
The Fans are shipped completely assembled and need only to be fastened to
the wall.
The Hardware Kit, supplied, includes (8) #10 screws to secure the fan to the
framed opening. See Figure 2.
Figure 2. Hooded Fan Installation (side view)
The Plastic Hood should be installed over the fan as shown in Figure 3.
Note: Make sure the Hood is positioned as specified in Figure 3. If the Hood
is installed too low on the fan, the Blow-Out Door (on the fan) will not be
allowed to completely open. This will restrict air flow and compromise fan
performance.
The Hardware Kit, supplied, includes the 2" screws used to secure the Hood
to the building.
Install the Guard on the Hood opening, as shown in Figure 3, using 1/4-20
hardware supplied.
Slide the screen between the flanges on the incoming end of fan. Caution: The
Screen must be installed to prevent serious injury.
• Page 6
Fa n I n s t a lla t io n
Dimension
14" Hooded Fan
18" Hooded Fan
24" Hooded Fan

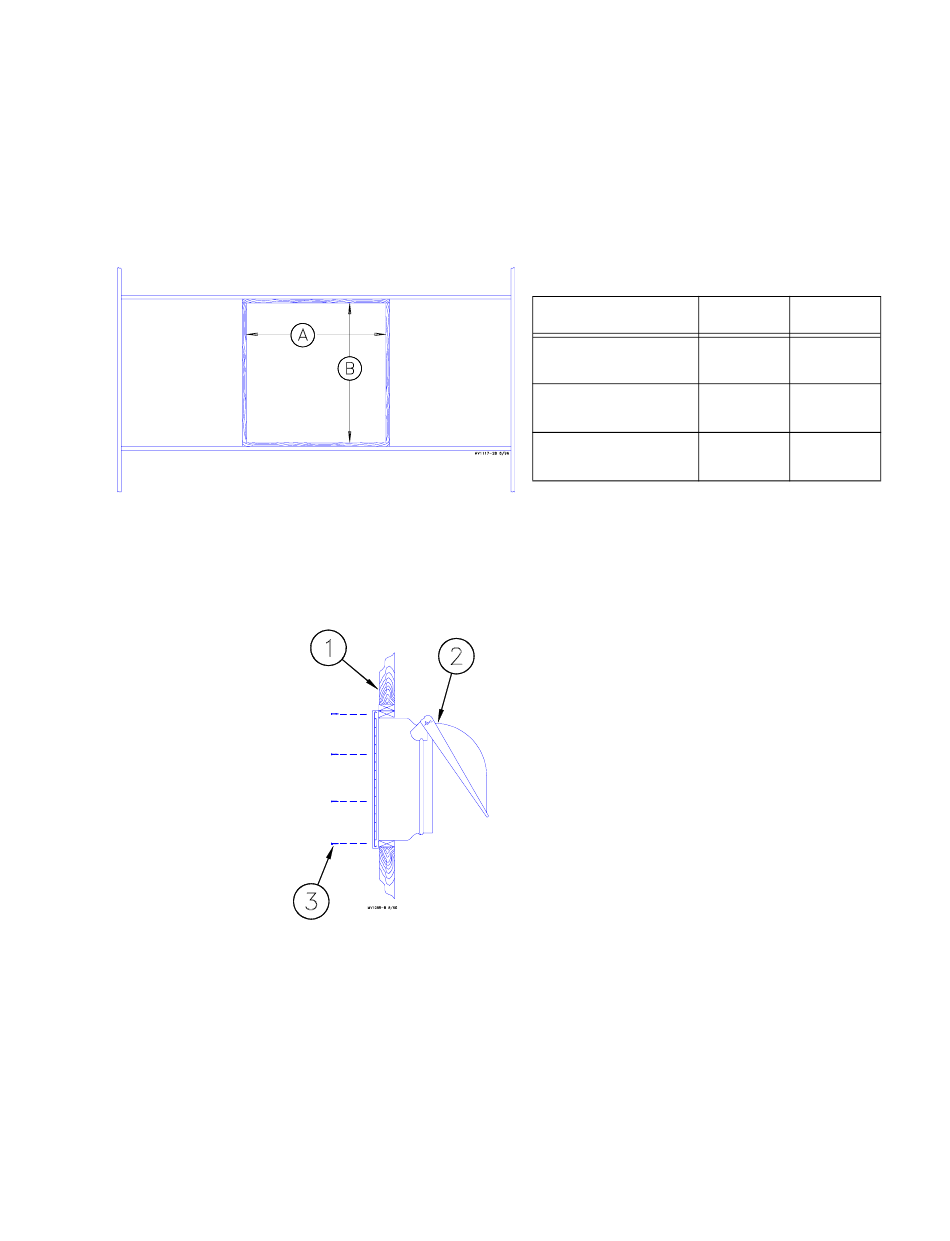

Figure 1. Framing Diagram (front view).
K ey
1
2
3
A
17.75" 17.75"
(45 cm) (45 cm)
22.25" 22.25"
(56.5 cm) (56.5 cm)
28.75" 28.75"
(73 cm) (73 cm)
De sc r ip t i o n
S i de W a l l
Ho o de d Fa n
( 8 ) # 10 Sc r e w s
B
