Chore-Time Turbo Installation & Operator's Instruction Manual

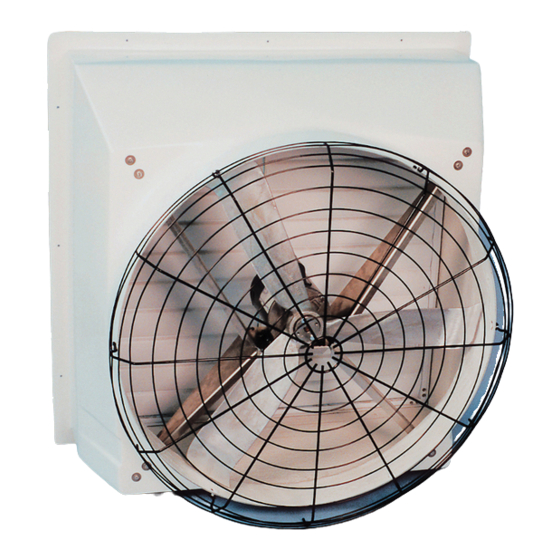

36” direct drive fiberglass cone fan and grill fan
Hide thumbs
Also See for Turbo:
- Installation & operator's instruction manual (18 pages) ,
- Installation manual (12 pages) ,
- Installation & operator's instruction manual (16 pages)
Related Manuals for Chore-Time Turbo
Summary of Contents for Chore-Time Turbo

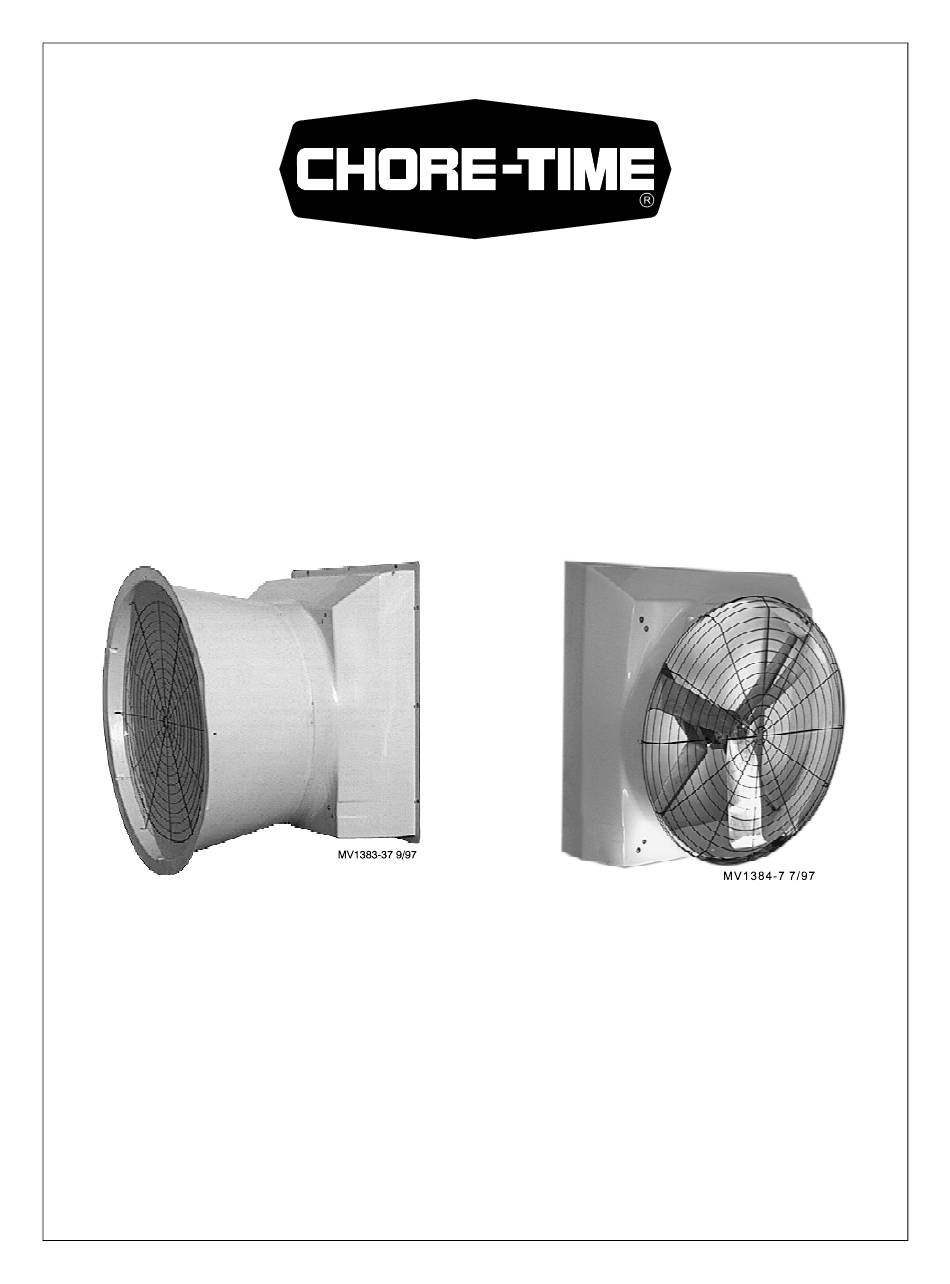

- Page 1 ® Turbo Fiberglass Cone Fan and Grill Fan 36” Direct Drive Installation & Operator’s Instruction Manual November 2010 MV1384D...
-
Page 2: Chore-Time Turbo
If such a defect is found by Chore-Time to exist within the applicable period, Chore-Time will, at its option, (a) repair or replace such product free of charge, F.O.B. -
Page 3: Table Of Contents
® Direct Drive TURBO Fan ..........13 Plastic Shutter . -
Page 4: Support Information
CE is required only on equipment sold in Europe. Chore-Time Equipment recognizes CE Mark and pursues compliance in all applicable products. Fill in the CE-Mark serial number in the blank space provided for future reference. -
Page 5: Safety Information
TURBO Fiberglass Cone and Grill Fan—36" Direct Drive Safety Information Caution, Warning and Danger Decals have been placed on the equipment to warn of potentially dangerous situations. Care should be taken to keep this information intact and easy to read at all times. -
Page 6: Decal Location
This diagram shows the proper location of the safety decal as shipped from the factory. Replace damaged or missing decals. Make sure the decals can be easily seen at all times. 38232-2 36" TURBO FAN (DD) 208-230 V, 60 HZ, 1 PH, 1/2 HP CHORE-TIME EQUIPMENT... -
Page 7: Planning The Installation
Planning the Installation Carefully plan the installation. ® Dimensions are provided for the 36" TURBO Fans with Cones (Figure 1) and without cones (Figure 2). Be sure to allow enough space to install fans without interfering with other fans or equipment that may be installed at a later date. -
Page 8: Installation Instructions
TURBO Fiberglass Cone and Grill Fan—36" Direct Drive Installation Instructions Fan Installation 1. Cut a opening in the wall to house the fan—the required wall opening is pro- vided in the chart below. See Figure 3. 2. Construct a frame in the opening of the wall for the fan using 2" x 6" (50 x 152 mm) lumber—not supplied. -
Page 9: Installing The Cone Or Grill To The Fiberglass Fan
TURBO Fiberglass Cone and Grill Fan—36" Direct Drive Installing the Cone or Grill to the Fiberglass Fan Fiberglass Cone Fan: 1. Slide the Cone onto the Shroud—the Shroud fits inside the Cone. See Figure 5. 4" slots are cut into the edge of the cone to allow expansion as the cone is slide onto the shroud. -
Page 10: Wiring
TURBO Fiberglass Cone and Grill Fan—36" Direct Drive Fiberglass Grill Fan: 1. Align the holes in the Grill with the slots in the Shroud. 2. Insert the (6) Wafer Head Bolts from inside the Shroud through the Grill and thread the Flange Nuts onto the ends of the Wafer Head Bolts. -
Page 11: Shutter Installation
TURBO Fiberglass Cone and Grill Fan—36" Direct Drive Shutter Installation Plastic and Aluminum Shutters are available for the 36" Fans. Installation is identical except where noted. See below. 1. If you have a Plastic Shutter—cut a 3/8" slot in the upper left flange of the Shutter frame in order to route the electrical cord out the back. -
Page 12: Maintenance
Replace the "X" in fan P/N with "1" for an aluminum Shutter, "2" for a plastic shutter. Important! Chore-Time Equipment strongly recommends that a good alarm system should be installed in confinement buildings to warn of power failure and high temperature. -
Page 13: Fan Parts List
TURBO Fiberglass Cone and Grill Fan—36" Direct Drive Fan Parts List ® Direct Drive TURBO Item Description Part No. Shutter (plastic) 38027 Shutter (aluminum) 38259 Cast Aluminum Blade 38902 Fiberglass Shroud 37913 Fan Upper Motor Mount 37738 Motor Danger Decal... -
Page 14: Plastic Shutter
TURBO Fiberglass Cone and Grill Fan—36" Direct Drive Plastic Shutter Item Description Part No. Shutter (plastic) 38027 Push Nut, 1/4" 38032 Shutter Rod Pivot 38702-2 Shutter Louver 38038-2... - Page 15 TURBO Fiberglass Cone and Grill Fan—36" Direct Drive This Page Intentionally Left Blank...
- Page 16 Page No. Description of Change Various Changed (8916) Nylon Nut to (46298) SS Hex Serrated Nut. Deleted Nylon Washer (4856). Contact your nearby Chore-Time distributor or representative for additional parts and information. CTB, Inc. P.O. Box 2000 Milford, Indiana 46542-2000 U.S.A.
