Installation
Attaching the Cone

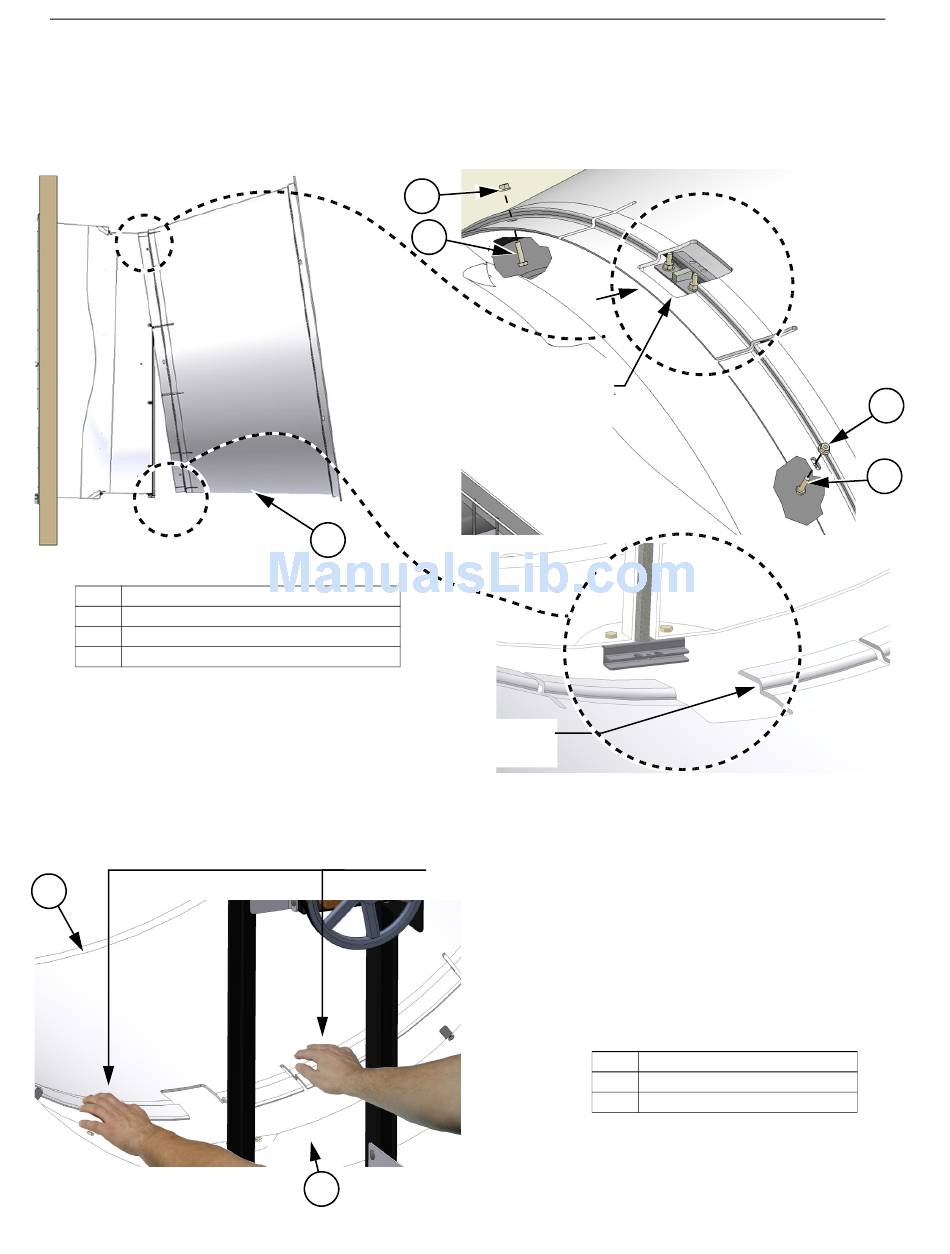

To install the Cone you must first identify the Top of the Cone. The cutout in the top of the Cone does not extend
out to the Cones edge (See Figure 5). Begin Installing the Cone by hooking the top of the Cone over the top of the
Fan orifice. At this time only attach the Cone to the Shroud at the upper most two holes using (2) 1/4-20 Bolts and
(2) 1/4-20 Flange Nuts provided in the Parts Package (See Figure 5).
Key Description
1 Cone
2 1/4-20 x .8 SS HH Bolt (Parts Pkg.)
3 1/4-20 HX Serrated Flange Nut (Parts Pkg.)
Figure 5. Attaching the Cone at the Top
Slide the Remaining Cone over the Shroud orifice, working around the Cone from top to bottom. When you get to
the bottom of the Cone it is best to have a second person push down on the Cone from inside the Fan as you push
the Cone on. (See Figure 6 below).
1
6
3
2
Cutout in the top of Cone does
not extend to the Cones edge
1
Cutout in the bottom of Cone
extends to the edge
From insided of Fan push down on the Cone while
a second person pushes the Cone onto Shroud from the outside.
2
Key Description
1 Cone
2 Shroud
Figure 6. Sliding the Cone on at the Bottom
3
2
