Installation
Locate the three holes across the top Fan Shroud flange (Item 5, Figure 3). Line up the Screen Retainers
included in the Parts Package (Item 1, Figure 3) with these three holes, slip them over the top Fan Shroud
flange, and using (3) 1/4 x 1-3/4 Lag Screws included in the Parts Package attach the Fan to the Wall
(Step 1, Figure 3). In each of the remaining 5 holes in the Fan Shroud flange, use a 1/4 x 1-3/4 Lag Screw,
two Nylon Washers, and a Screen Clip, all included in the Parts Package, to secure Fan to the Wall as
shown below in Step 2. Only tighten the Lag Screws enough that the Clip will retain it's position, but can
still be rotated by hand. Use two more Lag Screws to attach the Fan to the Wall through the holes in the
Post Brackets (Step 3, Item 6).
MV1864-006 1/05
2
6
Step 3:
Fasten Fan to Wall at the
Post Brackets
4
2
Step 1:
Fasten Fan to Wall at top (Use Screen
3
2
Step 2:
Fasten Fan to Wall at Bottom
and sides (Use Screen Clips)
Key Description
1 Screen Retainer (Incl. in Parts Pkg.)
2 1/4 x 1-3/4 SS Lag Screw (Incl. in Parts Pkg.)
3 Screen Clip (Incl. in Parts Pkg.)
4 Nylon Washer (Incl. in Parts Pkg.)
5 Top Fan Shroud Flange
6 Post Bracket

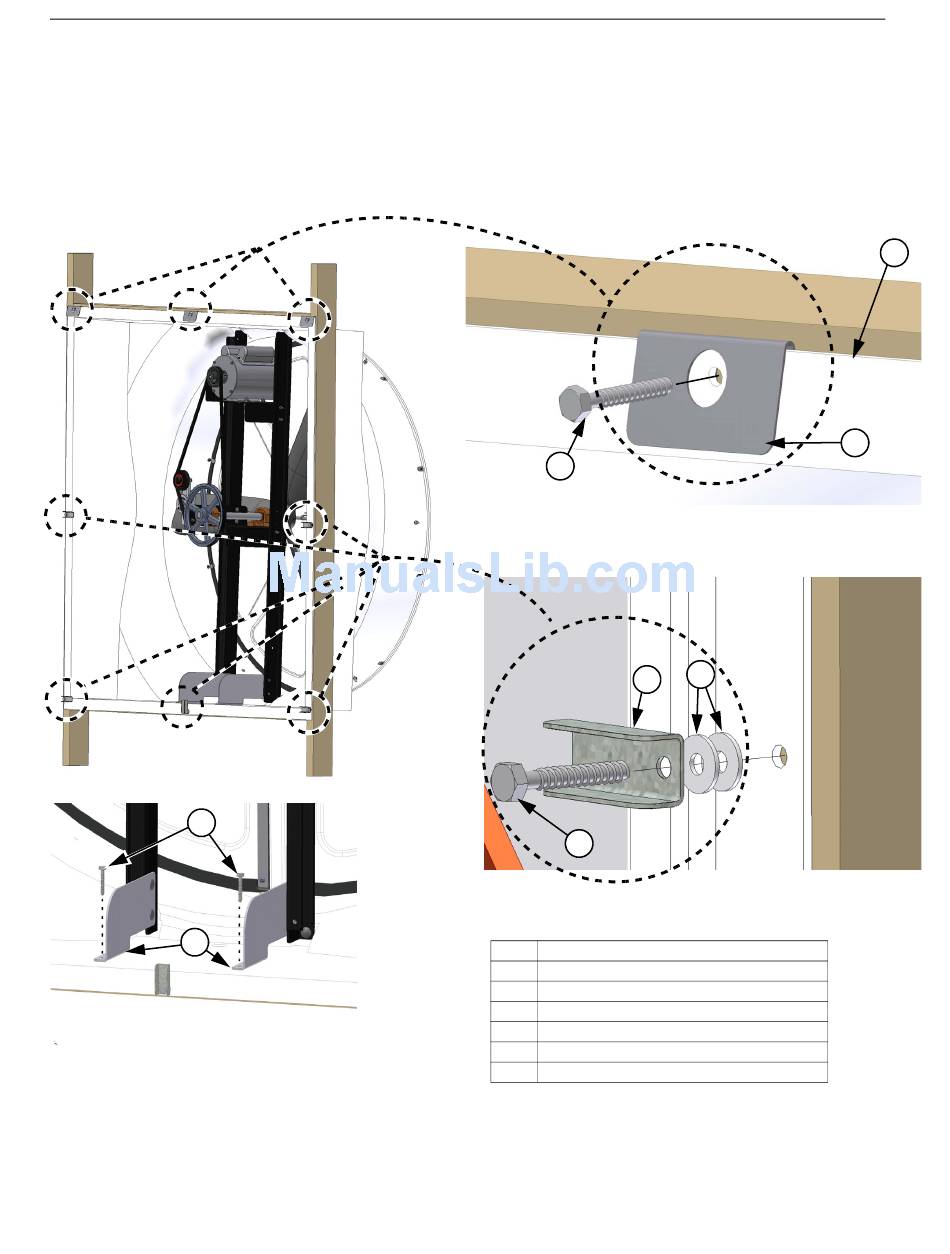

Figure 3. Installing Screen Clips
1
4
MV1864P
5
