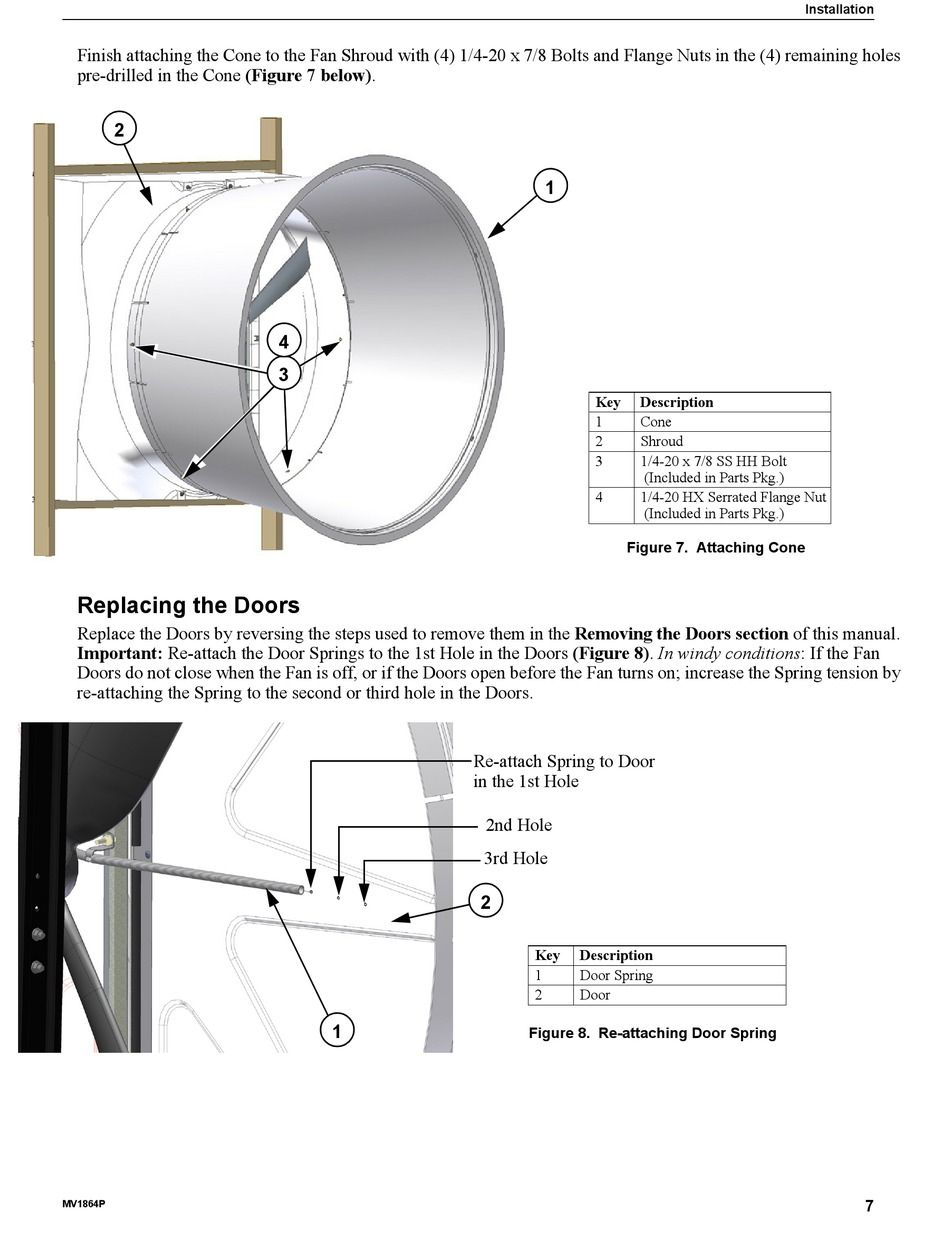

Finish attaching the Cone to the Fan Shroud with (4) 1/4-20 x 7/8 Bolts and Flange Nuts in the (4) remaining holes
pre-drilled in the Cone (Figure 7 below).
2

Replacing the Doors

Replace the Doors by reversing the steps used to remove them in the Removing the Doors section of this manual.
Important: Re-attach the Door Springs to the 1st Hole in the Doors (Figure 8). In windy conditions: If the Fan
Doors do not close when the Fan is off, or if the Doors open before the Fan turns on; increase the Spring tension by
re-attaching the Spring to the second or third hole in the Doors.
MV1864P
4
3
1
1
Key Description
1 Cone
2 Shroud
3 1/4-20 x 7/8 SS HH Bolt
(Included in Parts Pkg.)
4 1/4-20 HX Serrated Flange Nut
(Included in Parts Pkg.)
Figure 7. Attaching Cone
Re-attach Spring to Door
in the 1st Hole
2nd Hole
3rd Hole
2
Key Description
1 Door Spring
2 Door
Figure 8. Re-attaching Door Spring
