Chore-Time MV1600B Operator's Instruction Manual

48'' belt drive cone fan

Advertisement

Quick Links

48'' Belt Drive
Cone Fan
Installation & Operator's Instruction Manual
MV1600-1 6/99
August 1999
MV1600B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV1600B and is the answer not in the manual?

Questions and answers

Summary of Contents for Chore-Time MV1600B

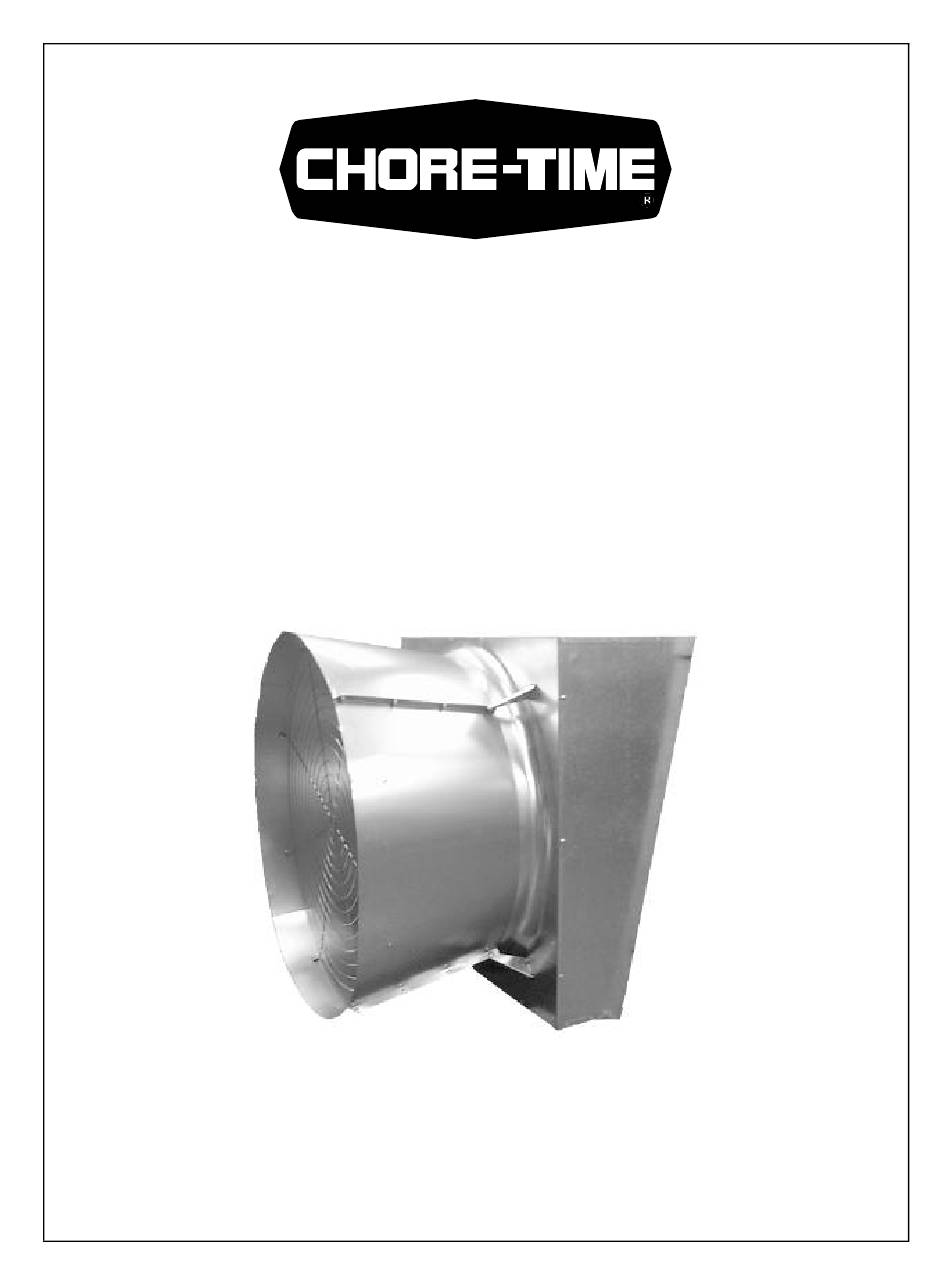

  • Page 1 48'' Belt Drive Cone Fan Installation & Operator’s Instruction Manual MV1600-1 6/99 August 1999 MV1600B...
  • Page 2: Chore-Time Warranty

    If such a defect is found by Chore-Time to exist within the one year period, Chore-Time will, at its option, (a) repair or replace such product free of charge, F.O.B. the factory of manufacture, or (b) refund to the original purchaser the original purchase price, in lieu of such repair or replacement.
  • Page 3: Table Of Contents

    Chore-Time Warranty ........
  • Page 4: Support Information

    General Support Information The Chore-Time 48" Galvanized Cone Fans are designed to be used as exhaust fans. The Fans are shipped assembled. Using this equipment for any other purpose or in a way not within the operating recommendations specified in this manual will void the warranty and may cause personal injury.
  • Page 5: About This Manual

    • Major changes from the last printing will be listed on the back cover. • This Planning Symbol is used in areas where planning needs to take place before construction continues. • Very small numbers near an illustration ( i.e., ) are identification of the graphic, 1257-48 not a part number. MV1600B...
  • Page 6: Safety Information

    DANGER: Rotating Fan Blade This Decal is placed on both sides of the shroud. • Keep hands away. • Disconnect power before servicing. • The Fan may start automatically. • Do not operate the Fan without the screens in place. MV1600B...
  • Page 7: Decal Placement

    MV1600-002 6/99 Figure 1. Decal Placement Important! Chore-Time Equipment strongly recommends that a good alarm system should be installed in confinement buildings to warn of power failure and high temperature. Chore-Time Equipment also recommends that an alternate power source be available for confinement buildings in case of power failure.
  • Page 8: Fan Installation

    Screws starting with the center holes in each panel. The end holes will also be used for attaching the Corner Flange Angles. MV1600-007 6/99 Figure 2. Framing Diagram MV1600-008B 6/99 (front view) Figure 3. Fan (side view) Table 1. Framing Size Rough Rough Opening Opening 55" 57 1/2" 33-3/8" 60-7/8" x 58.3" 5-3/4" 21" MV1600B...
  • Page 9: Fan Dimensions

    Figure 5. Cone Fan allow 4'' spacing between framed openings. Figure 4. Fan/Cone Dimensions Table 2. Fan Dimensions “A” “B” “C” “D” "E" "F" 48'' BD 57'' 54.5'' 57'' 58.25'' 9.5'' 4'' Minimum Spacing Cone Fan [144.8 cm] [138.4 cm] [144.8 cm] [148.0 cm] [24.13 cm] [10.16 cm] MV1600B...
  • Page 10: Fan Assembly

    Assemble the Corner Flange Angles in each corner of the Fan, by sliding the Corner Flange Angle under all edges of Flange Corners, secure with lag screws. Blade Rotation 1600-010 6/99 MV1600-B01 8/99 Figure 6. Fan Assembly (side view) Item Description Fan Assembly Side Wall of Building 1/4''x1-3/4'' Lag Screw Corner Flange Angles MV1600B...
  • Page 11: Cone Assembly

    3/8'' lock washers, and 5/16''-18 hex nuts. See Figure 8. MV1600-012 6/99 Figure 7. Cone Assembly (Top View) Cone Assembly Item Description Cone Panel 5/16-18'' Hex Nut 3/8'' Lock Washer 5/16-18 x 5/8'' Carriage Bolt Do not install Hardware here. MV1600B...
  • Page 12 Tighten all the hardware after the cone assembly is secure and in place. MV1600-013 6/99 MV1600-014 6/99 Figure 9. Cone Installation (Side View). Figure 8. Hanger Bracket Installation (Side View) Hanger Bracket Installation Item Description Fan Assembly 5/16-18 x 5/8'' Carriage Bolt Cone Hanger Bracket 5/16-18'' Hex Nut 3/8'' Lock Washer MV1600B...
  • Page 13: Grill Installation

    This will help maintain the shape of the Cone Assembly while it is being secured to the Fan Shroud. MV1600-9B 6/99 Figure 10. Grill Installation Diagram Grill Installation Item Description Cone Assembly Grill 5/16-18'' Hex Nut 3/8'' Lock Washer 5/16-18 x 5/8'' Carriage Bolt MV1600B...
  • Page 14: Motor Installation For Belt Drive Units

    Description Voltage Phase Sheave Sheave Part No. 43679-482X 115/230 37729 35333 42072 48'' Belt Drive Cone Fan 43679-484X 208-230/460 40157 35333 42072 Replace the "X" in fan P/N with "1" for an aluminum Shutter, "2" for a plastic shutter. MV1600B...
  • Page 15: Sheave Mounting

    Figure 13. to lock the Sheave in place. Once the belt has been aligned, torque the set screw to 150-165 in-lbs to secure Sheave in place. (Do not tighten set screw until the belt is aligned.) MV1600-4 6/99 Figure 13. Sheave Mounting and Key Assembly. Item Description Sheave MV1600B...
  • Page 16: Belt Alignment

    MV1600-5 6/99 Figure 14. Belt Alignment Belt Alignment Item Description Spring Compression to 2-1/4''. Install Belt as shown. Straight edge Measure from straight edge to sheave. Frame to sheave measurement to be the same at motor and driven sheaves. MV1600B...
  • Page 17: Wiring

    7. Allow enough slack in the cord to form a "drip loop" for moisture to fall away from the cord and not into the motor. 8. Remove the slack in the cord between the cord clip and the romex connector and then tighten the romex connector. MV1600B...
  • Page 18 Knock-outs allow the cord to be placed out of the way of the operation of the Fan Punched knock-out. 1601-003 4/99 Knock-out with romex connector in place. Punched knock-out. MV1601-200 9/99 MV1601-006 6/99 Figure 13. Installation of Motor Cord MV1600B...
  • Page 19 See Figure 15. Knock-out areas Corner Flange Angles Knock-out with romex connector Shutter Clip areas MV1601-024 6/99 MV1601-025 6/99 Bottom Panel Shutter Slots Figure 14. Shutter Placement Assembly MV1600B...
  • Page 20: Maintenance

    DO NOT OVER GREASE!! Use only high quality lithium soap base grease and clean all dirt from Zerk before applying grease. (The recommended Grease to use is Shell Avian Grease.) MV1600B...
  • Page 21: Itemized 48'' Belt Drive Cone Fan

    Itemized 48'' Belt Drive Cone Fan Blade Rotation MV1600-001 8/99...
  • Page 22: Motor Specifications And Parts Listing

    Clip, Shutter SS 2.00 x .70 36729 Bushing, St Bd Module 38896 Washer, Nylon .260 x .69 x .060 4856 Spring 43715 Pkg., Hardware BD Cone Fan 44036 Blade, 48'' Fan 28140 Kit, EZ Fan Cone 37935 Screw 5/16-18 x 3/8'' Set 1174 MV1600B...
  • Page 23 48'' Belt Drive Cone Fan Motor Specifications and Parts Listing This page left blank for your notes. MV1600B...
  • Page 24 48'' Belt Drive Cone Fan Made to work. Built to last. Contact your nearby Chore-Time distributor or representative for additional parts and information. CTB Inc. P.O. Box 2000 · Milford, Indiana 46542-2000 · U.S.A. Phone (219) 658-4101 · Fax (800) 333-4191 E-Mail: ctb@ctbinc.com ·...
