Chore-Time TURBO MV1864P Installation & Operator's Manual page 8

Installation

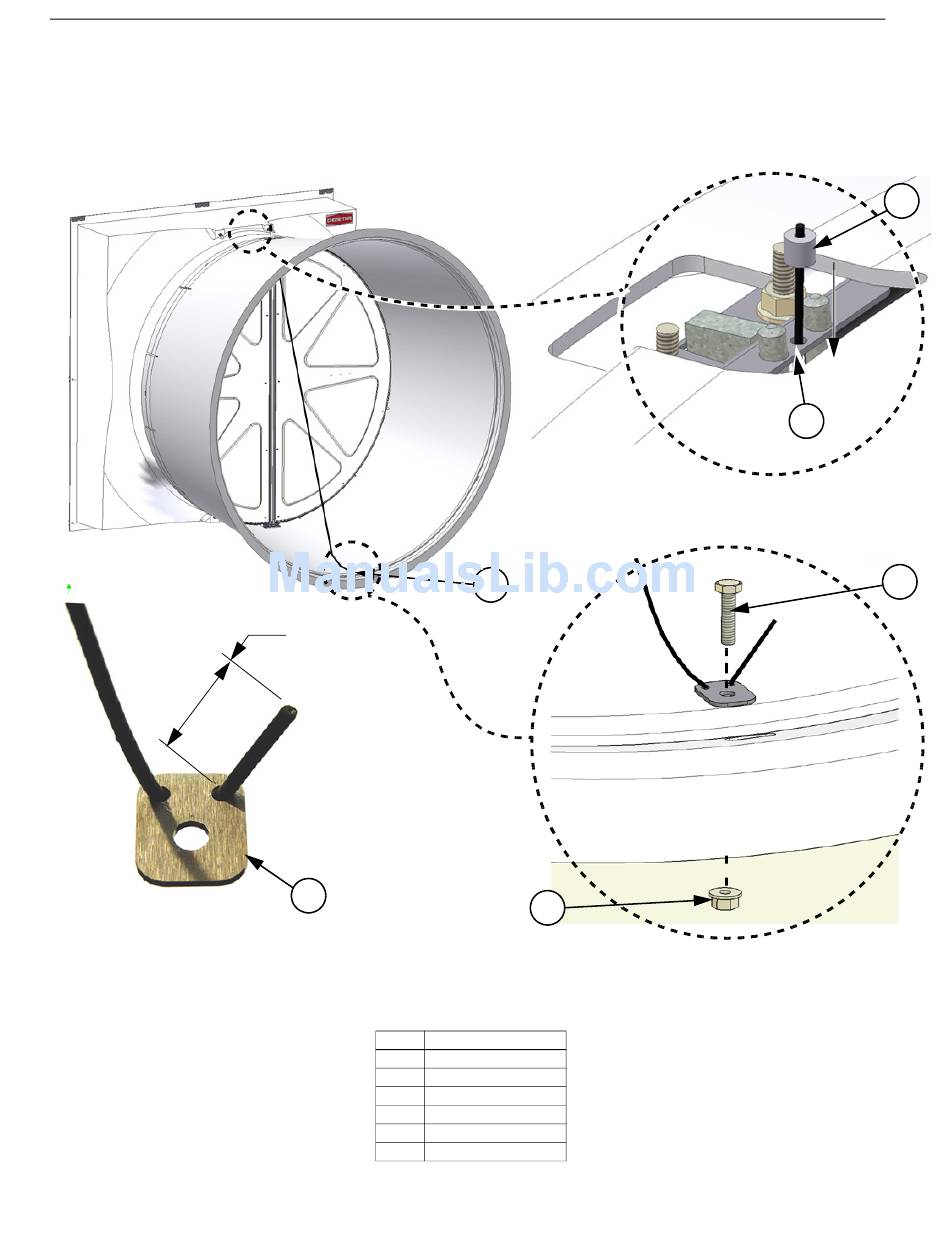

Attaching the Nylon Cable
Remove the Nylon Cable (Item 1, Step 1) from the parts package and insert it into the hole in the Top Pivot Bracket
(Item 2) as shown. Insert the other end of the Nylon Cable into the Cable Bracket (Item 3, Step 2) included in the
parts package leaving approximately 1" extend past the Bracket as shown. Attach the Cable Bracket to the hole at
the bottom of the Cone (Item 4) with a 1/4-20 Flange Bolt (Item 5) and Nut (Item 6) as shown in Step 3
Step 2:
Insert the Nylon Cable into
Cable Bracket. Leave approx.
1" extend past the Bracket.
8
Approx. 1"
3
Item Description
1 Nylon Cable
2 Top Pivot Bracket Hole
3 Cable Bracket
4 Hole in Cone
5 1/4-20 Flange Bolt
6 1/4-20 Flange Nut
Figure 9. Attaching Nylon Cable
Step 1:
Insert Cable into hole in the
Top Pivot Bracket
4
6
Step 3:
Attach Cable Bracket to Cone
with 1/4-20 Nut and Bolt
1
2
5
MV1864P
