Installation
Installation

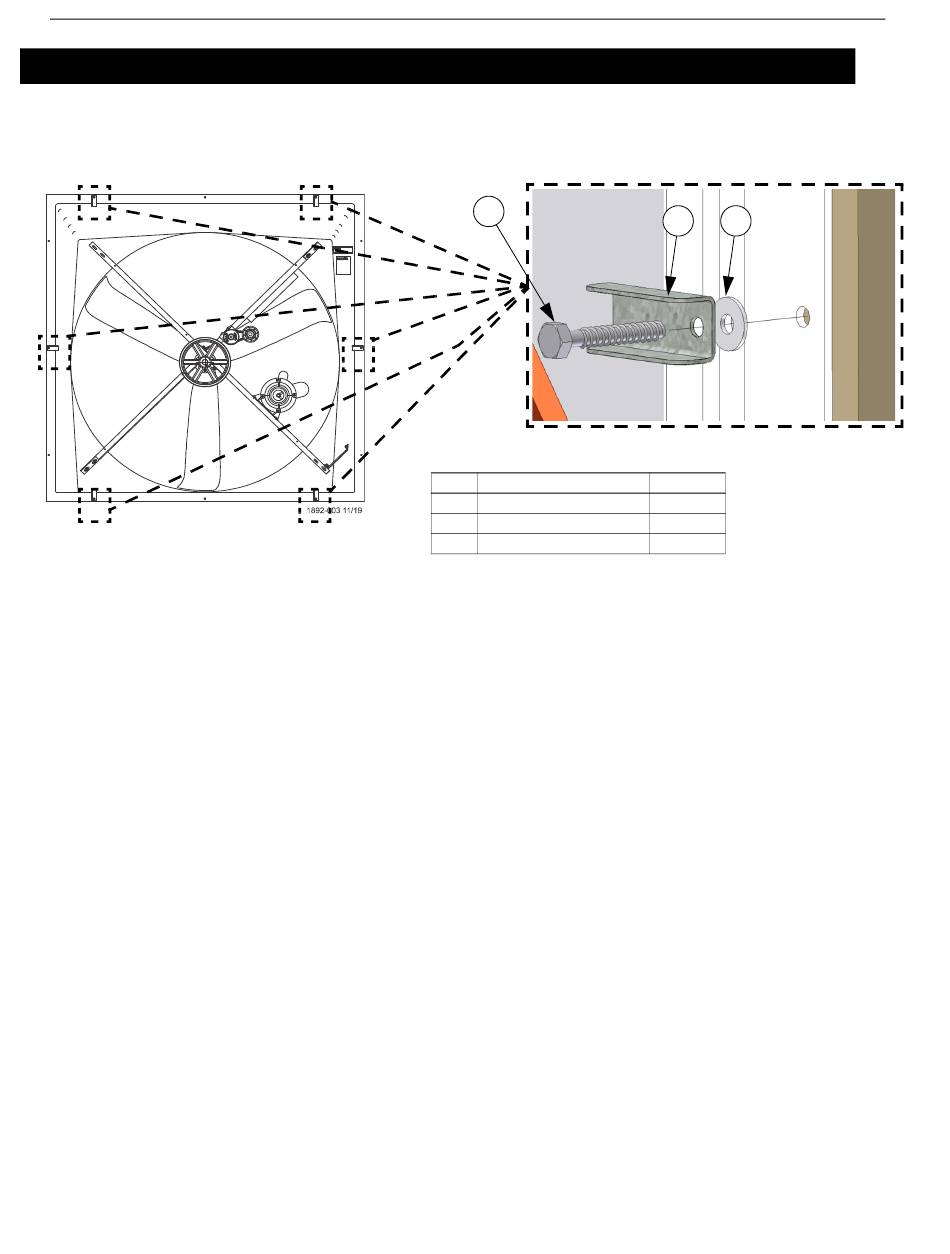

Insert the Fan Assembly in the wall opening and secure using the (12) 1/4 x 1-3/4 Lag Screws, (6) Shutter
Clips, and (6) Nylon Washers provided. The Shroud is pre-drilled. The hardware must be installed as
shown in the Figure below. This allows for rotation of the Shutter Clips when installing Shutter.
Belt drive fan shown for reference only
Installation and Operators Instruction Manual
1
Key
Description
1
1/4 x 1-3/4 SS Lag Screw 41561
2
Shutter Clip
3
Nylon Washer
3
2
3
Part No.
36729
4856
