Endura® DD Flush Mount Fan New Installation Planning
Endura ® DD Flush Mount Fan New Installation Planning
Planning the layout of the spacing between Fans is very important. Spacing too close together will cause
interference between the discharge Cones. See the Invertek ODE-3 IP66 Outdoor User Guide, (MV2493) at
www.choretime.com/documents, Manuals, Ventilation, Fans & Shutters, 57-Inch Endura Fans, MV2493
for additional drive mounting requirements.
6" [15.2cm]
12" [30.5cm]
Outside the Wall Installation
6
!Important: Provide Shelter over Cones in areas where
snow or ice could cause damage. CTB, Inc. Warranty Does
Not cover damage from external sources.

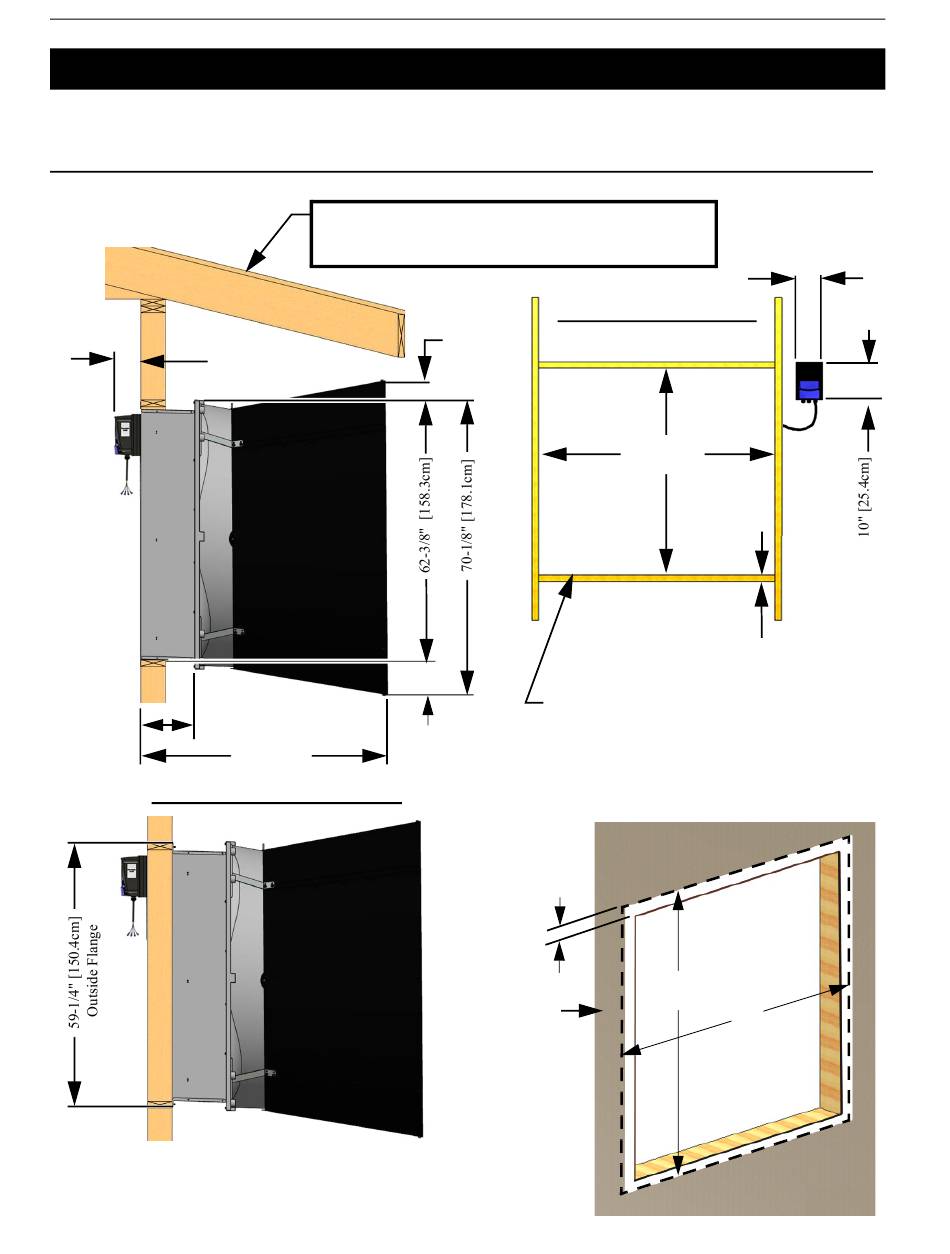

7-13/16"
54-15/16"
[19.8cm]
[139.4cm]
57" Flush Mount Direct Drive Endura® Fan
Frame Rough Opening
4-1/2"
[10.9cm]
Important!
(Through Wall or Outside Mounting)
For Outside Wall Mounting
"X" =59-1/2" [151.1cm] Minimum
Flat Mounting Surface Required
1-1/2"
[3.8cm] Typ.
Important!
Fan Mounting
Surface must be
Flat.
6-3/8"
[11.4cm]
56-1/2"
[143.51m]
1-3/4" [4.4cm] required at
the bottom of the opening.
Fan mounting surface must be flat.
X
X
Outside Wall
MV2494A
