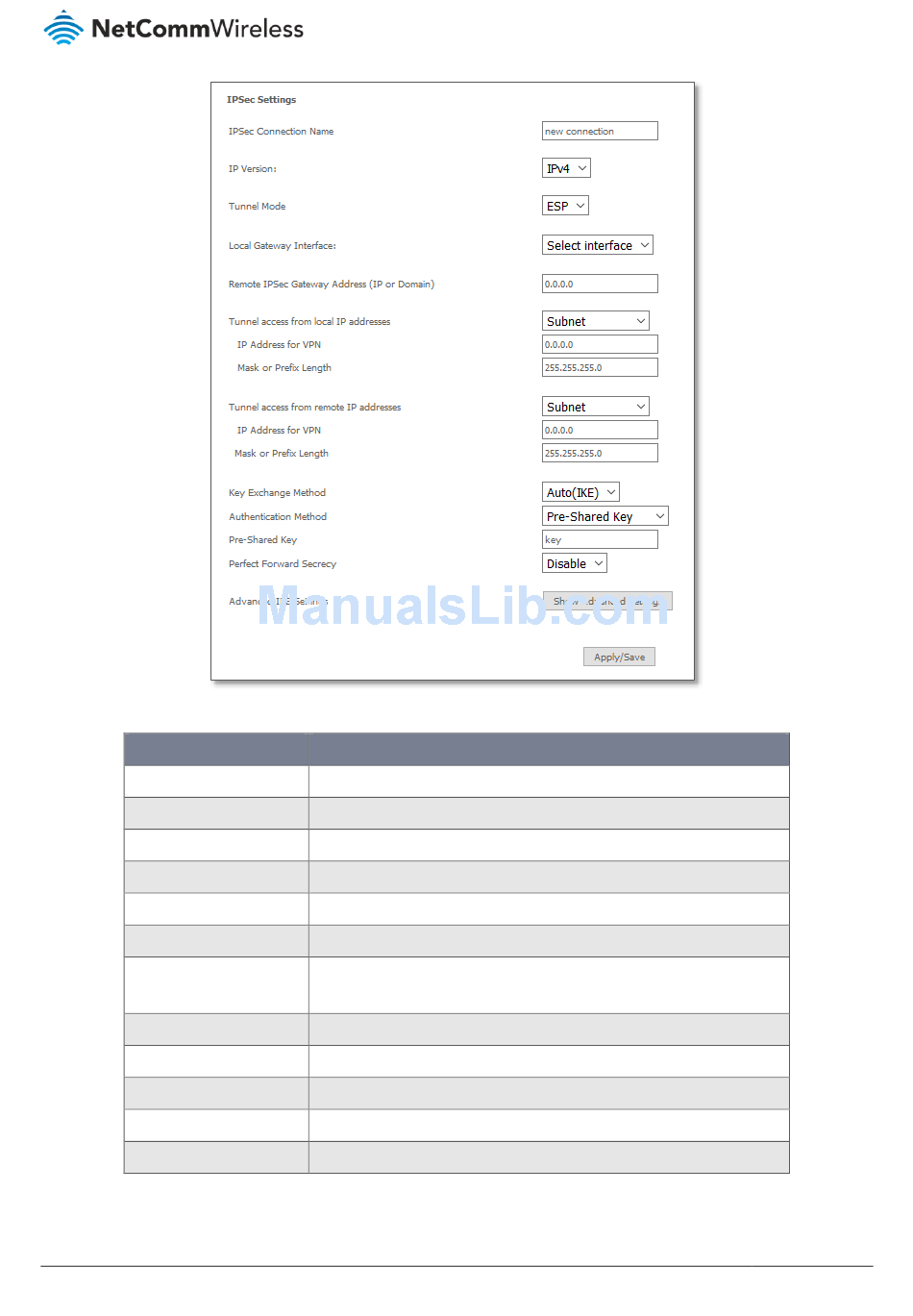

Figure 93 - Ipsec Configuration - NetCommWireless NF18ACV User Manual

Parameter
IPSec Connection Name
Tunnel Mode
Remote IPSec Gateway
Tunnel access from Local
IP Address from VPN
Subnet mask for VPN
Tunnel Access from
Remote
IP Address for VPN
Subnet mask for VPN
Key Exchange Method
Authentication Method
Pre-Shared Key
VDSL/ADSL2+ Dual Band AC1600 Gigabit Gateway with VoIP
Figure 93 – IPSeC configuration
Enter a name to identify the IPSec tunnel.
Select the applicable IPSec tunnel mode.
Enter the IP Address of the IPSec server to connect to.
Select which remote addresses local IPSec connections are able to access .
Enter the IP Address to be used locally for the IPSec tunnel.
Enter the subnet mask to be used locally for the IPSec tunnel.
Select which local addresses remote IPSec connections are able to access.
Enter the IP Address to be used on the remote end for the IPSec tunnel.
Enter the subnet mask to be used on the remote end for the IPSec tunnel.
Select the type of IPSec exchange is to be used on the IPSec tunnel.
Select the applicable authentication for the IPSec tunnel.
Enter the pre-shared key (if applicable) to grant access to the IPSec tunnel.
