VDSL

a Select VDSL and click the Next button.
e Select the WAN mode for your internet connection as specified by your Internet Service Provider (ISP).
Click the Next button.
f Select the correct VLAN option for your connection.
For New Zealand customers, the requirement for VDSL is VLAN tag 10.
If you are not sure of the tagging requirement for your connection, please contact your ISP.
Click the Next button.
VDSL/ADSL2+ Dual Band AC1600 Gigabit Gateway with VoIP

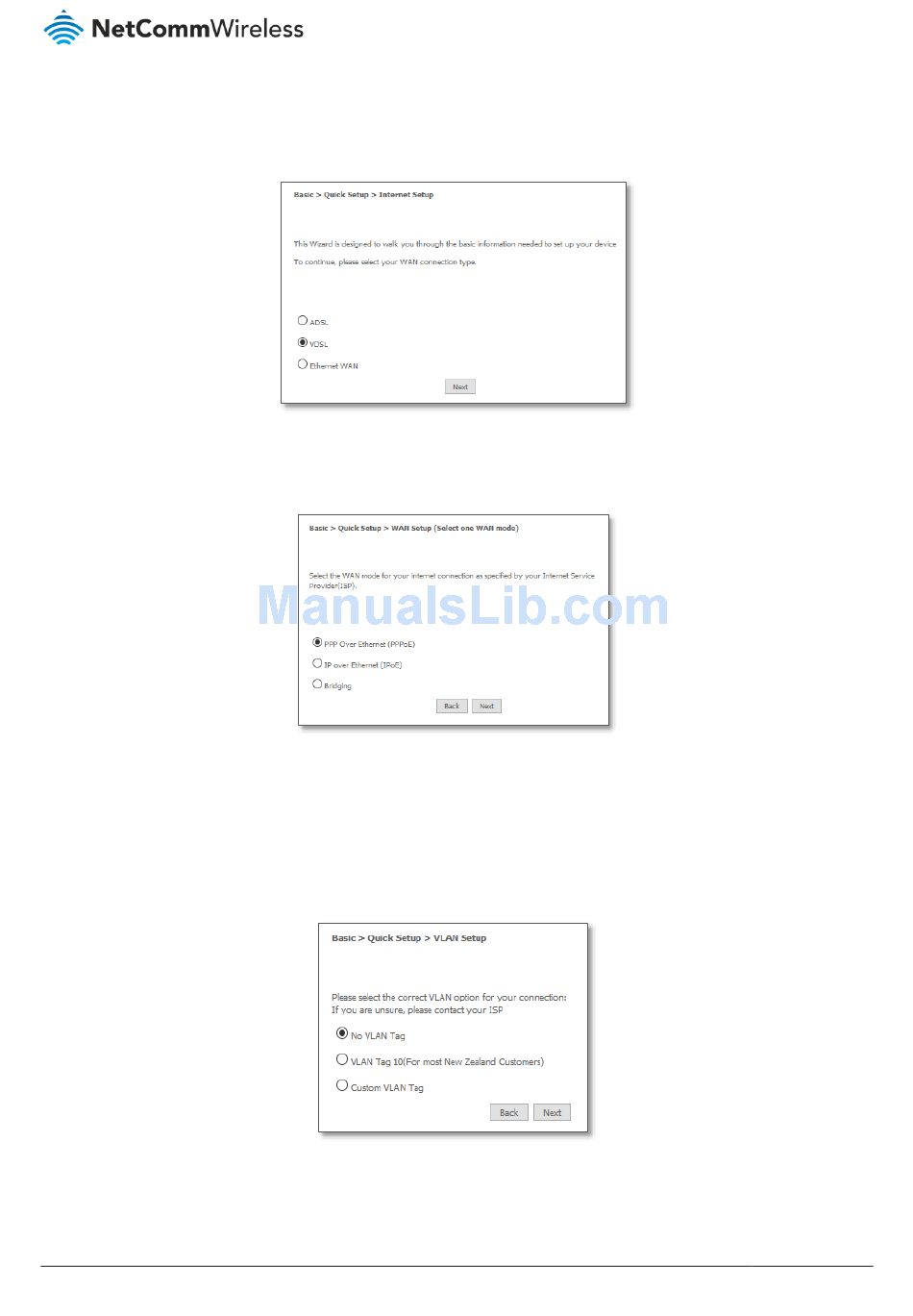

Figure 7 – NF18ACV router – Select VDSL as WAN connection type
Figure 8 – Select WAN mode for VDSL connection
Figure 9 – Select VLAN option for VDSL connection
