MAC Filtering

The NF18ACV offers the ability to use MAC Address filtering on ATM PVCs. You can elect to block or allow connections based
on MAC Address criteria. The default policy is to allow all connections.
Click Add to enter a new MAC Address filter.
1 Enter the Protocol type to which the filter should apply.
2 Enter the Source and Destination MAC Address
3 Enter the Frame Direction of the traffic to filter
4 Select the WAN interface to which the filter should apply.
Click Apply/Save to save the new MAC filtering configuration.
52 of 131
© NetComm Wireless 2017

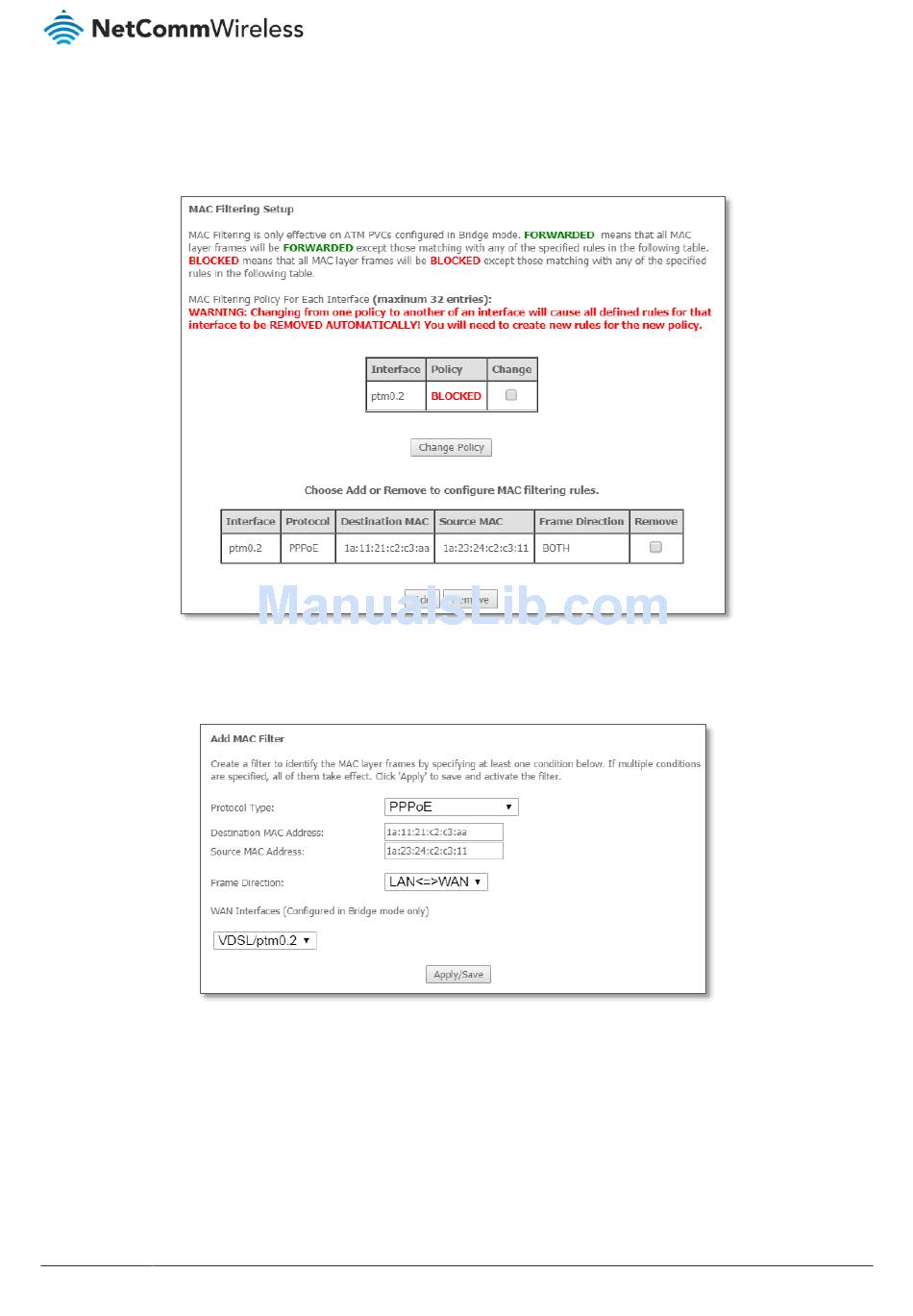

Figure 53 – Security – MAC Filter list
Figure 54 – Security – MAC Filter settings
