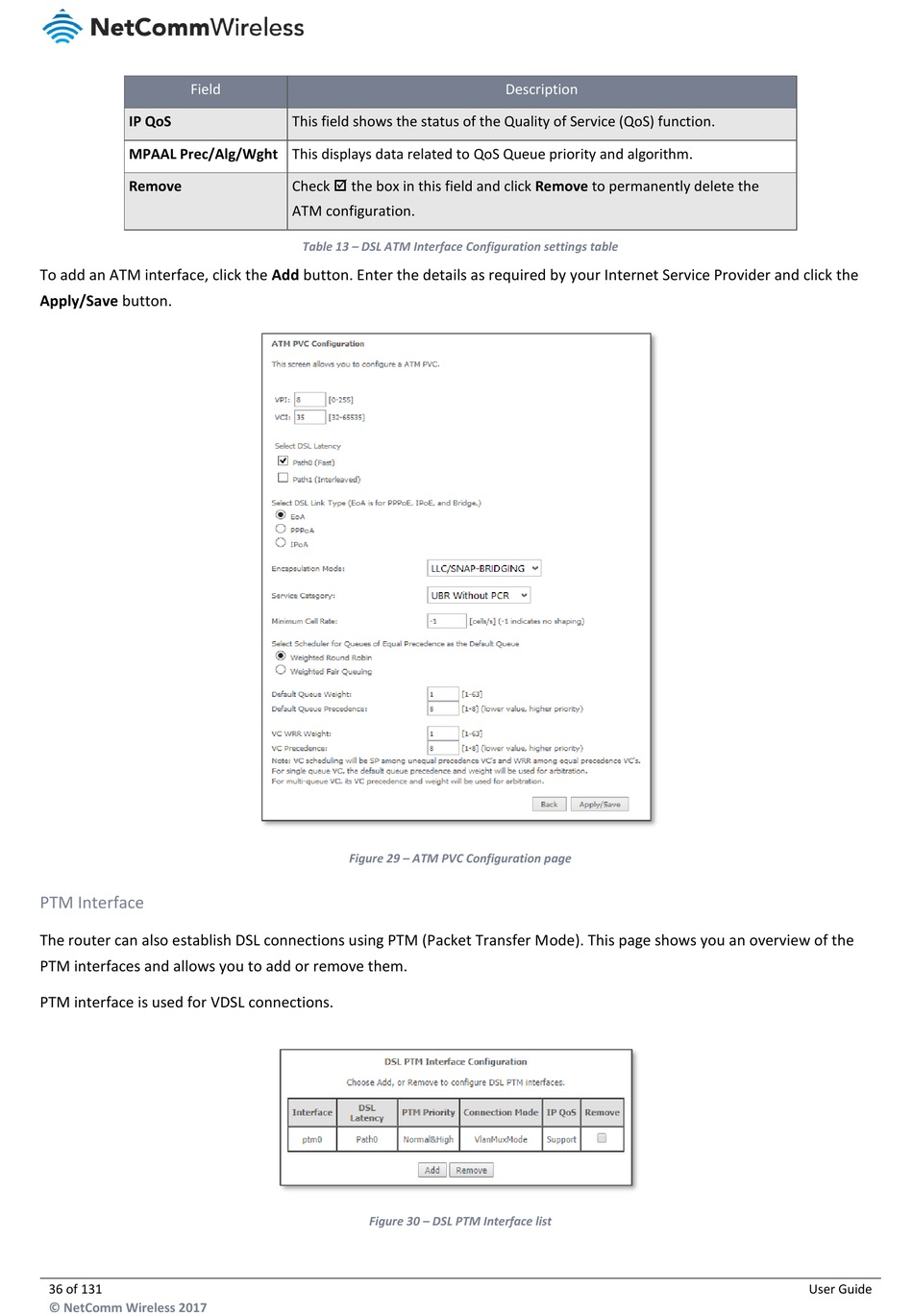

Ptm Interface; Figure 29 - Atm Pvc Configuration Page; Figure 30 - Dsl Ptm Interface List; Table 13 - Dsl Atm Interface Configuration Settings Table - NetCommWireless NF18ACV User Manual

Field
IP QoS
MPAAL Prec/Alg/Wght This displays data related to QoS Queue priority and algorithm.
Remove
To add an ATM interface, click the Add button. Enter the details as required by your Internet Service Provider and click the
Apply/Save button.

PTM Interface

The router can also establish DSL connections using PTM (Packet Transfer Mode). This page shows you an overview of the
PTM interfaces and allows you to add or remove them.
PTM interface is used for VDSL connections.
36 of 131
© NetComm Wireless 2017
This field shows the status of the Quality of Service (QoS) function.
Check  the box in this field and click Remove to permanently delete the
ATM configuration.
Table 13 – DSL ATM Interface Configuration settings table
Figure 29 – ATM PVC Configuration page
Figure 30 – DSL PTM Interface list
Description
User Guide
