QoS Queue

Click the Add button to add a QoS Queue. The following screen is displayed.
The above screen allows you to configure a QoS queue entry and assign it to a specific network interface. Each of the queues
can be configured for a specific precedence. The queue entry configured here will be used by the classifier to place ingress
packets appropriately.
Note – Precedence level 1 relates to higher priority while precedence level 3 relates to lower priority.
56 of 131
© NetComm Wireless 2017

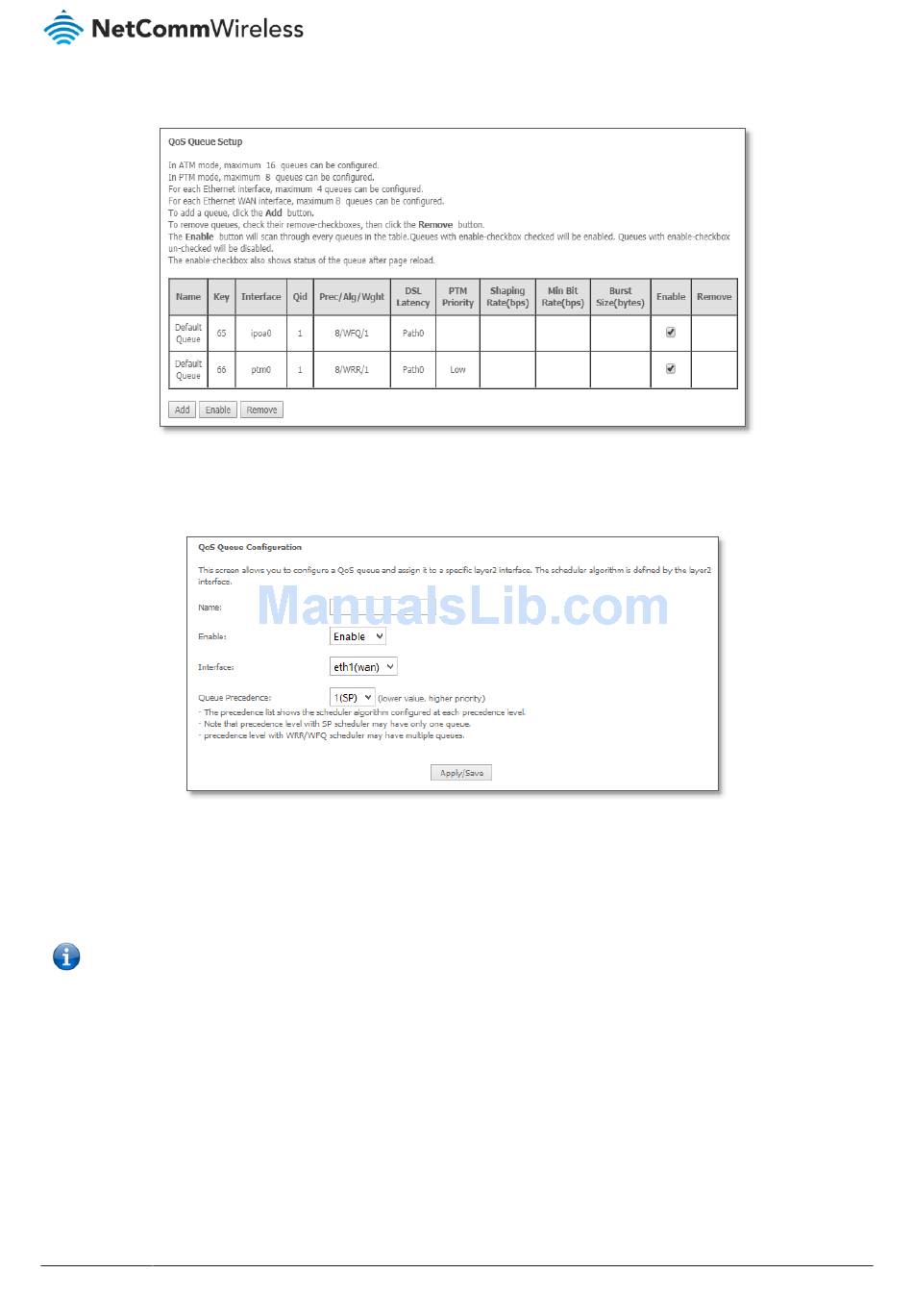

Figure 60 – Advanced – QoS Queue Setup
Figure 61 – Advanced – QoS – Add QoS Queue
