DNS Proxy

To enable DNS Proxy settings, select  Enable DNS Proxy and then enter the Host name of the Broadband Router and
Domain name of the LAN network, as in the example shown below. Click Apply/Save to continue.
The Host name and Domain name are combined to form a unique label that is mapped to the router IP address. This can be
used to access the user interface of the router with a local name rather than by using the router IP address. For example, you
can access your router by entering http://NF18ACV into your web browser.

DLNA

The DLNA page allows you to enable or disable and configure the digital media server. This means you can have digital media
stored on an external USB hard drive connected to the NF18ACV and the router will make it accessible to other devices on
your network.
Select  Enable on-board digital media server and then use the drop down list to select the Interface. In the Media Library
Path field, enter the path to the media and then enter a period between media library updates in seconds.
Click the Apply/Save button when you have finished.
68 of 131
© NetComm Wireless 2017

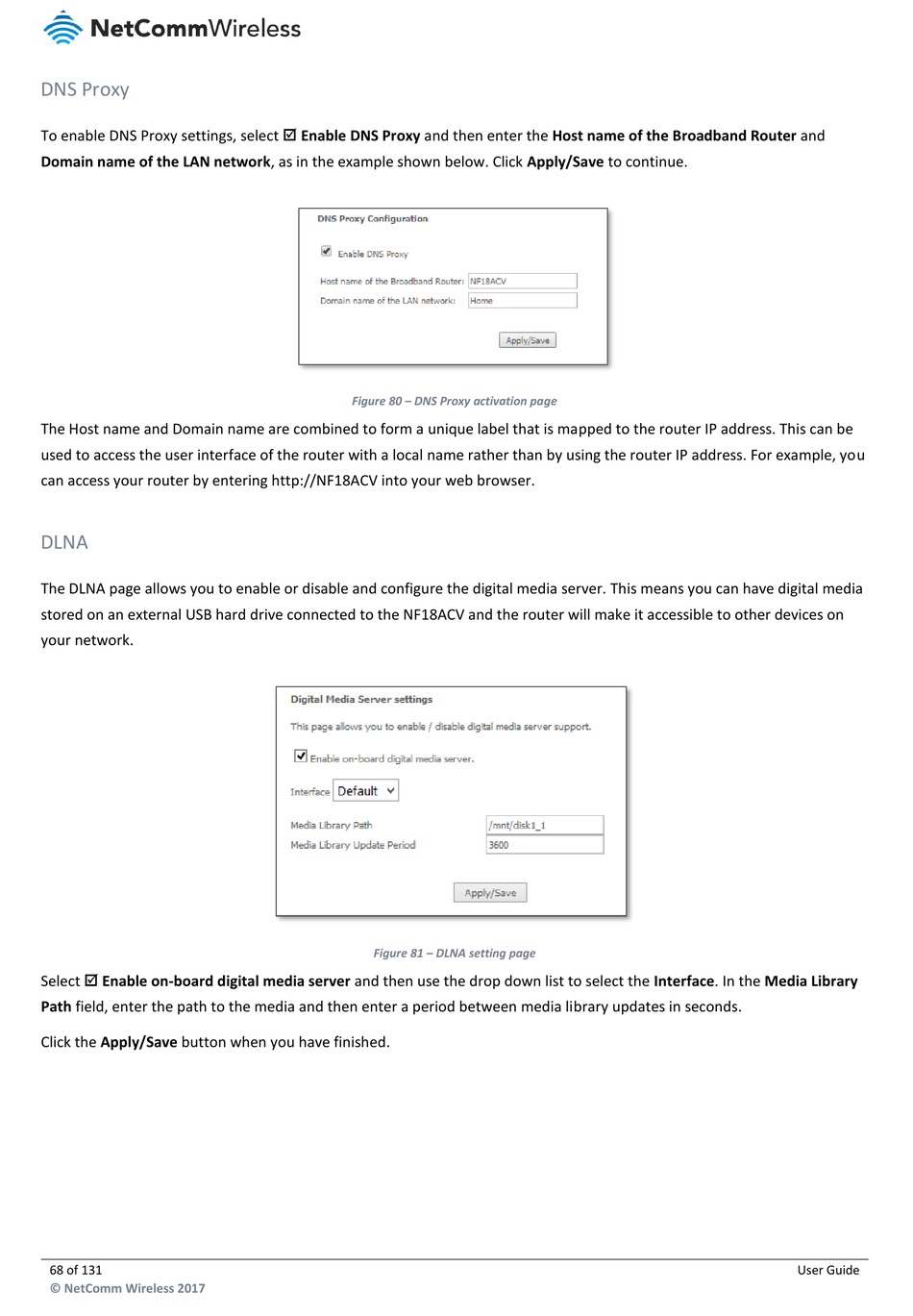

Figure 80 – DNS Proxy activation page
Figure 81 – DLNA setting page
