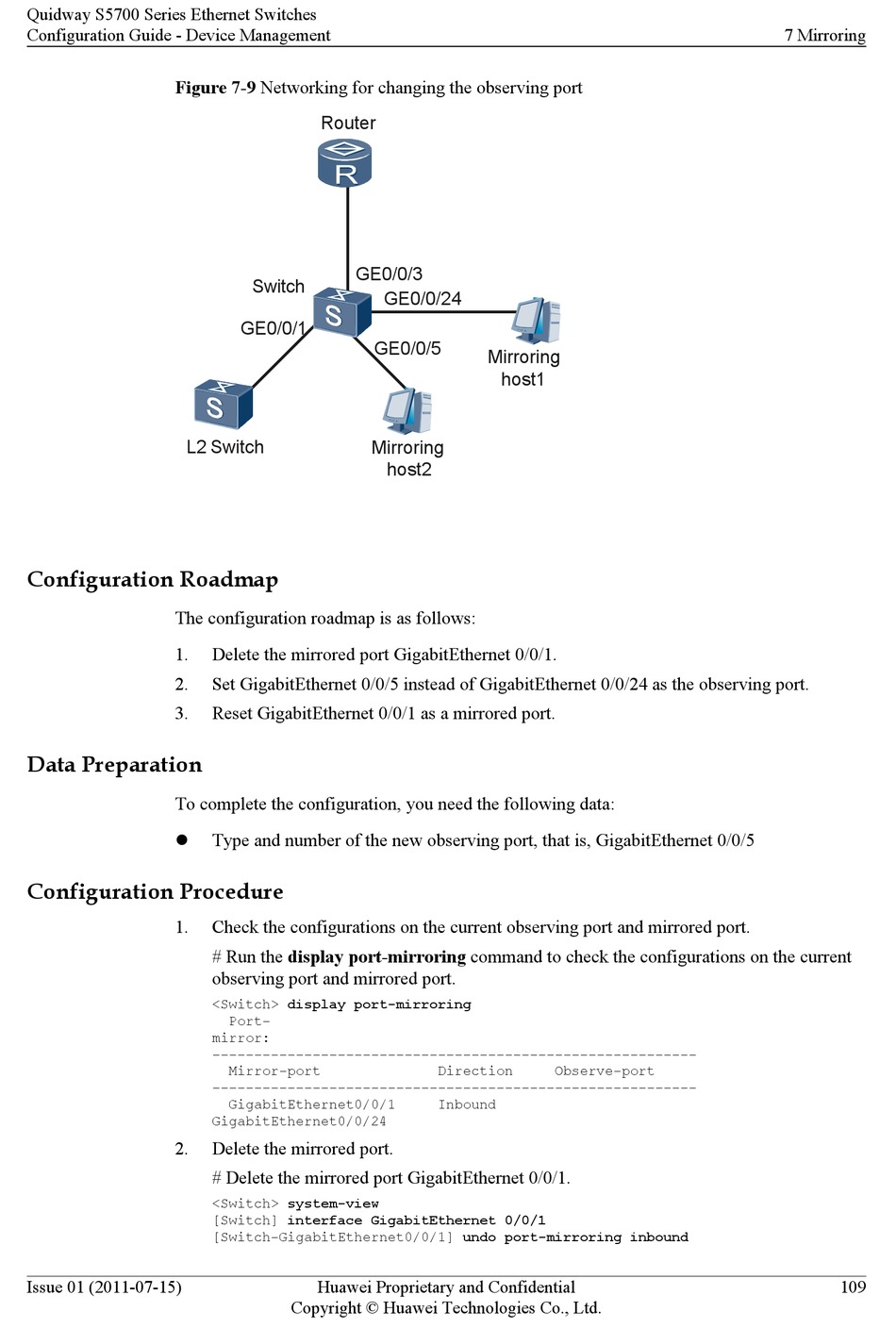

Figure 7-9 Networking for changing the observing port
L2 Switch
Configuration Roadmap
The configuration roadmap is as follows:
1.
2.
3.
Data Preparation
To complete the configuration, you need the following data:
l
Configuration Procedure
1.
2.
Issue 01 (2011-07-15)
Router
GE0/0/3
Switch
GE0/0/1
GE0/0/5
Mirroring
Delete the mirrored port GigabitEthernet 0/0/1.
Set GigabitEthernet 0/0/5 instead of GigabitEthernet 0/0/24 as the observing port.
Reset GigabitEthernet 0/0/1 as a mirrored port.
Type and number of the new observing port, that is, GigabitEthernet 0/0/5
Check the configurations on the current observing port and mirrored port.
# Run the display port-mirroring command to check the configurations on the current
observing port and mirrored port.
<Switch> display port-mirroring
Port-
mirror:
----------------------------------------------------------
Mirror-port
----------------------------------------------------------
GigabitEthernet0/0/1
GigabitEthernet0/0/24
Delete the mirrored port.
# Delete the mirrored port GigabitEthernet 0/0/1.
<Switch> system-view
[Switch] interface GigabitEthernet 0/0/1
[Switch-GigabitEthernet0/0/1] undo port-mirroring inbound
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
GE0/0/24
Mirroring
host1
host2
Direction
Inbound
Observe-port
7 Mirroring
