Product Description HUAWEI B593s-22 LTE CPE V200R001 Issue Date 2013-06-09 HUAWEI TECHNOLOGIES CO., LTD. - Page 2 HUAWEI B593s-22 LTE CPE V200R001 Product Description Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang...
- Page 3 Product Description About This Document Purpose This document describes the main functions, supported services, and system architecture of the HUAWEI B593s-22 Long Term Evolution (LTE) Customer-Premises Equipment (CPE) V200R001 (B593s-22 for short). This document is organized as follows. Chapter Description...
- Page 4 HUAWEI B593s-22 LTE CPE V200R001 Product Description Change History Version Change Description Date First release 2013-02-08 Change the maximum transmit power 2013-05-16 Change the maximum transmission rate of the LTE. Change the antenna gain. Change the Ethernet cable from mandatory to optional in chapter 5.
-
Page 5: Table Of Contents
HUAWEI B593s-22 LTE CPE V200R001 Product Description Contents 1 Overview ............................6 2 Product Features ......................... 8 2.1 Main Features ..............................8 2.2 Technical Specifications ..........................9 2.2.1 Hardware Specifications ........................9 2.2.2 Antenna Specifications ........................11 2.2.3 Software Specifications ........................12 3 Services and Applications ....................... -
Page 6: Overview

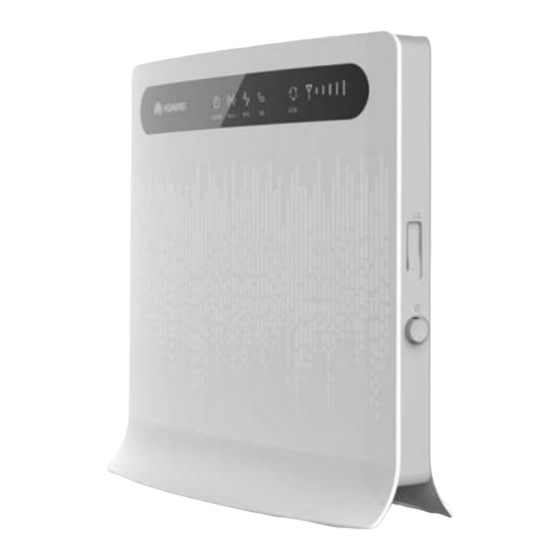

HUAWEI B593s-22 LTE CPE V200R001 Product Description Overview As a high-performance LTE CPE device, the B593s-22 enables home office (SOHO) users to get access to wireless and wired networks. The B593s-22 supports the following frequency bands: − Frequency division duplex (FDD): 2600/2100/1800/900/800 MHz Time division duplex (TDD): 2600 MHz −... - Page 7 HUAWEI B593s-22 LTE CPE V200R001 Product Description Figure 1-1 shows the appearance of the B593s-22. Figure 1-1 B593s-22 appearance Issue 03 (2013-06-09) Commercial in Confidence...
-
Page 8: Product Features
HUAWEI B593s-22 LTE CPE V200R001 Product Description Product Features 2.1 Main Features The following lists the main features of the B593s-22: Access to LTE/DC-HSPA+/HSPA+/HSPA/UMTS wireless networks Access to wired Ethernet networks On the Ethernet, LTE FDD downlink packet data service at a maximum transmission rate of 100 Mbit/s ... -
Page 9: Technical Specifications
HUAWEI B593s-22 LTE CPE V200R001 Product Description Windows XP, Windows Vista, Windows 7, Windows 8, and Mac OS X 10.6, 10.7, and 10.8 LTE external antenna port USB 2.0 host port Personalized light emitting diode (LED) indicators 2.2 Technical Specifications... - Page 10 HUAWEI B593s-22 LTE CPE V200R001 Product Description Item Description One reset button LED indicators One power indicator One WLAN indicator One WPS indicator One telephone indicator One mode indicator One signal strength indicator Four LAN indicators Maximum LTE: Conform to Power Class 3 Definition...
-
Page 11: Antenna Specifications
HUAWEI B593s-22 LTE CPE V200R001 Product Description 2.2.2 Antenna Specifications Built-in Antenna Table 2-2 Specifications of the LTE main antenna Item Description Frequency range 790–2690 MHz 50 Ω Input impedance Standing wave < 3 ratio (SWR) Efficiency > 50% (790–960 MHz); > 60% (1400–2690 MHz) Gain 0–3 dBi... -
Page 12: Software Specifications
HUAWEI B593s-22 LTE CPE V200R001 Product Description Table 2-5 Specifications of the LTE external antenna at 2500 MHz to 2690 MHz Item Description Frequency range 2500–2690 MHz 50 Ω Input impedance < 2 Efficiency > 60% Gain ( 5 dBi... - Page 13 HUAWEI B593s-22 LTE CPE V200R001 Product Description Item Description Filters LAN IP addresses. Filters URLs. Supports port forwarding. Supports demilitarized zone (DMZ). Supports Universal Plug and Play (UPnP). Supports Application Level Gateway (ALG) settings. Supports 10/100 Mbit/s autonegotiation. Supports auto MDI/MDIX.
- Page 14 HUAWEI B593s-22 LTE CPE V200R001 Product Description Item Description System Operating system: supports Windows XP, Windows Vista, requirements Windows 7, Windows 8, and Mac OS X 10.6, 10.7, and 10.8. Hardware configuration: meets the configuration requirements of the operating system.
-
Page 15: Services And Applications
HUAWEI B593s-22 LTE CPE V200R001 Product Description Services and Applications 3.1 Data Services By connecting to the B593s-22 over a wireless or wired network, SOHO users can get access to high-speed Internet services. The B593s-22 can simultaneously set up wireless connections with 32 Wi-Fi devices and establish a local area network (LAN) by connecting to concentrators and switches. -
Page 16: Voice Services
HUAWEI B593s-22 LTE CPE V200R001 Product Description 3.2 Voice Services The B593s-22 provides two telephone ports to which users can connect telephones to implement basic voice functions or connect fax machines (optional) to use fax services. Figure 3-2 B593s-22 connected to telephones... -
Page 17: Usb Sharing Services
HUAWEI B593s-22 LTE CPE V200R001 Product Description 3.3 USB Sharing Services With one USB port, the B593s-22 can function as a file sharing center. Users can connect a USB storage device to the USB port on the B593s-22 to save and share files. -
Page 18: User Authentication
HUAWEI B593s-22 LTE CPE V200R001 Product Description 3.4.2 User Authentication The B593s-22 complies with the following user authentication protocols: WPA-PSK WPA2-PSK 3.4.3 PIN Protection If PIN protection is enabled, after the B593s-22 restarts, users must enter the correct PIN each time they log in to the web management page. -
Page 19: System Architecture
HUAWEI B593s-22 LTE CPE V200R001 Product Description System Architecture 4.1 System Architecture Diagram Figure 4-1 shows the B593s-22 system architecture. Figure 4-1 B593s-22 system architecture 4.2 Functional Modules LTE/UMTS/GSM modem − Processes baseband and radio frequency (RF) signals for... - Page 20 HUAWEI B593s-22 LTE CPE V200R001 Product Description LAN switch Transmits data over Ethernet ports. Wi-Fi access point (AP) Enables wireless devices to connect to a LTE/UMTS/GSM network using Wi-Fi or related standards. USB 2.0 host port Connects a USB storage device to the B593s-22.
-
Page 21: Packing List
HUAWEI B593s-22 LTE CPE V200R001 Product Description Packing List Table 5-1 lists the items included with the B593s-22. Table 5-1 Items in the B593s-22 package Item Quantity Remarks LTE CPE Mandatory Power adapter Mandatory Ethernet cable Mandatory Quick Start Mandatory... -
Page 22: A Acronyms And Abbreviations
HUAWEI B593s-22 LTE CPE V200R001 Product Description Acronyms and Abbreviations Numerics The Third Generation Alternating Current Advanced Encryption Standard Application Level Gateway Address Resolution Protocol Access Point Access Point Name Customer-Premises Equipment Direct Current DC-HSPA+ Dual Carrier High Speed Packet Access Plus... - Page 23 HUAWEI B593s-22 LTE CPE V200R001 Product Description GPRS General Packet Radio Service Global System for Mobile Communications HSPA+ High Speed Packet Access Plus HSPA High Speed Packet Access HSDPA High Speed Downlink Packet Access HSUPA High Speed Uplink Packet Access...
