Xilinx LogiCORE IP v1.02a Product Manual page 36

X-Ref Target - Figure 4-6
• Use GPI - Enable the General Purpose Input port.
• Number of Bits - Set the number of bits of the General Purpose Input port.
• Generate Interrupt - Generate an interrupt when a General Purpose Input changes.
The Interrupt parameter tab is shown in
I/O Module v1.02a
PG052 October 16, 2012

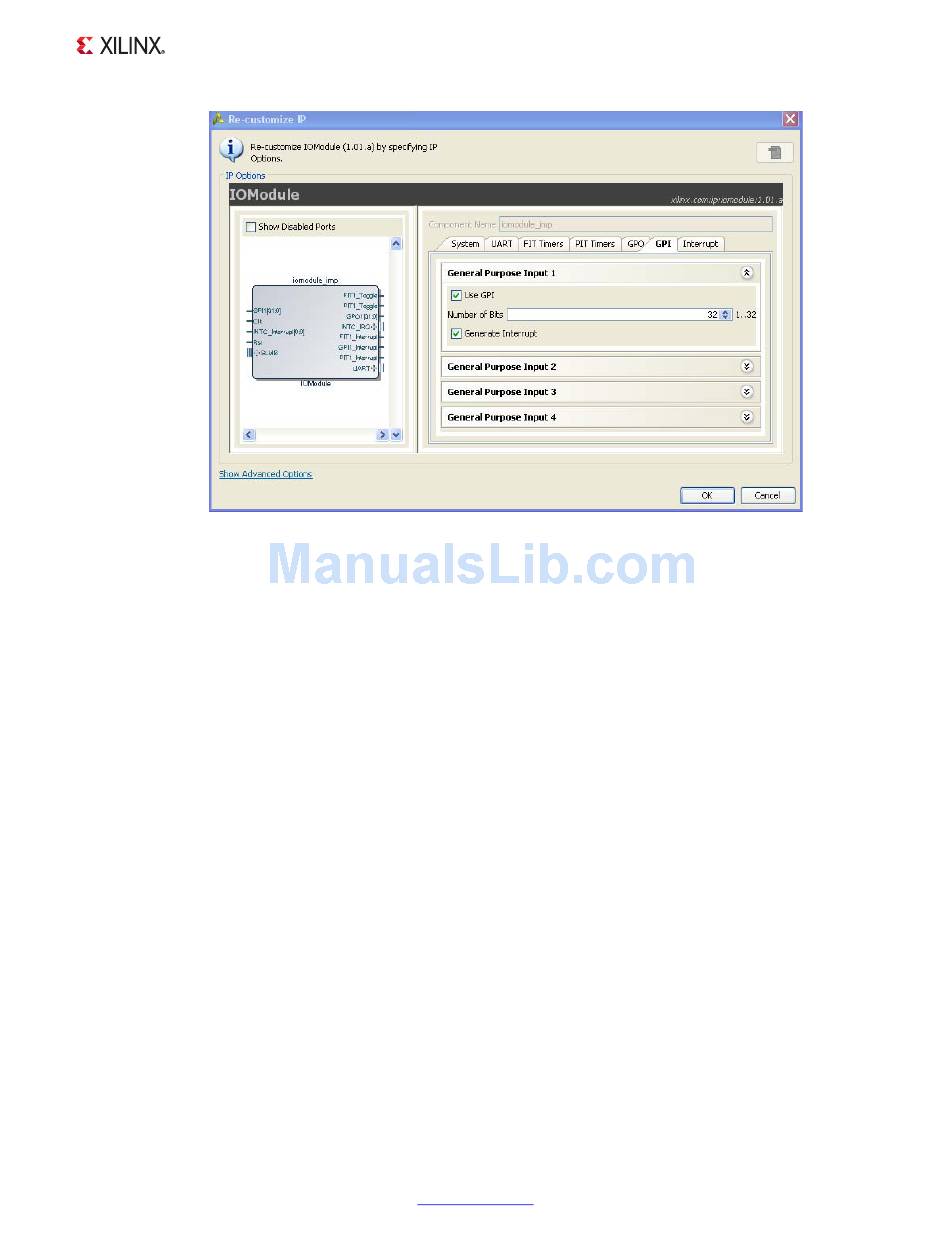

Figure 4-6: GPI Parameter Tab
Figure 4-7.
www.xilinx.com
GUI
36
