• Use GPO - Enable the General Purpose Output port.
• Number of Bits - Set the number of bits of the General Purpose Output port.
• Initial Value of GPO - Set the initial value of the General Purpose Output port. The
right most bit in the value is assigned to bit 0 of the port, the next right most to bit 1,
and so on.
The GPI parameter tab showing the parameters for one of the four General Purpose Input
ports is shown in
I/O Module v1.02a
PG052 October 16, 2012

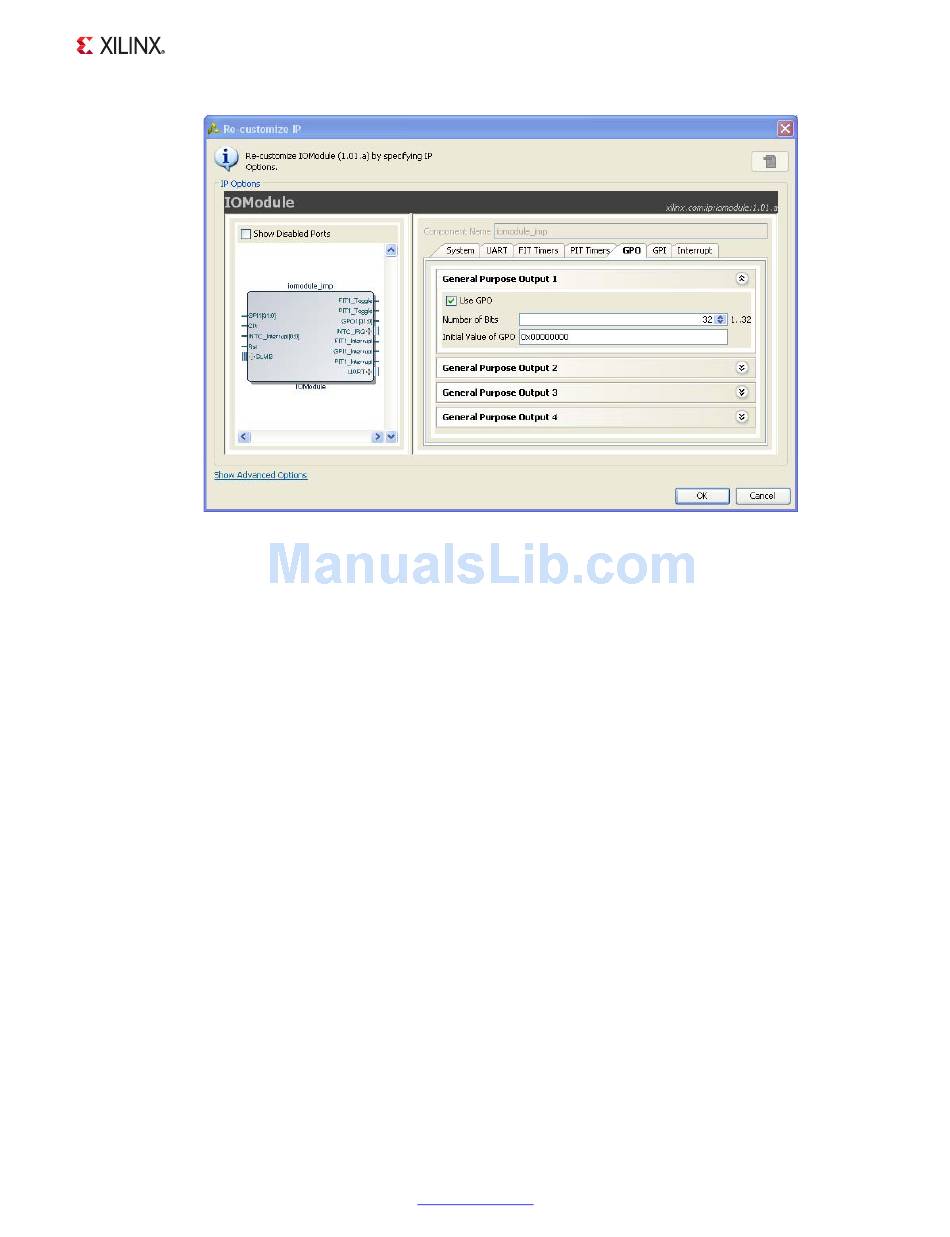

Figure 4-5: GPO Parameter Tab
Figure 4-6.
