Polycom Pano Administrator's Manual page 54

Procedure
1. Make sure the Polycom Pano systerm is running the latest software.
2. Set the HDMI splitter to Scaler.

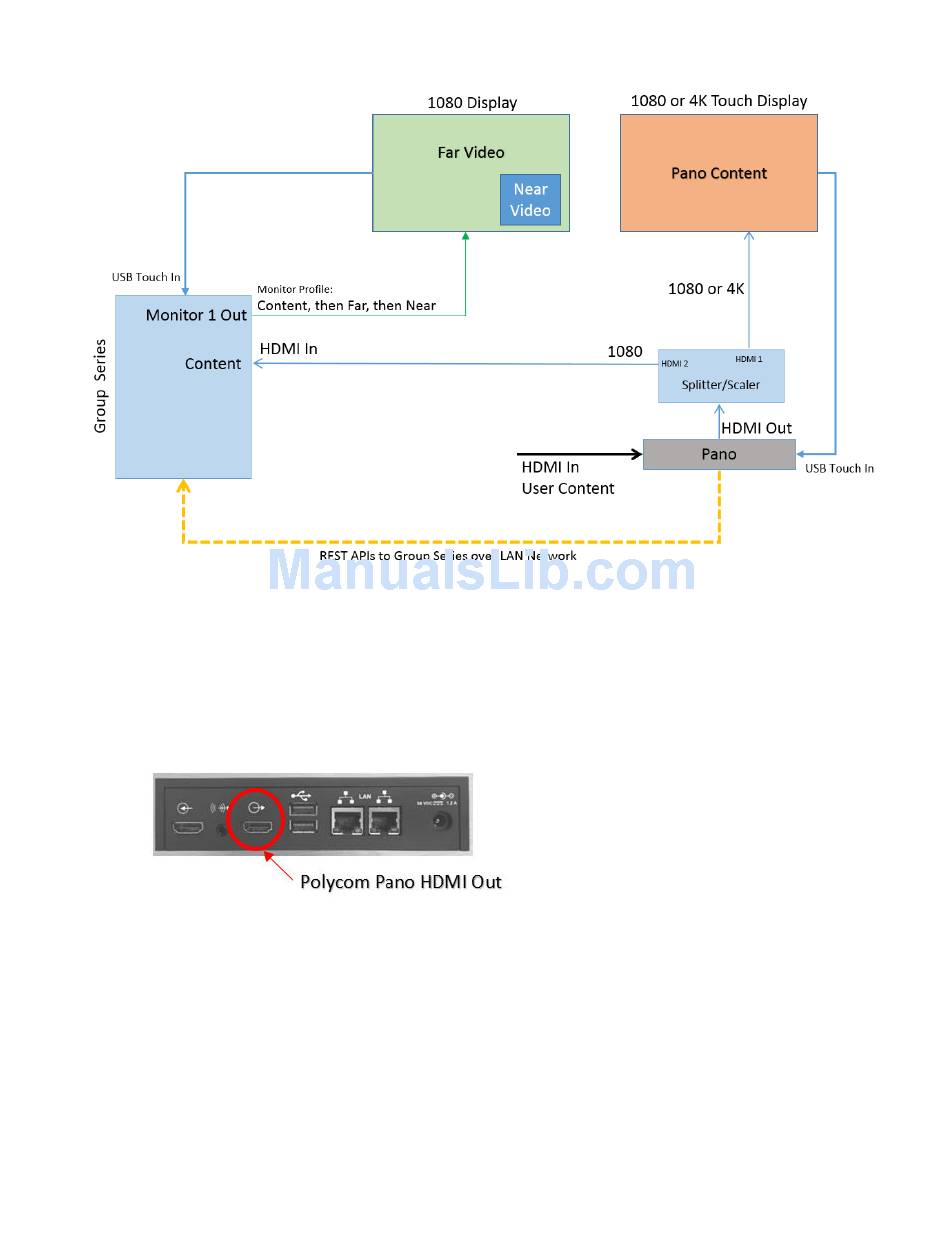

3. Connect one end of an HDMI cable to the splitter. Connect the other end of the HDMI cable to the
HDMI Out port on the Polycom Pano system, shown in the following figure:
4. Connect one end of an HDMI cable to HDMI 1 on the splitter. Connect the other end of the HDMI
cable to the HDMI In port on the Polycom Pano monitor.
5. Configure the Polycom Pano monitor settings:
a. Open a supported web browser and enter the IP address of the Polycom Pano system.
b. Go to General Settings > Monitor.
c. Select Manual for the Configure monitor option, and save your settings.
d. Select 3840x2160p 30 Hz for Resolution.
Polycom, Inc.
Sending Content to a Polycom Video System
52
