Procedure

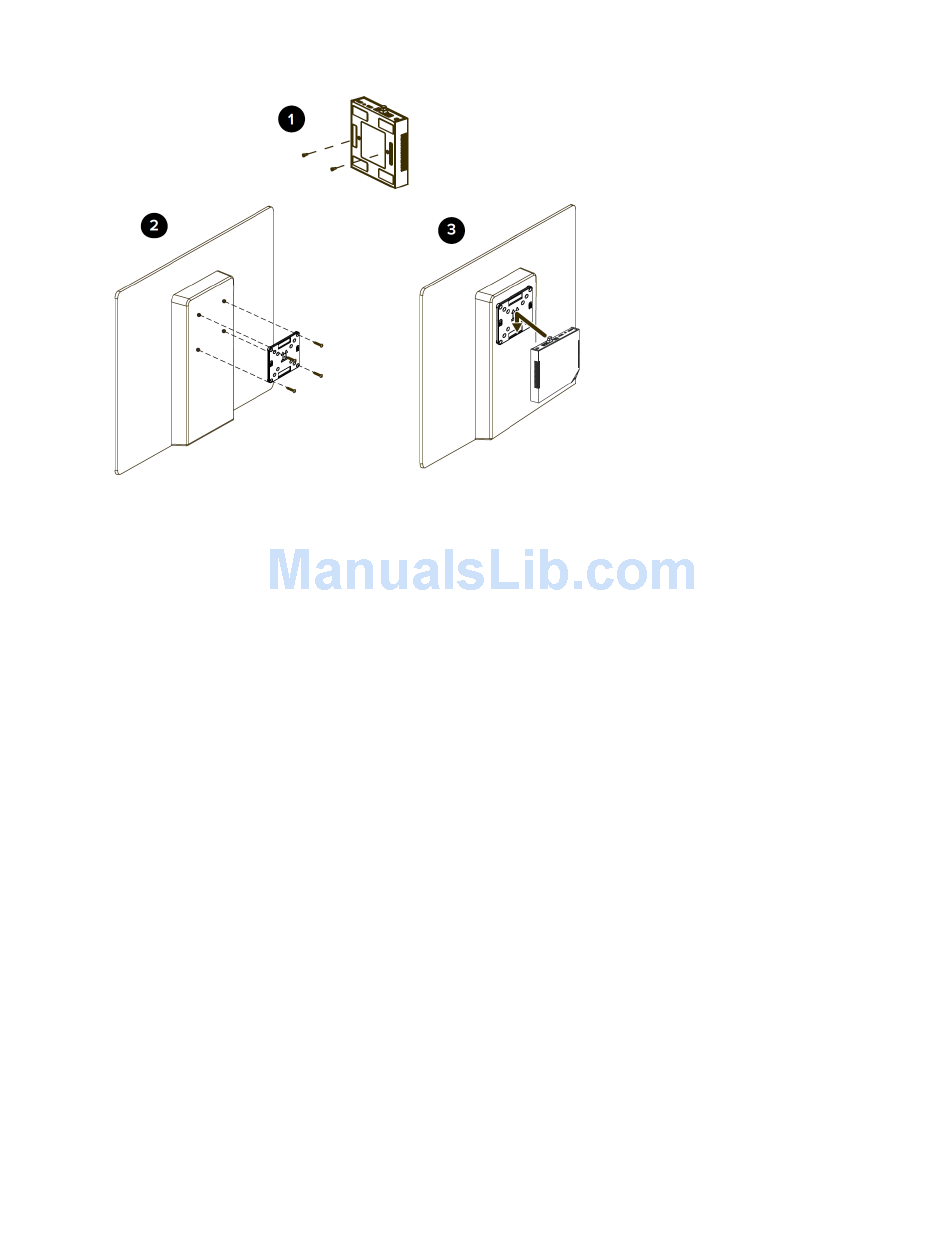

1. Make sure all cables are disconnected from the system, and then attach the two shoulder screws
from the mounting kit to the bottom of the system.
2. Using the four 4.5mm screws included in the mounting kit, attach the mounting plate to the back of
the monitor.
3. With the back panel facing up, insert the heads of the two shoulder screws on the Polycom Pano
system into the corresponding holes on the mounting plate. Then, gently push the Polycom Pano
system down until you hear a lock that indicates the device is secure.
4. Connect the cables, making sure to position them so that they are kept neatly in place and away
from heavy foot traffic to prevent accidental cable disconnections or damage
