Chapter 5: Jumpers and Connectors for VMC 4000 Series

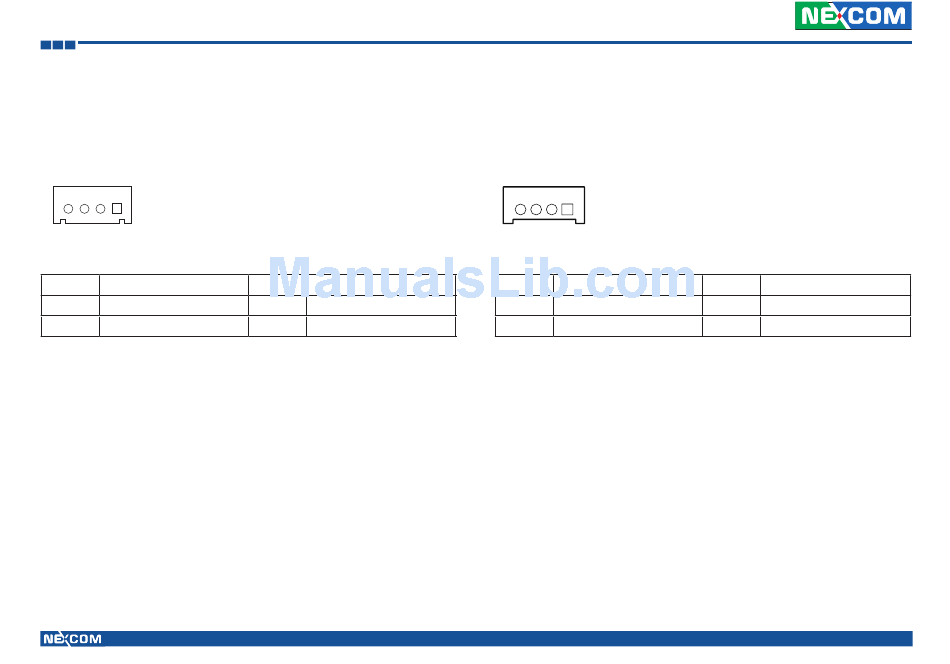

LAN1 Connector

Connector size: 1x4 4-pin header
Connector location: J3
4 1
Pin Definition
1 LAN_MDI_0P_R
3 LAN_MDI_1P_R
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 LAN_MDI_0N_R
4 LAN_MDI_1N_R
LAN1 Connector
Connector size: 1x4 4-pin header
Connector location: J4
4 1
Pin Definition
1 LAN_MDI_2P_R
3 LAN_MDI_3P_R
83
Pin Definition
2 LAN_MDI_2N_R
4 LAN_MDI_3N_R
