Installing a CAN Bus module

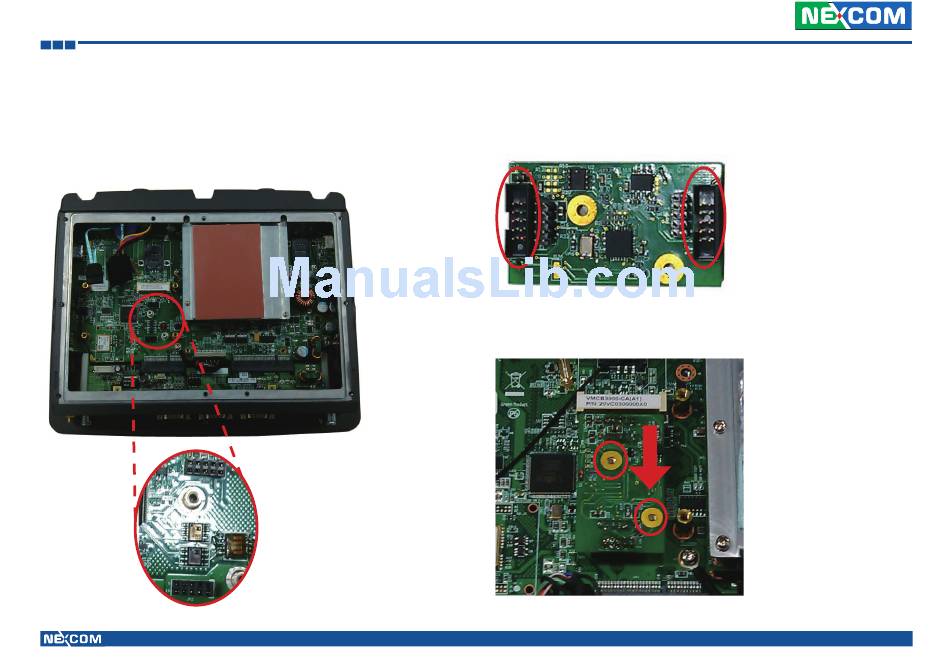

1. The pin header shown below is used to install a CAN Bus module.
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
2. Insert the CAN Bus module pin connector into the pin header of the
motherboard. Push the module down then secure it with a mounting screw.
CAN Bus Module
33
Push the module
down
VMC 3000/4000 Series User Manual
