Penmount Control Panel - Nexcom VMC 3000 User Manual

Chapter 7: Touchscreen Installation Guide

7.1.7.1 PenMount Control Panel

The functions under PenMount Control Panel are:

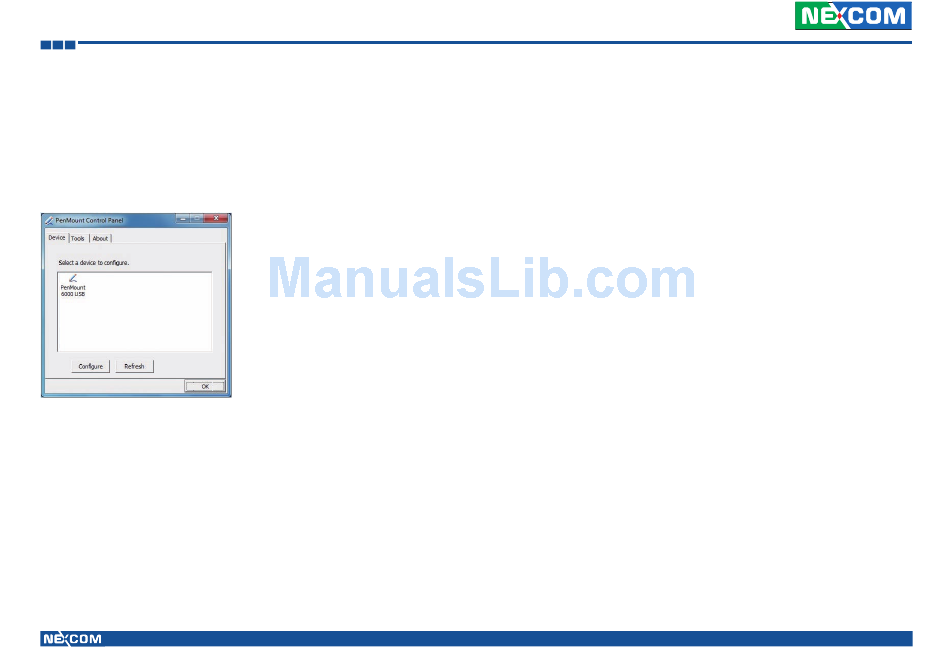

Device
In this window, you can find out how many devices are detected on your
system.
Calibrate
This function offers two ways to calibrate your touchscreen. 'Standard
Calibration' adjusts most touchscreens while 'Advanced Calibration'
adjusts aging touchscreens.
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Standard Click this button and arrows appear pointing to red
Calibration squares. Use your finger or stylus to touch the red
squares in sequence. After the fifth red point calibration
is complete. To skip, press 'ESC'.
Advanced Advanced Calibration uses 9, 16 or 25 points to
Calibration effectively calibrate touch panel linearity of aged
touchscreens. Click this button and touch the red
squares in sequence with a stylus. To skip, press 'ESC'.
Command Command call calibration function. Use command
Calibration mode call calibration function, this can uses 4, 9, 16
or 25 points to calibrate.
E.g. Please run ms-dos prompt or command prompt.
c:\Program Files\PenMount Universal Driver\DMCCtrl.exe
-calibration 4 (Standard Calibration)
DMCCtrl.exe - calibration ($)
4= Standard Calibration 4
9= Advanced Calibration 9
16= Advanced Calibration 16
25= Advanced Calibration 25
