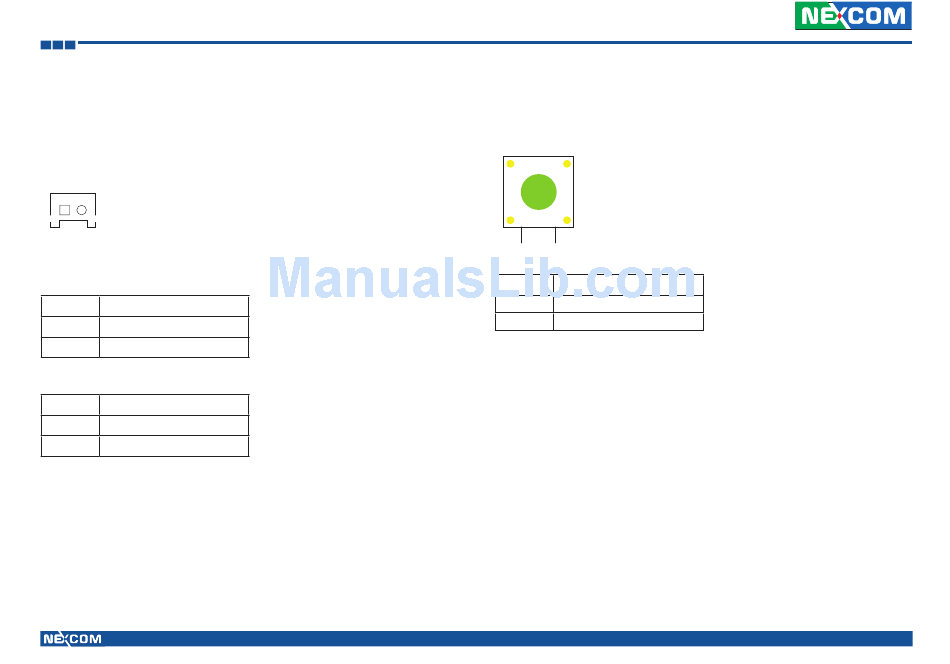

Chapter 5: Jumpers and Connectors for VMC 4000 Series
Speaker Connector
Connector size: 1x2 2-pin header, 1.0mm pitch
Connector location: J10 and J1
1
2
J10
Pin
Definition
1
FRONT_A_L+_RF
2
FRONT_A_L-_RF
J1
Pin
Definition
1
FRONT_A_R+_RF
2
FRONT_A_R-_RF
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Reset Button
Connector location: SW1
1
2
Pin
Definition
1
GND
2
RST_BTN#
68
VMC 3000/4000 Series User Manual
