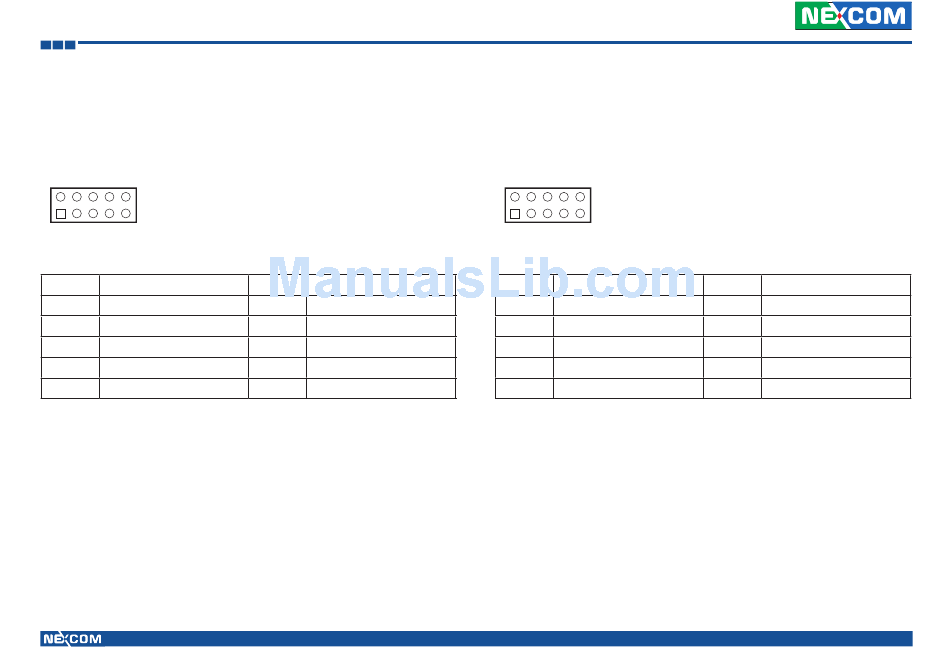

Chapter 5: Jumpers and Connectors for VMC 4000 Series
CANbus Input Connector
Connector size: 2x5 10-pin header
Connector location: JP2
2
10
1
9
Pin
Definition
1
CAN2_TXD
3
GAL_GPO4_DI
5
GND
7
NC
9
CAN_VCC
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin
Definition
2
CAN2_RXD
4
GAL_GPI4_DO
6
GND
8
NC
10
NC
CANbus Output Connector
Connector size: 2x5 10-pin header
Connector location: JP1
2
10
1
9
Pin
Definition
1
CAN2_H
3
CAN2_L
5
GND
7
NC
9
NC
75
Pin
Definition
2
C1708_2_H
4
C1708_2_L
6
GND
8
NC
10
NC
