Chapter 4: Jumpers and Connectors for VMC 3000 Series

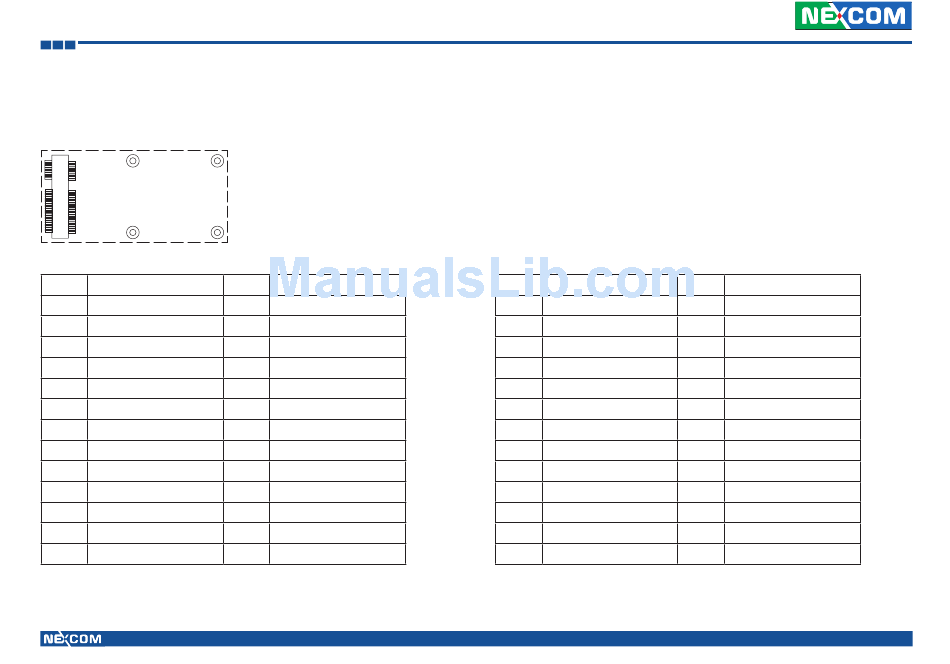

Mini-PCIe Connector (3.5G)

Connector location: CN5
1 2
51 52
Pin Definition
1 MIC +
3 MIC -
5 SPK +
7 GND
9 GND
11 VCC_MSM26_DIG
13 NC
15 GND
17 NC
19 NC
21 GND
23 NC
25 NC
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 +V3.3S
4 GND
6 NC
8 USIM PWR
10 USIM DATa
12 USIM CLK
14 USIM RST
16 NC
18 GND
20 W_DISABLE#
22 NC
24 NC
26 GND
Pin Definition
27 GND
29 GND
31 NC
33 RESET
35 GND
37 GND
39 +V3.3S
41 +V3.3S
43 GND
45 NC
47 NC
49 NC
51 NC
48
Pin Definition
28 NC
30 NC
32 NC
34 GND
36 USB_D-
38 USB_D+
40 GND
42 LED_WWAN#
44 NC
46 NC
48 NC
50 GND
52 +V3.3S
