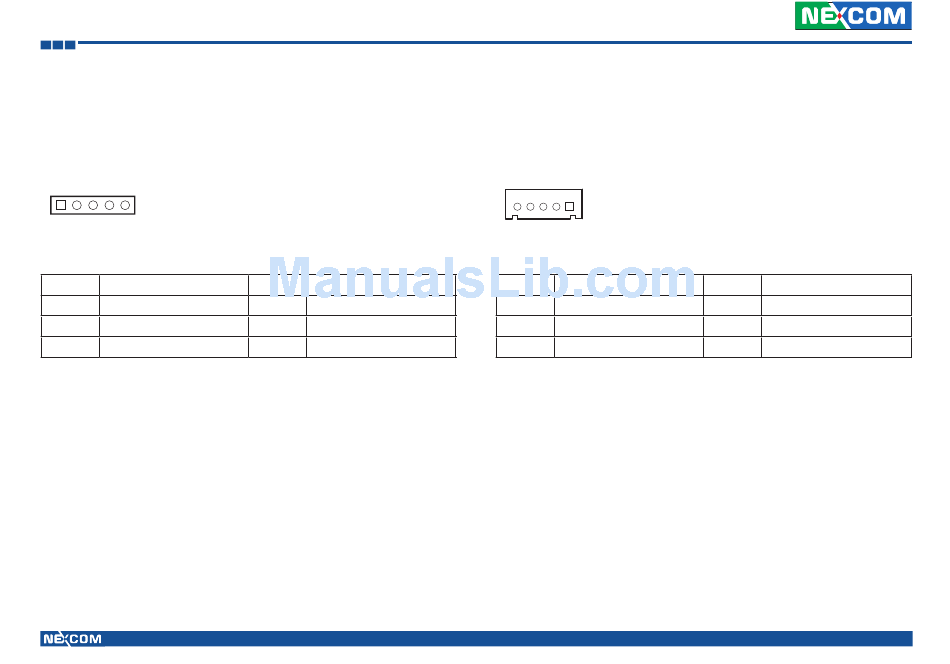

Chapter 5: Jumpers and Connectors for VMC 4000 Series
MCU Programmer Pin Header
Connector size: 1x6 6-pin header
Connector location: JP7
1
5
Pin
Definition
1
+3.3ALW
3
MRST
5
GND
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin
Definition
2
C2D
4
C2CK
Panel Driver Board Connector
Connector size: 1x5 5-pin header, 2.0mm pitch
Connector location: J9
5
1
Pin
Definition
1
Panel_backlight
3
L_BLK_ADJ
5
L_BLK_EN
65
Pin
Definition
2
GND
4
BLK_ADJ_RE
VMC 3000/4000 Series User Manual
