Installing a New SBC Assembly
To install a new SBC assembly:
1.
Align the edges of the new assembly with the tracks inside the chassis on the right
and left sides.

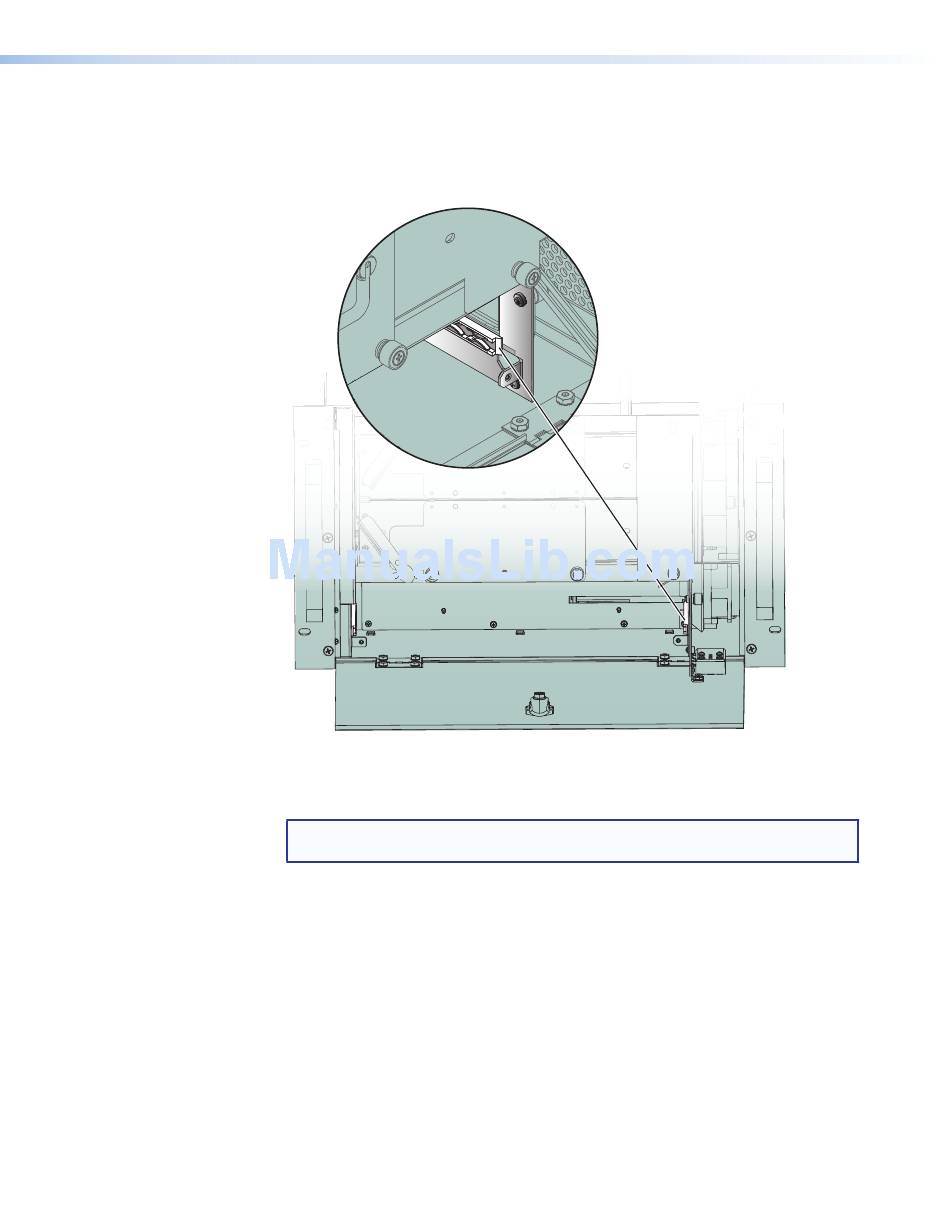

Figure 72.
2.
Slide the assembly into the chassis and press it firmly into place, so that the pins on
the back of the SBC board are plugged into their receptacles on the chassis.
NOTE: The SBC assembly is not completely in place until you hear or feel it snap.
If you do not feel it snap into position, press on it more firmly until you do.
3.
Use a tool to tighten the right and left thumbscrews on the SBC assembly.
4.
Reinstall the hard drives on the SBC assembly (see
page 69).
5.
Power the system back on.
Tracks to Insert the SBC Assembly
Quantum Ultra Videowall Processing System • Maintenance
Replacing a Disk Drive
on
73
