Virtual Network Computing (VNC)

The Quantum Ultra can decode multiple VNC streams from servers loaded on remote
desktops. The VNC streams can originate on the same network used for control or on
a separate network and accessed using the second LAN port available on the Quantum
Ultra.
Desktop resolutions up to 3840x2160 are supported, but the refresh speed of the
desktop content depends on the amount of content moving or changing on the remote
desktop. The size of the VNC window on the Quantum Ultra output and the number of
VNC sources simultaneously displayed also influences the refresh rate of the content.
Below are expected frame rates of a 1920x1080 desktop at various sizes, quantity, and
amount of content in motion:
VNC
Desktop
1920x1080

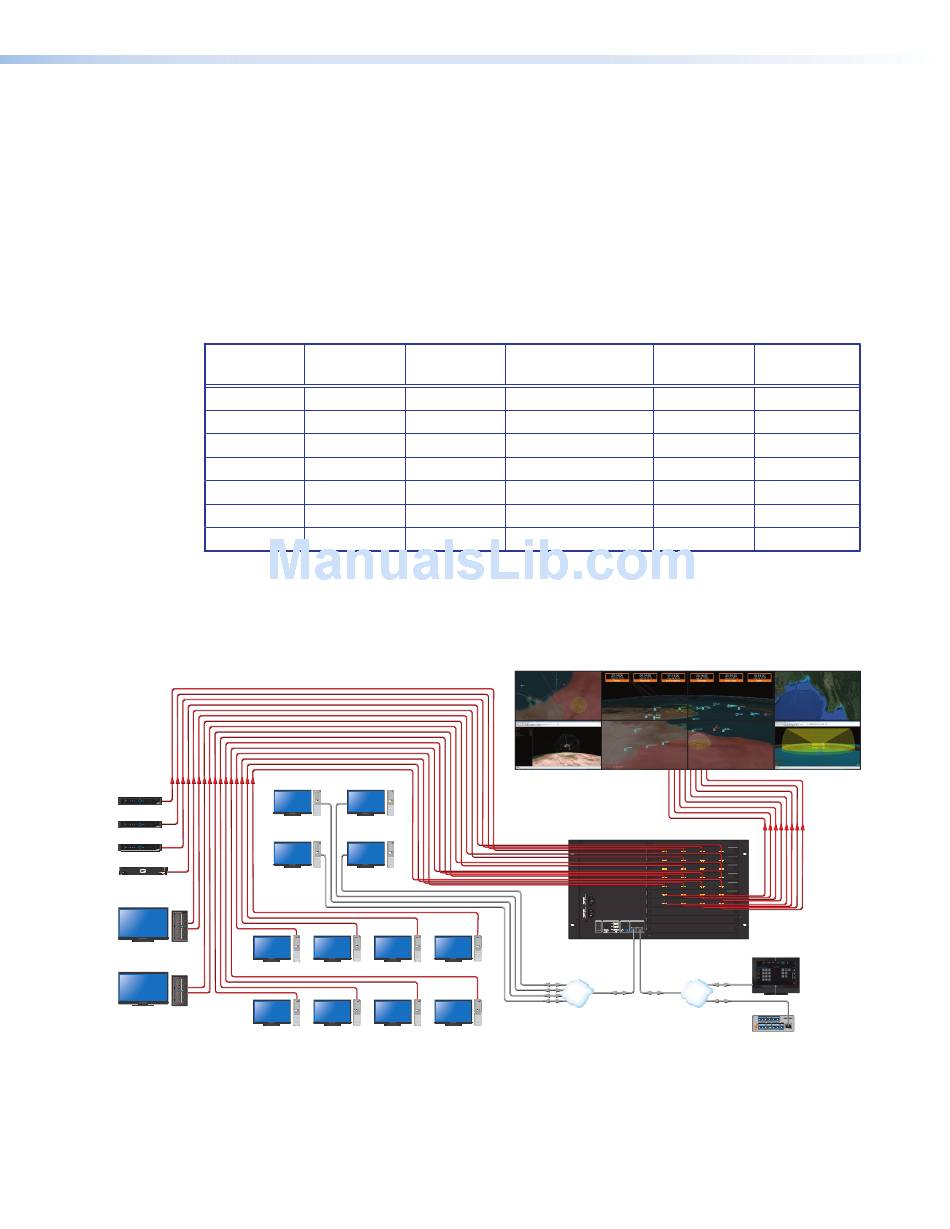

Application Diagrams

The following application diagrams show examples of how the Quantum Ultra can be
connected.
HDMI HDMI
PUSH PUSH
POWER GUIDE MENU RES 480 480p 720p 1080i 1080p DIRECTV HD
SELECT
D I R E C T V
Satellite Receiver
PUSH PUSH
POWER GUIDE MENU RES 480 480p 720p 1080i 1080p DIRECTV HD
D I R E C T V SELECT
Satellite Receiver
PUSH PUSH
DIRECTV HD
POWER GUIDE MENU RES 480 480p 720p 1080i 1080p
D I R E C T V SELECT
Satellite Receiver
1
Media Player
4K/60 Map Server
Workstation PC
4K/60 Map Server
Workstation PC
Figure 1.
Window Number of
Size Windows
3840x2160 1
3840x2160 1
1920x1080 1
1920x1080 1
1920x1080 16
1920x1080 16
960x540 64
WiFi 1 2 3 4 WiFi 1 2 3 4
Remote Remote
Workstation PC Workstation PC
with VNC with VNC
WiFi 1 2 3 4 WiFi 1 2 3 4
Remote Remote
Workstation PC Workstation PC
with VNC with VNC
WiFi 1 2 3 4 WiFi 1 2 3 4 WiFi 1 2 3 4
Workstation PC Workstation PC Workstation PC
WiFi 1 2 3 4 WiFi 1 2 3 4 WiFi 1 2 3 4
Workstation PC Workstation PC Workstation PC
Connection Diagram for a Quantum Ultra
Quantum Ultra Videowall Processing System • Introduction
Amount of Motion
full screen
1/9th desktop
full screen
1/9th desktop
full screen
1/9th desktop
1/9th desktop
Extron
Quantum Ultra
Ultra-high Bandwidth
4K Videowall Processor
QUANTUM ULTRA 610
INPUTS
INPUTS
INPUTS
INPUTS
INPUTS
OUTPUTS
OUTPUTS
POWER SYSTEM REMOTE LAN
DISCONNECT POWER
CORD BEFORE
SERVICING
A B
RS-232
CONFIG
Tx Rx G
WiFi 1 2 3 4
Ethernet
Ethernet
Media
VLAN
WiFi 1 2 3 4
Ethernet
Average Network
Frame Rate Usage
5 fps 360 Mbps
20 fps 190 Mbps
5 fps 360 Mbps
30 fps 400 Mbps
0.5 fps 600 Mbps
2 fps 550 Mbps
1 fps 980 Mbps
1080p HDMI 1080p HDMI
QUANTUM IN4HDMI
1 2 3 4
QUANTUM IN4HDMI
1 2 3 4
QUANTUM IN4HDMI
1 2 3 4
QUANTUM IN4HDMI
1 2 3 4
QUANTUM IN4HDMI
1 2 3 4
QUANTUM OUT4HDMI
1 2 3 4
QUANTUM OUT4HDMI
1 2 3 4
Extron
TLP Pro 1022T
10" Tabletop
TouchLink Pro
Ethernet
Touchpanel
Ethernet
Control
LAN
Ethernet
Extron
COM 1 COM 2 DIGITAL I/O IPCP PRO 250
IPCP Pro 250
Tx Rx G RTS CTS Tx Rx G 1 2 3 4 G
POWER VOL RELAYS eBUS IR/S
12V
--A MAX V C G 1 2 C +V +S -S G
IP Link Control Processor
PWR OUT = 6W S G LAN
6
