3.

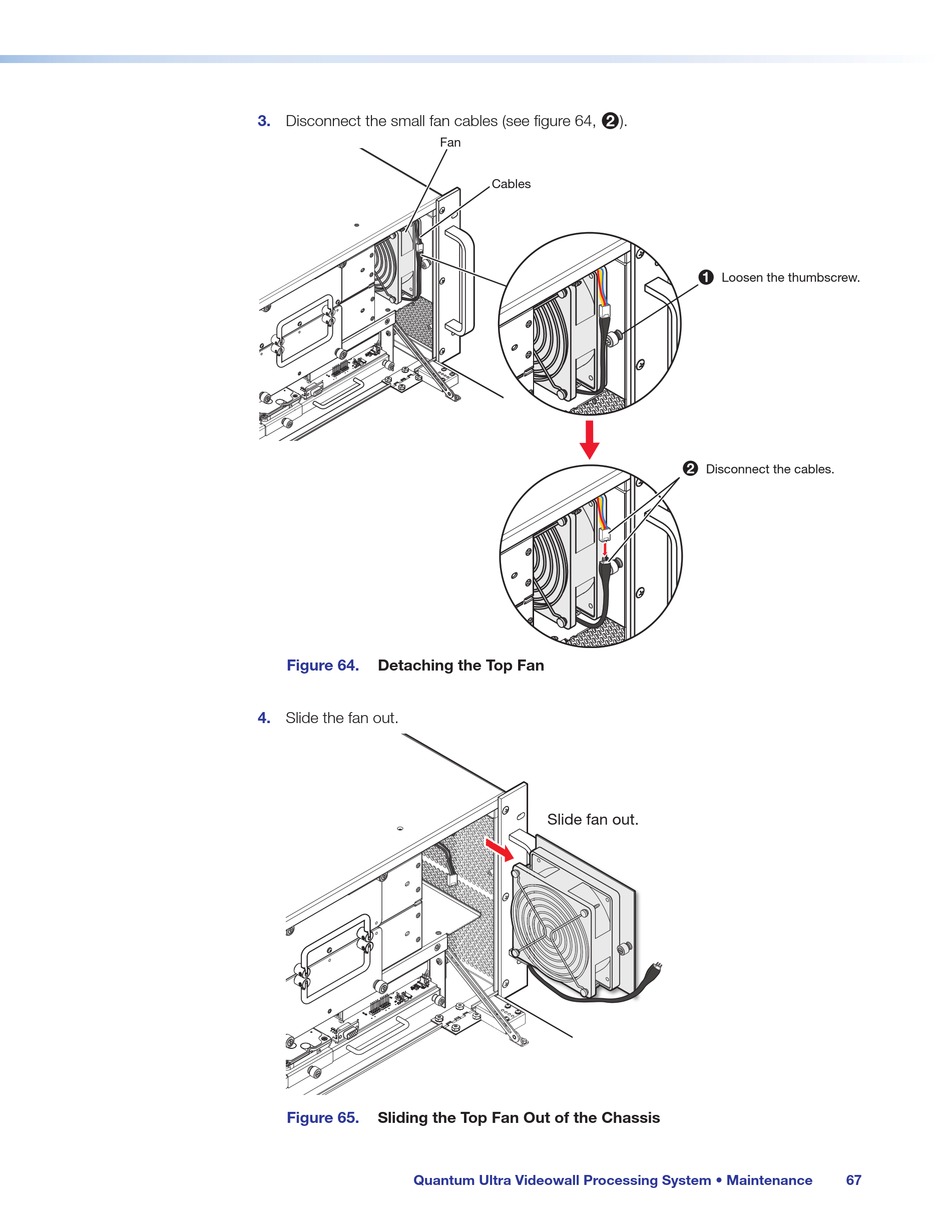

Disconnect the small fan cables (see figure 64,
Figure 64.
Detaching the Top Fan
4.
Slide the fan out.
Figure 65.
Sliding the Top Fan Out of the Chassis
Quantum Ultra Videowall Processing System • Maintenance
).
2
Fan
Cables
Slide fan out.
1
Loosen the thumbscrew.
2
Disconnect the cables.
67
