Replacing the System Board Computer Assembly

The System Board Computer (SBC) assembly contains the system computer and the two
hard disk drives. This entire assembly can be removed and replaced if necessary.
ATTENTION:

Removing the SBC Assembly

1.
2.
3.
4.
• The SBC assembly is NOT hot-swappable and cannot be switched while the unit
is operating. Always power off the unit before removing the SBC assembly.
• L'ensemble de composants SBC N'EST PAS interchangeable à chaud et il est
impossible de le changer durant le fonctionnement de l'unité. Mettez toujours
hors tension le Quantum Ultra avant de retirer l'ensemble SBC.
Shut down the unit and disconnect the power.
Remove the two hard drives from the SBC assembly and set them aside. They will be
used with the new assembly (see
Use a tool to loosen the thumbscrews at the right and left edges of the assembly (see
figure 71, ).
1
ATTENTION:
• Thumbscrews should be tightened with a tool after both initial installation and
subsequent access to the panel.
• Les vis doivent être serrées avec un outil adapté après la première installation
et l'accès postérieur au panneau.
NOTE: The thumbscrews cannot be removed completely.
Pull the handle on the SBC (

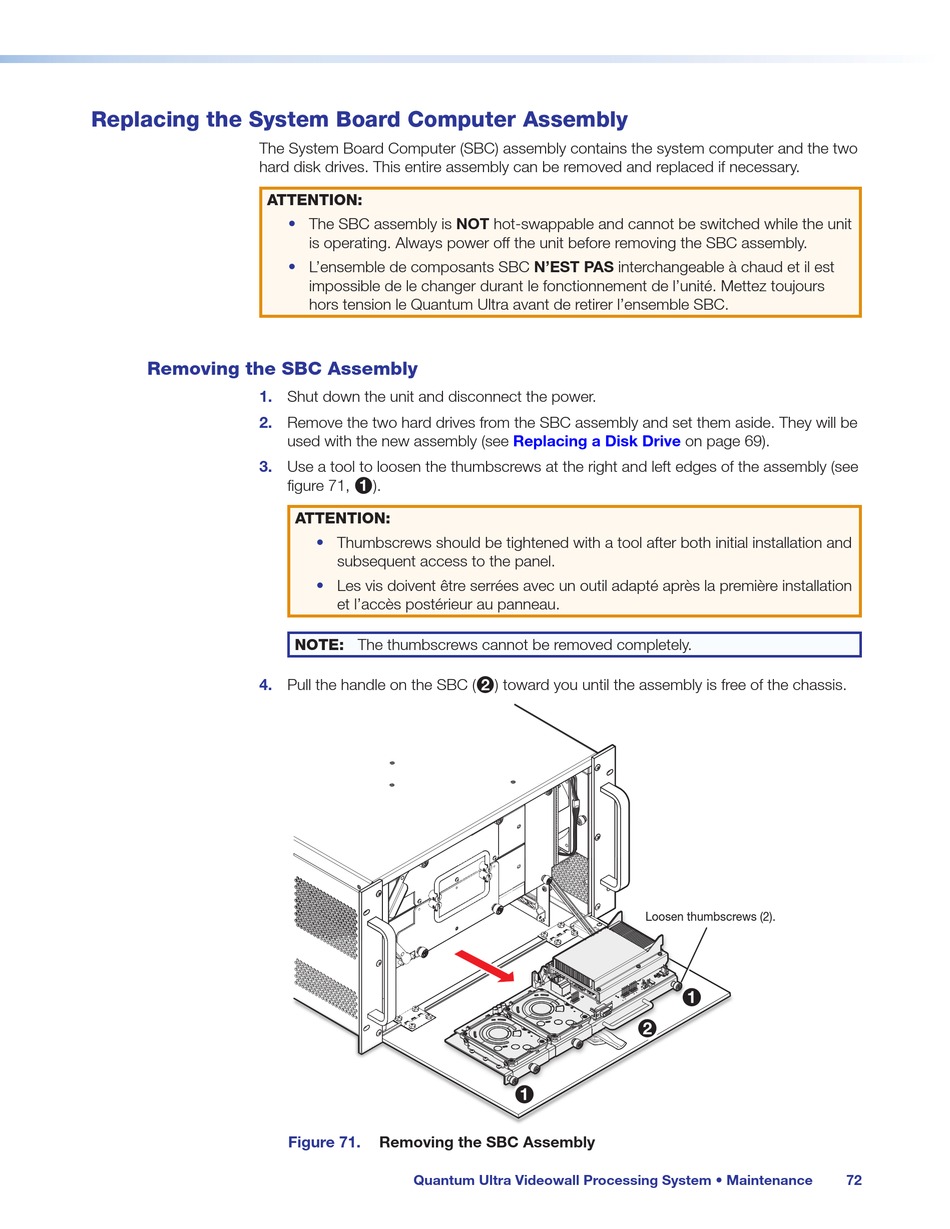

Figure 71. Removing the SBC Assembly
Quantum Ultra Videowall Processing System • Maintenance
Replacing a Disk Drive
) toward you until the assembly is free of the chassis.
2
Loosen thumbscrews (2).
2 2
1 1
on page 69).
1 1
