Accessing the Front Panel
To access the Quantum Ultra front panel, open the front panel door as follows:
1.
Insert a coin, such as a penny, in the slot on the front panel lock and rotate it one
quarter turn to the left, until the dot above the slot faces
OPEN
OPEN

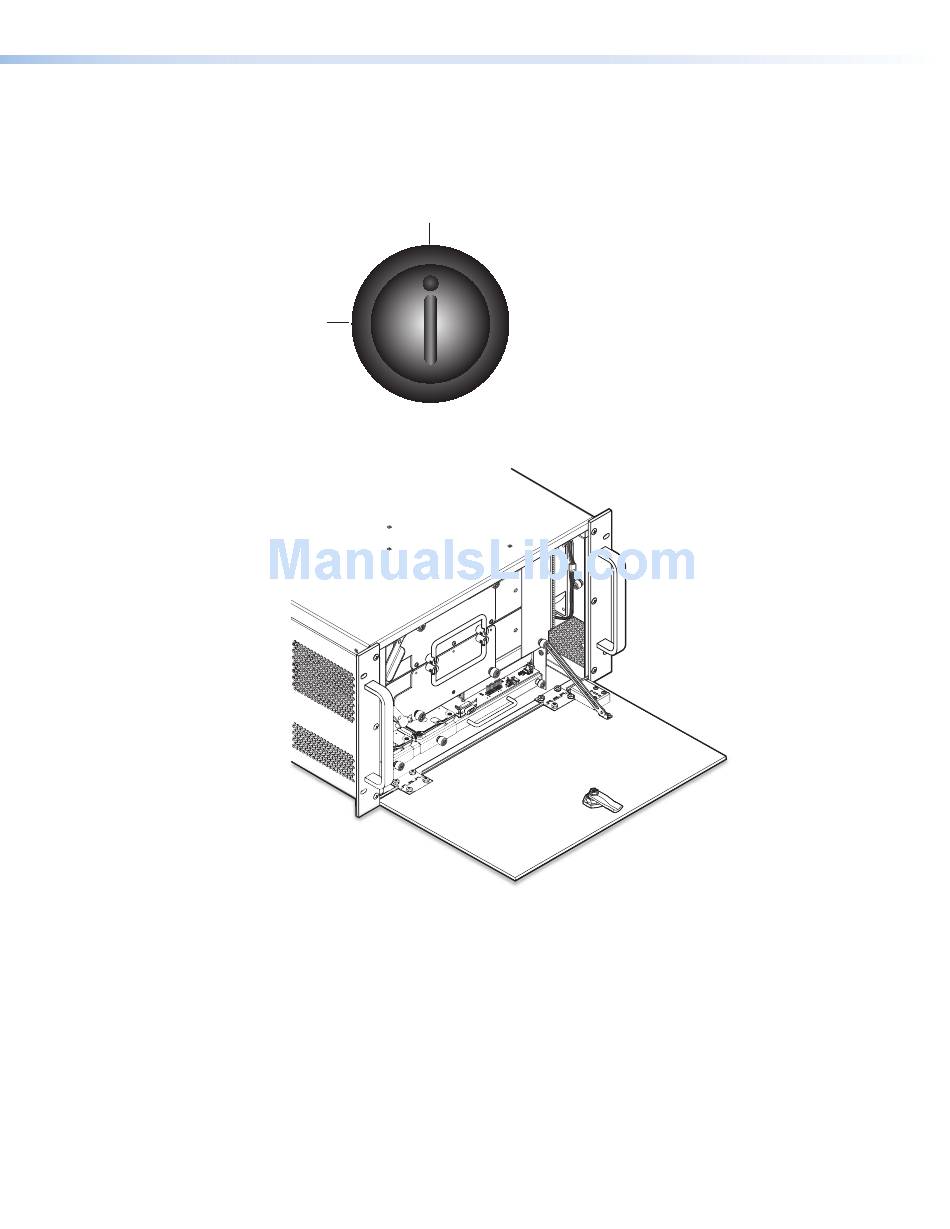

Figure 54.
2.
Pull the front door all the way down.
Figure 55.
3.
When finished with maintenance tasks, lift up the front panel door until it is in place.
4.
Holding the door closed, use a coin to rotate the lock to the right until it is in a vertical
position.
LOCK
LOCK
Front Panel Door Lock
Front Panel Door Open
Quantum Ultra Videowall Processing System • Maintenance
.
Open
59
