Example 2: One rotated 1080p input at 60 Hz applied to one input card
At 60 Hz
At 30 Hz

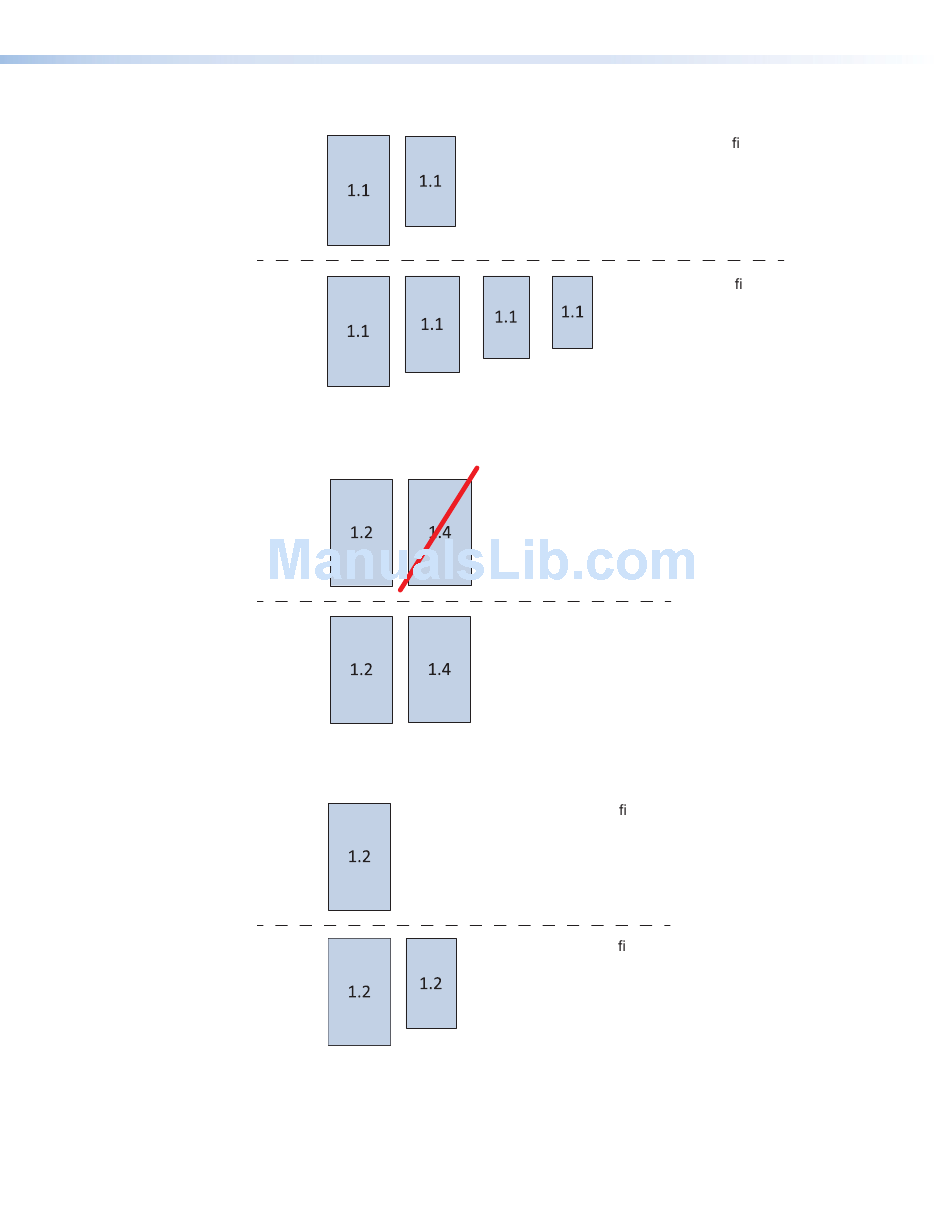

Figure 12. Example of One Rotated 1080p Input, 60 Hz, on One Input Card
Example 3: Two rotated 4K inputs at 30 Hz applied to one input card
At 30 Hz
At 15 Hz
Figure 13. Example of Two Rotated 4K Inputs, 60 Hz, on One Input Card
Example 4: One rotated 4K input at 30 Hz applied to one input card
At 30 Hz
At 15 Hz
Figure 14. Example of One Rotated 4K Input, 30 Hz, on One Input Card
Quantum Ultra Videowall Processing System • Installation
Two unique mini cation
sizes for one source
Four unique mini cation
sizes for one source
One rotated 4K source
can be shown at 30 Hz.
Two rotated 4K sources
can be shown at 15 Hz.
One unique mini cation
size for one source
Two unique mini cation
sizes for one source
